Fokker F.III (English version)

Fokker F.III

Nowadays, one of the arguments for developing a new aircraft is that it becomes too small and the airlines want more capacity.

This was also the case in 1920, although KLM director Albert Plesman was quite satisfied with the F.II, he asked Fokker to develop a larger aircraft than the F.II.

Fokker’s designer Reinhold Platz got started with designing and came up with the F.III with a cabin for 5 passengers. It was equipped with the readily available 185 HP BMW IIIa 6-cylinder in-line engine.

The pilot sat in an open cockpit either to the left or right of the engine, depending on the engine type.

On October 29, 1920, KLM ordered 14 F.III’s. These were equipped with the 6-cylinder air-cooled Armstrong Siddeley Puma in-line engine with 240 HP.

The contract with KLM was signed and the first flight of the F.III took place in April 1921.

During the operational existence of its F.III's, KLM built two aircraft out of the components of earlier crashed aircraft. These two were equipped with the 360 HP Rolls Royce Eagle VIII engines, with the pilot sitting to the left of the engine.

In the autumn of 1921, the F.III, in KLM colors, was one of the highlights at the Paris Aviation Exhibition.

Incidentally, the F.III in question was not from KLM but still owned by the Fokker factory. This F.III later went to the Hungarian airline Malert.

The total F.III production consisted of 66 aircraft, which were built in Schwerin, Germany, in the Veere location of Fokker and in Amsterdam-Noord.

As with the F.II, the F.III was also built under license from Karl Grülich.

Besides KLM in the Netherlands, the F.III has flown with airlines in Denmark, Germany, Hungary, Russia, England, Italy and the USA.

Click on the photo to enlarge the photo

001

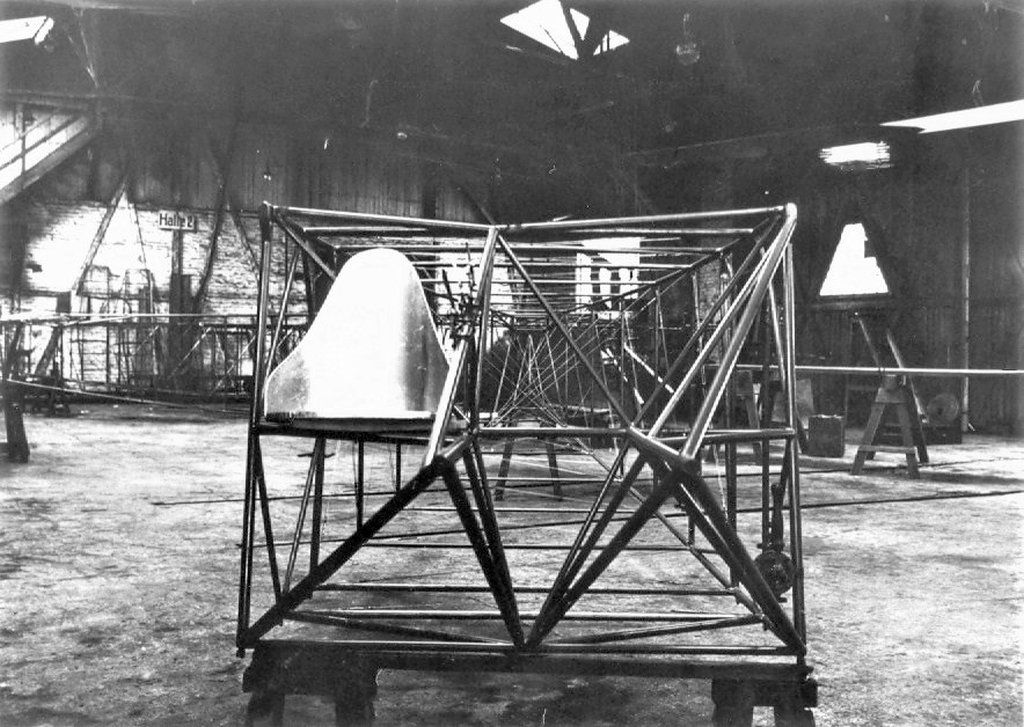

One of the first F.III hulls in Halle 2, in the Fokker factory in Schwerin, on the left the seat in front of the pilot.
Button
002

The Fokker factory in Schwerin still exists to a large extent.
A group of enthusiasts want to restore the factory to its former glory.

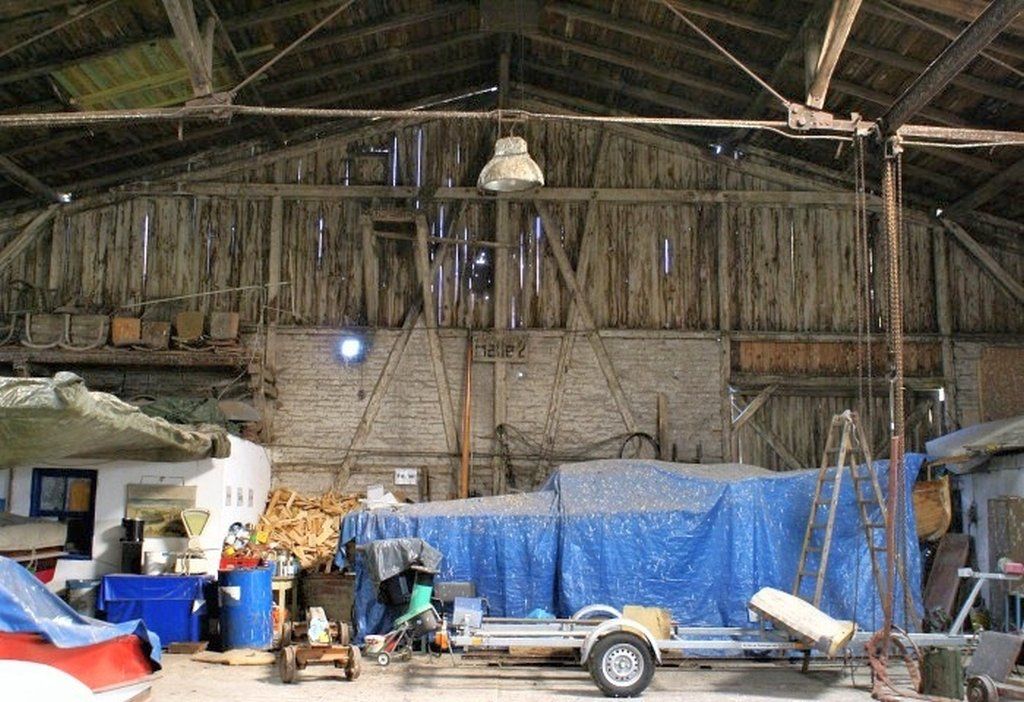

Here the same Halle 2 in 2008.
Button
003

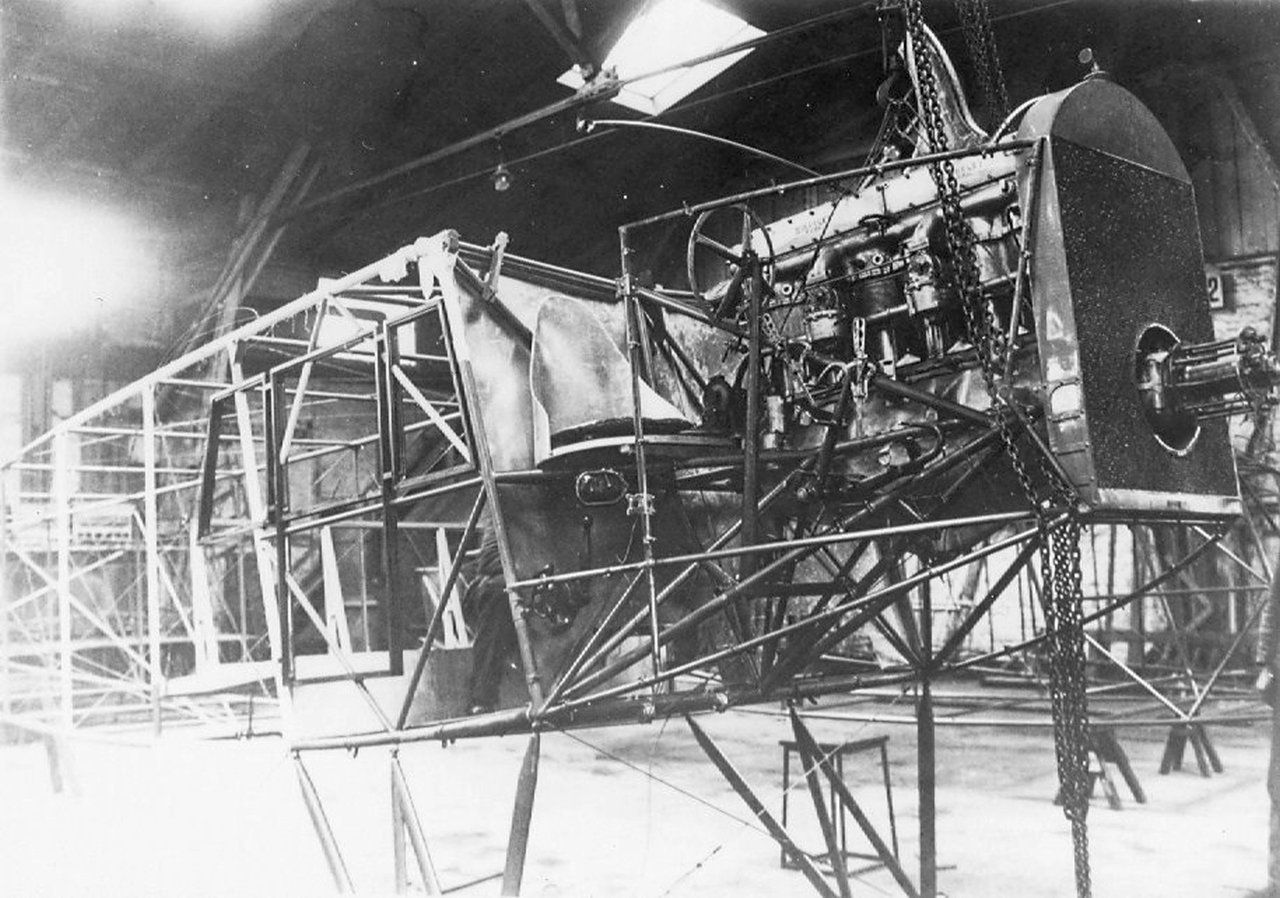

F.III fuselage in the Fokker factory in Schwerin 1919 with BMW engine.
Button
004

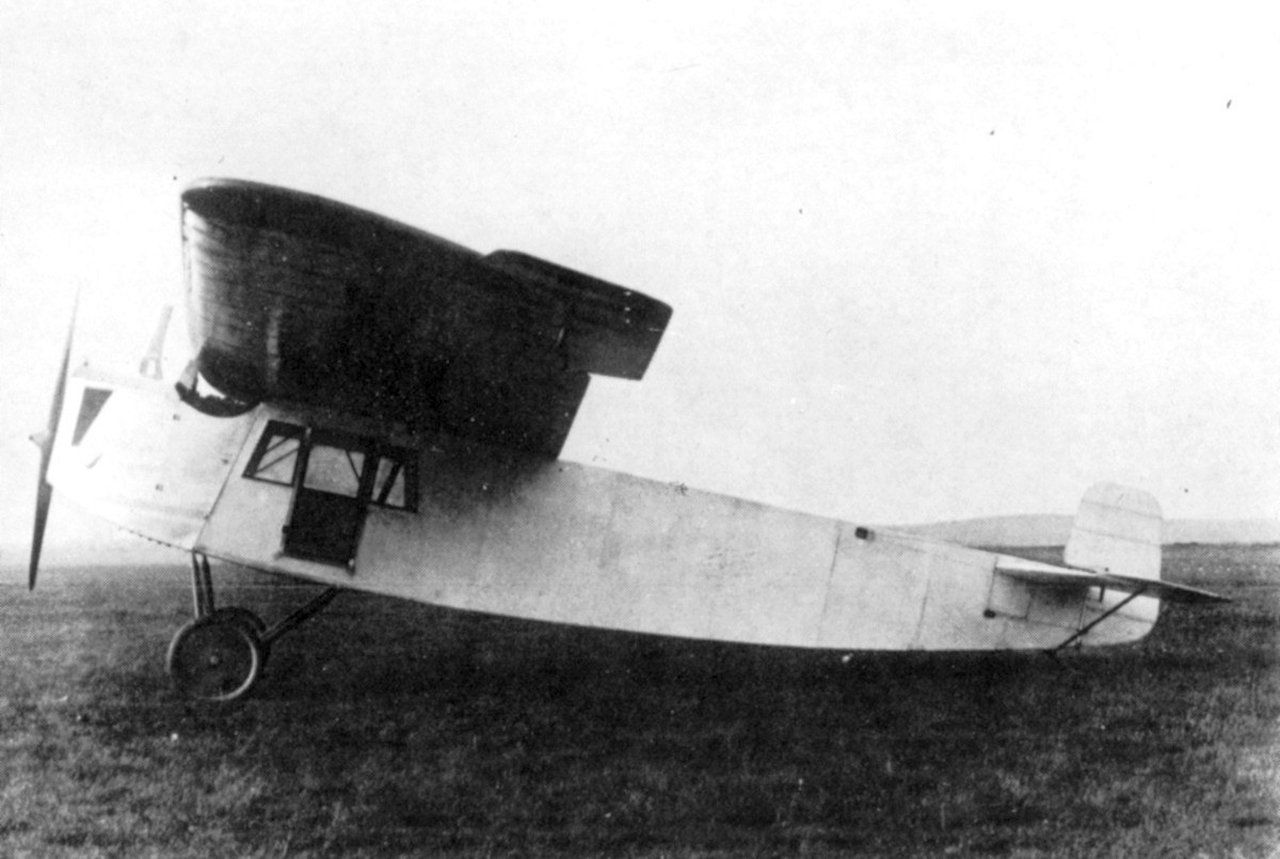

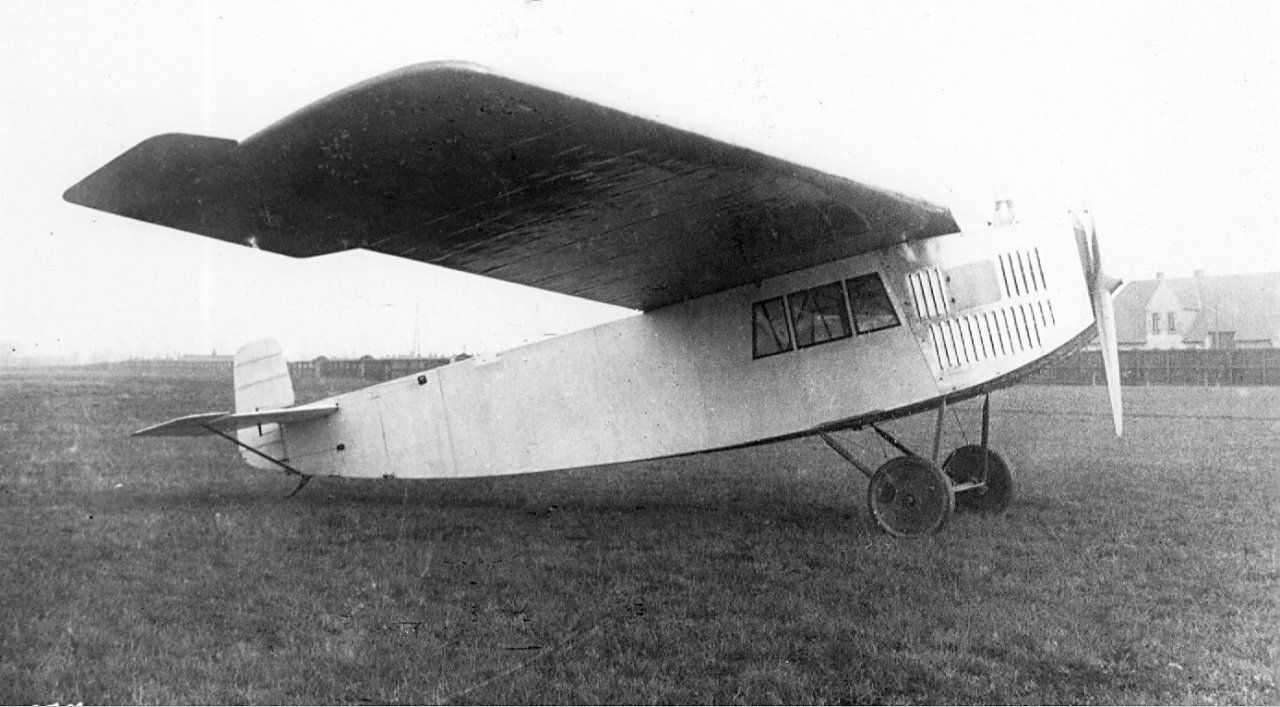

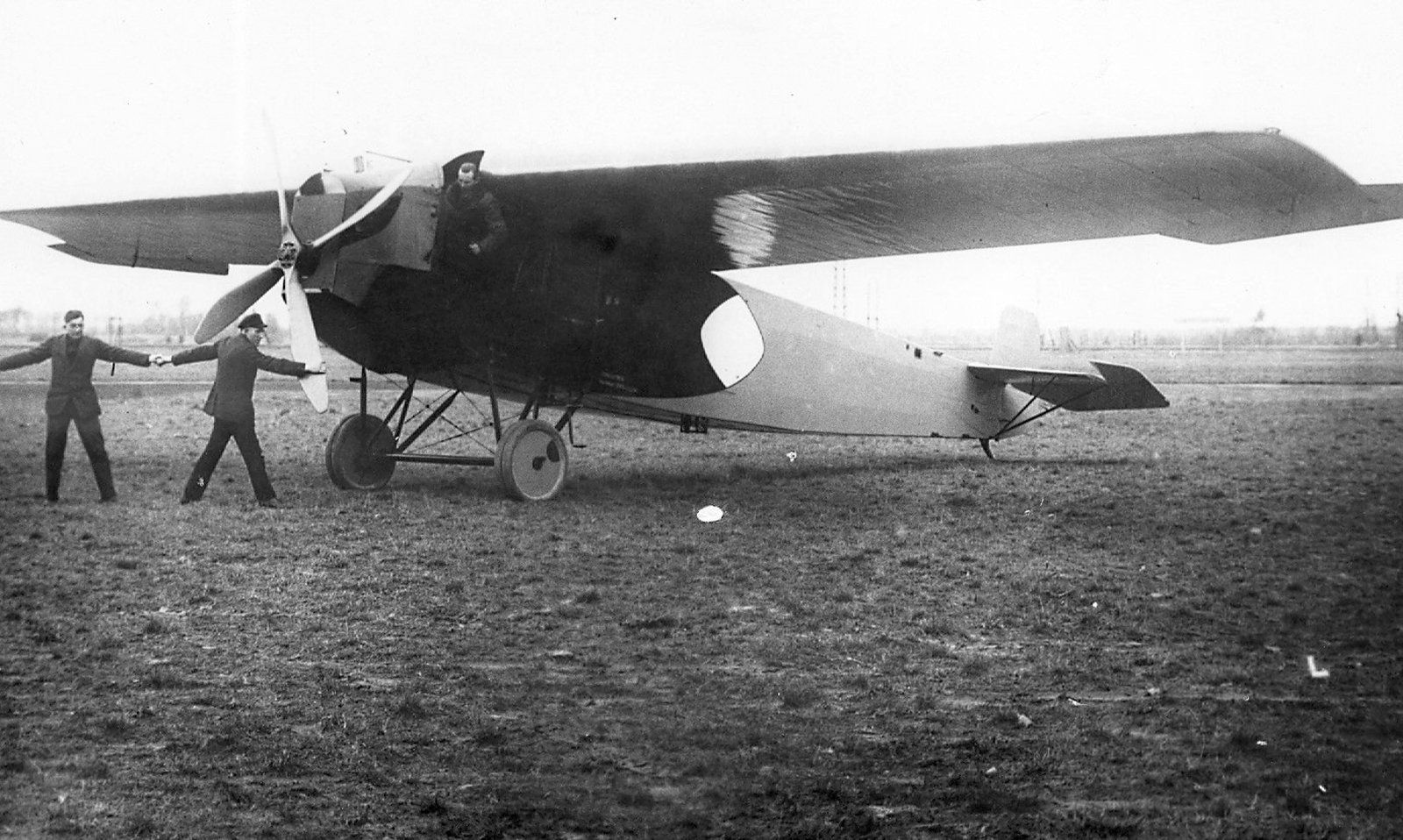

Prototype F.III.
Button
005

Prototype F.III.
Button
006

Prototype F.III with reinforced landing gear including double wheels.
Various exhaust systems were also tested on the F.III.
Here the two exhausts are bent towards each other.
Button
007

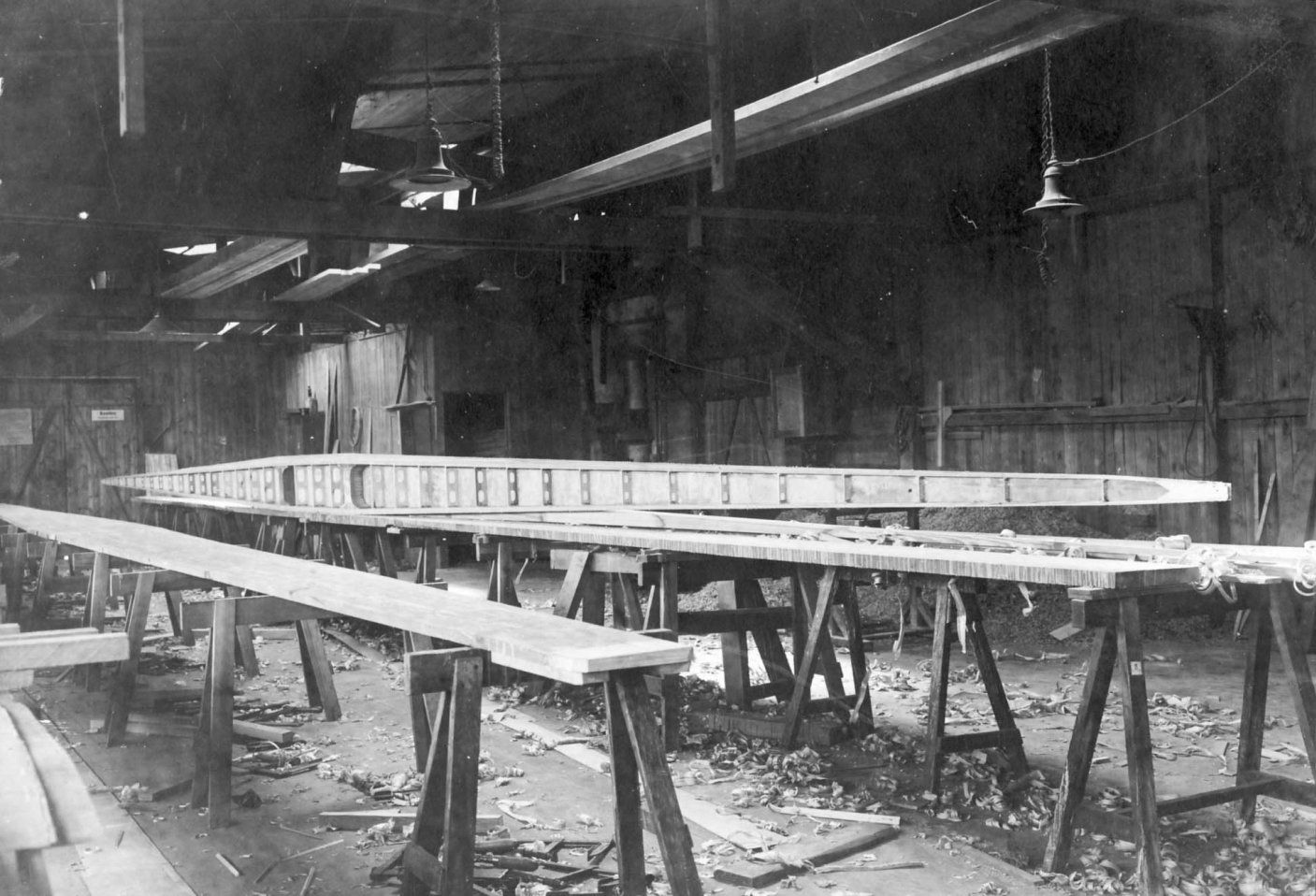

Unfinished wing parts of the F.III.
Button
008

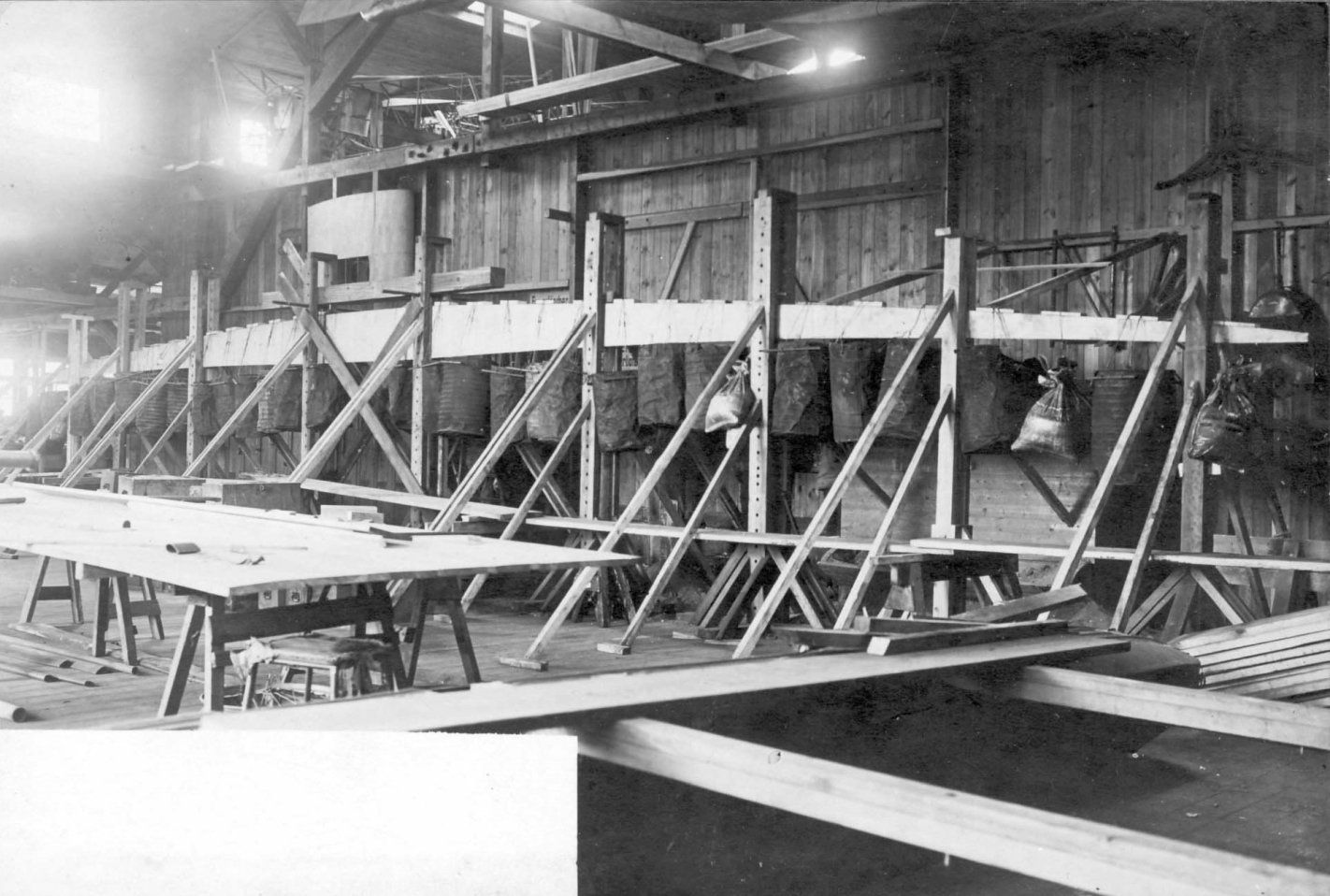

Part of the front wing of the F.III is being statically tested at the RSL which means Government Service for Aeronautical Studies.
Button
009

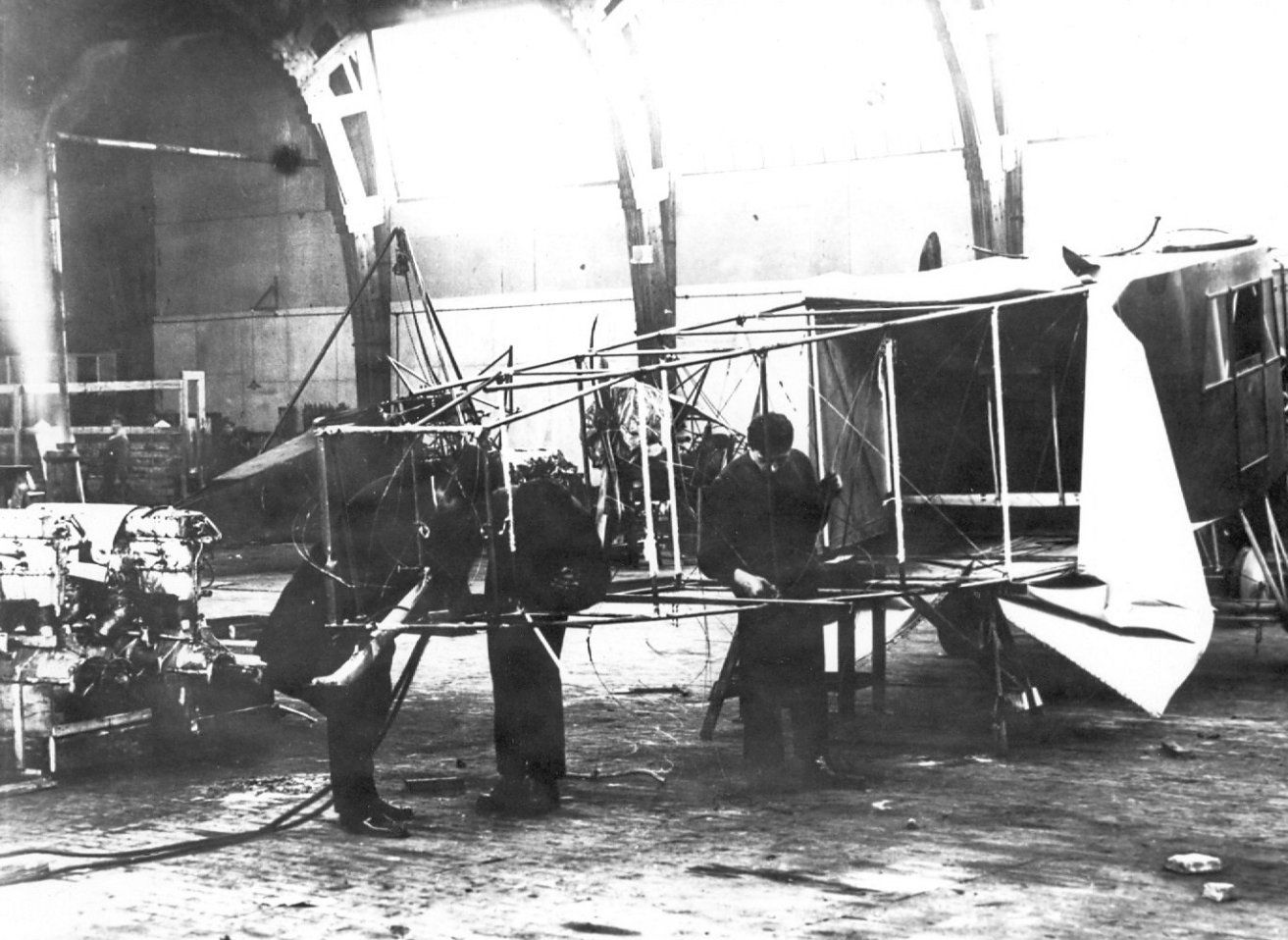

Here the fuselage of the F.III is extended by 80 cm to improve directional stability. However, due to a number of other modifications to the F.III this was no longer necessary and the fuselage retained its original length.
Button
010

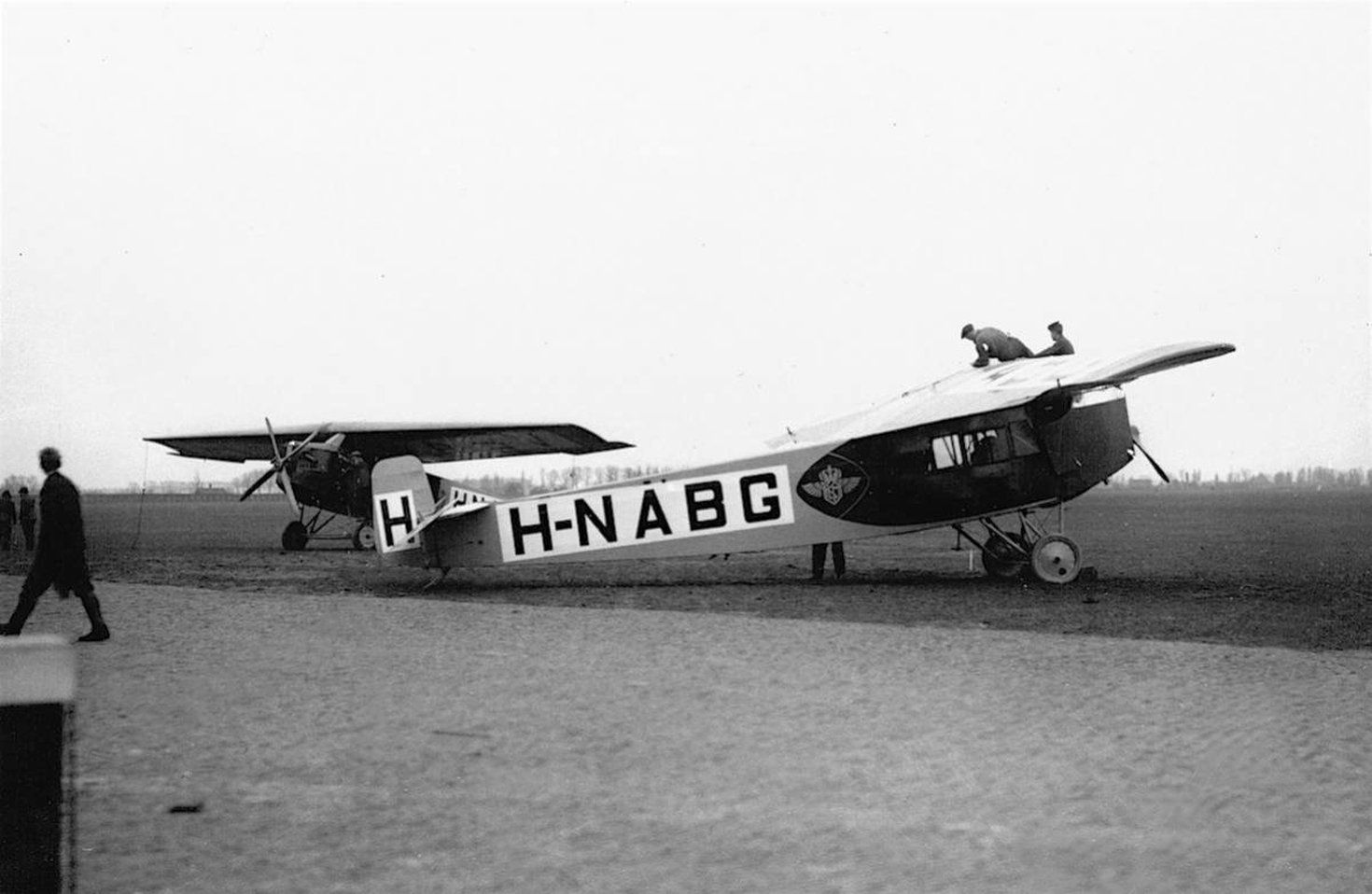

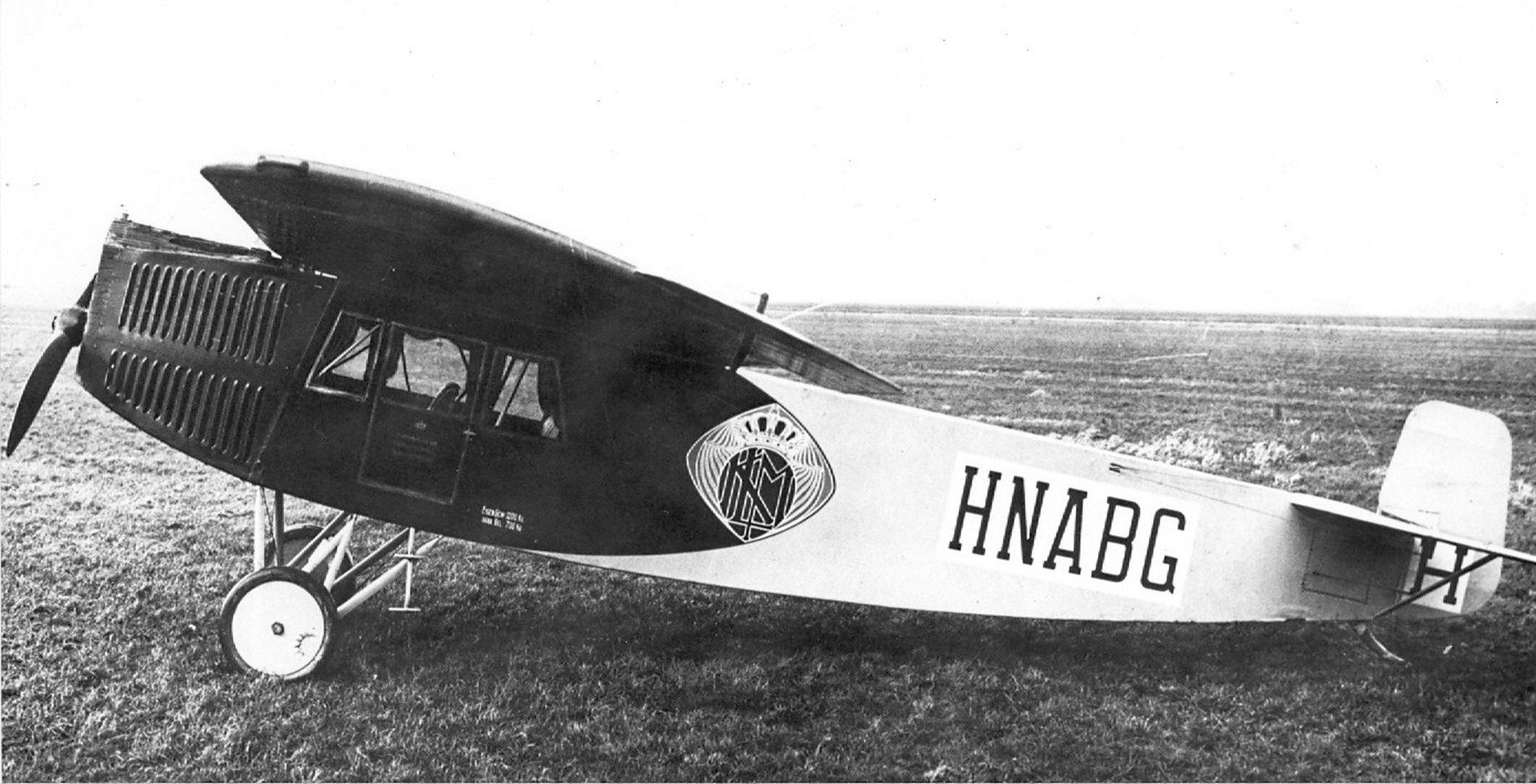

The first F.III for KLM with registration H-NABG (cn 1503).
Button
011

KLM pilots and other interested parties for the KLM H-NABG.
Third from the left is pilot Smirnoff, third from right is pilot Geysendorffer.
Button
012

The KLM HNABG cn 1503, without the hyphen between the H and N!
Button
013

F.III cn 1503 now registered as CH 152 for Balair, Switzerland.
Button
014

Anthony Fokker to the right of the BMW engine in an F.III.
Button
015

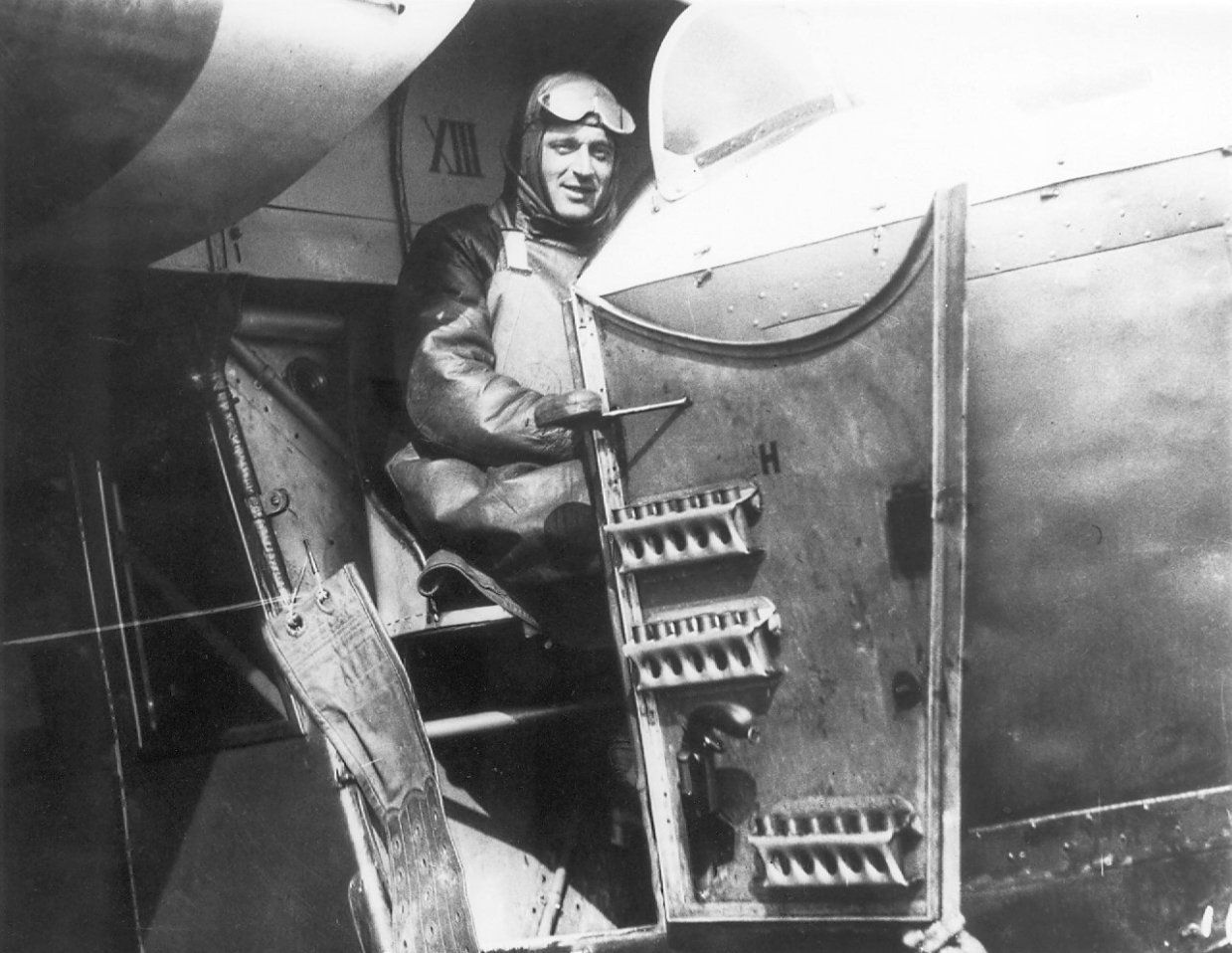

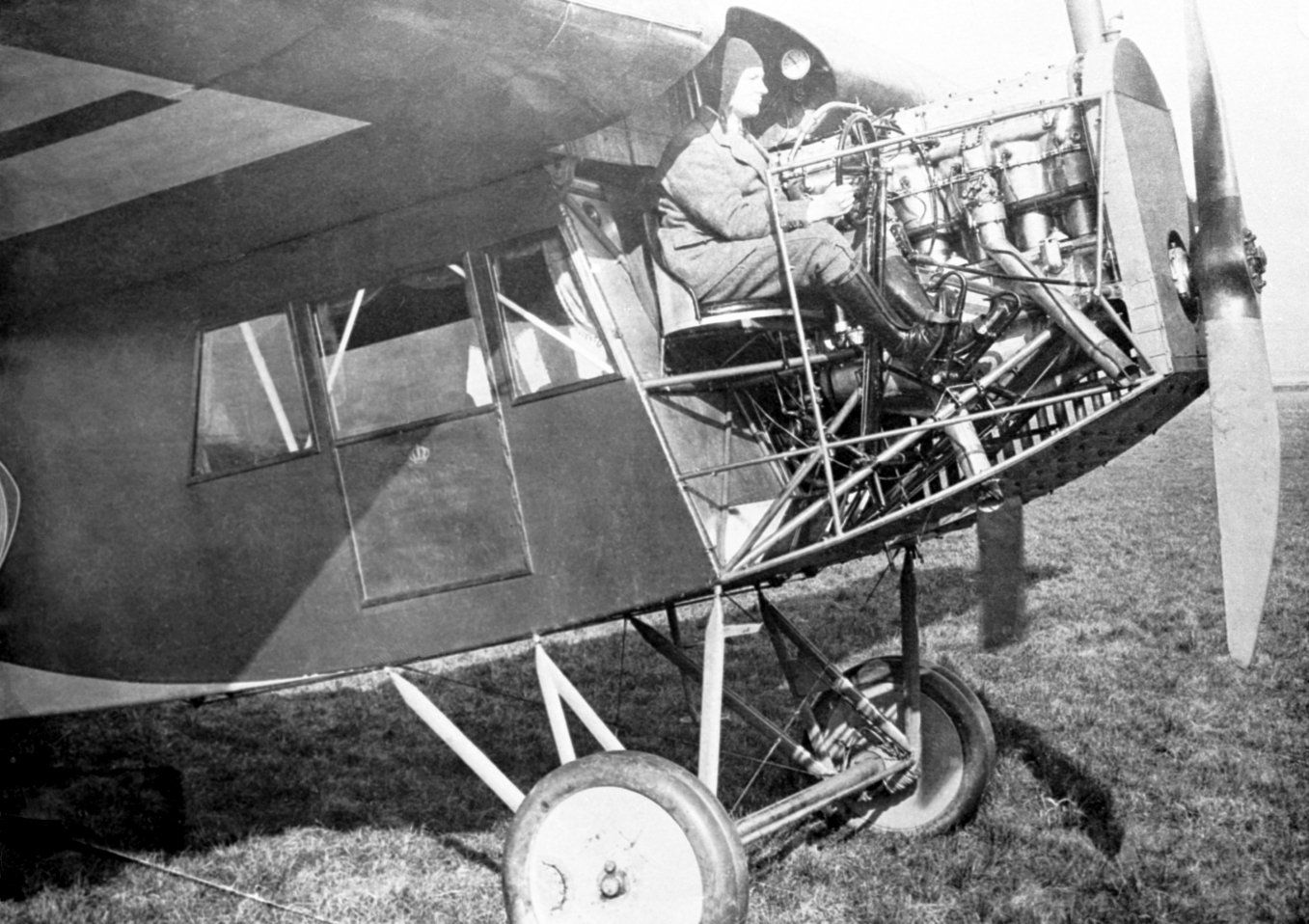

Here you can clearly see that the pilot is sitting in a recess a the wing.
Button
016

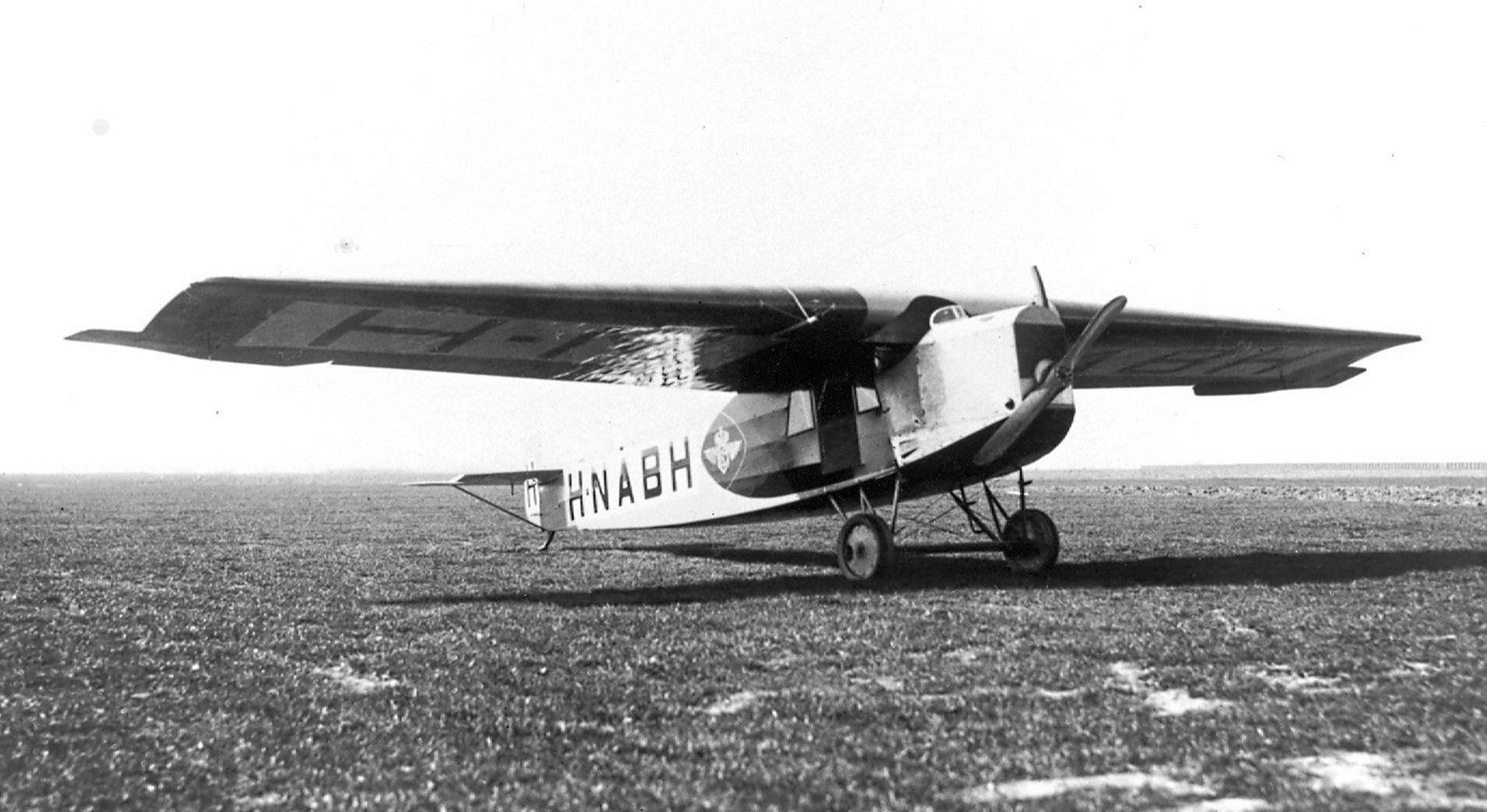

The KLM H-NABH with cn 1504.
Button
017

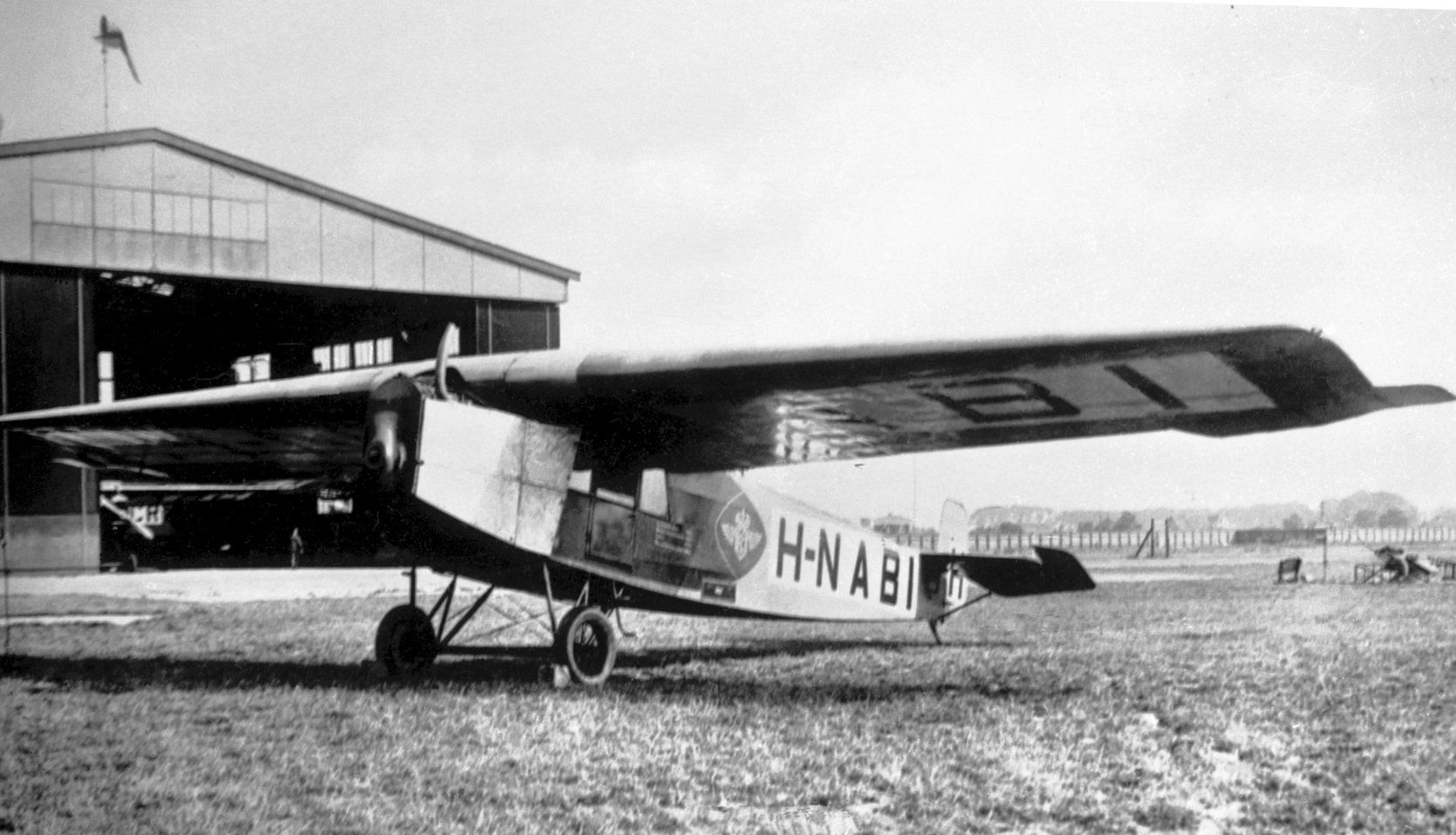

The KLM H-NABI with cn 1505.
Button
018

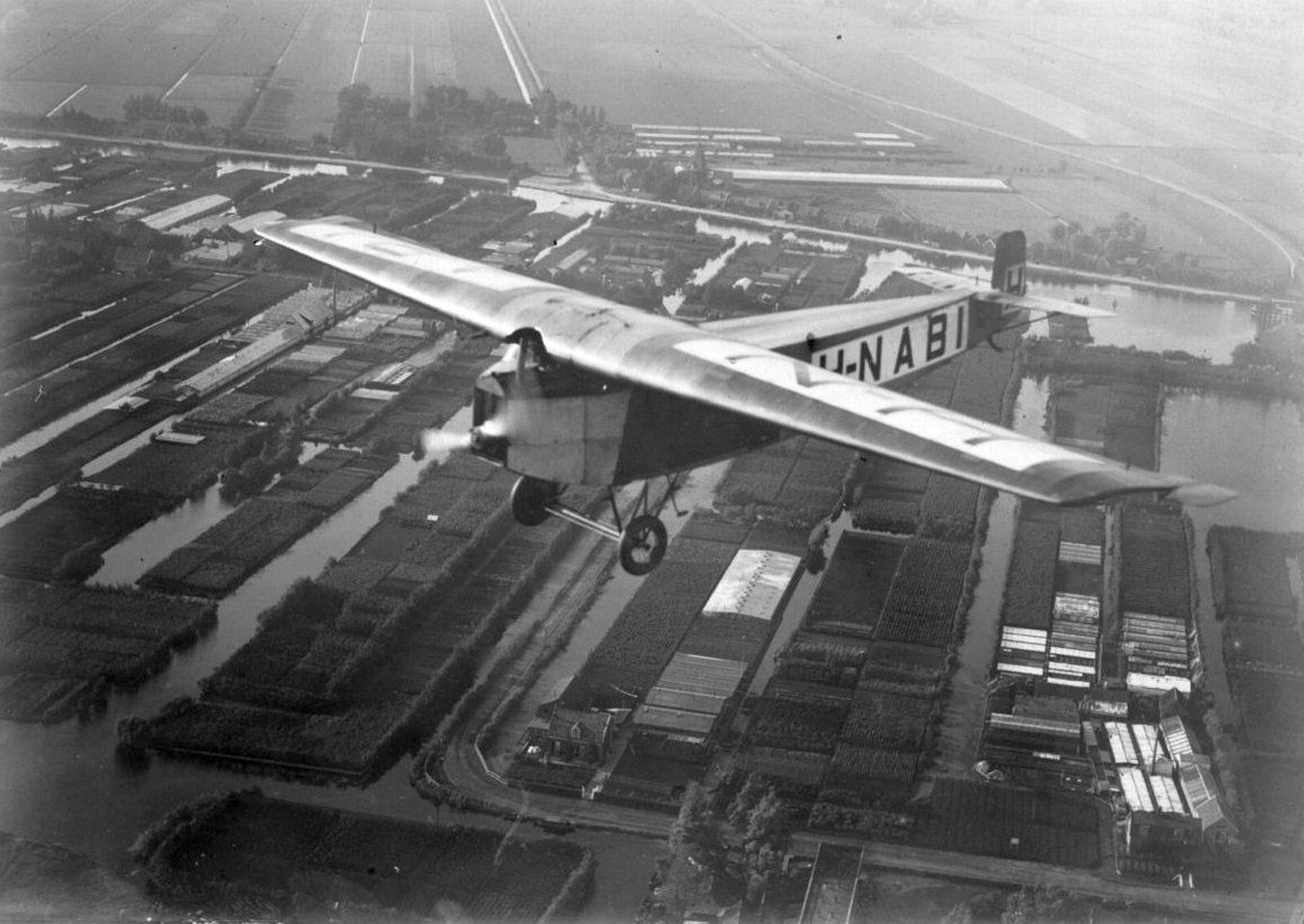

The H-NABI in flight.
Button
019

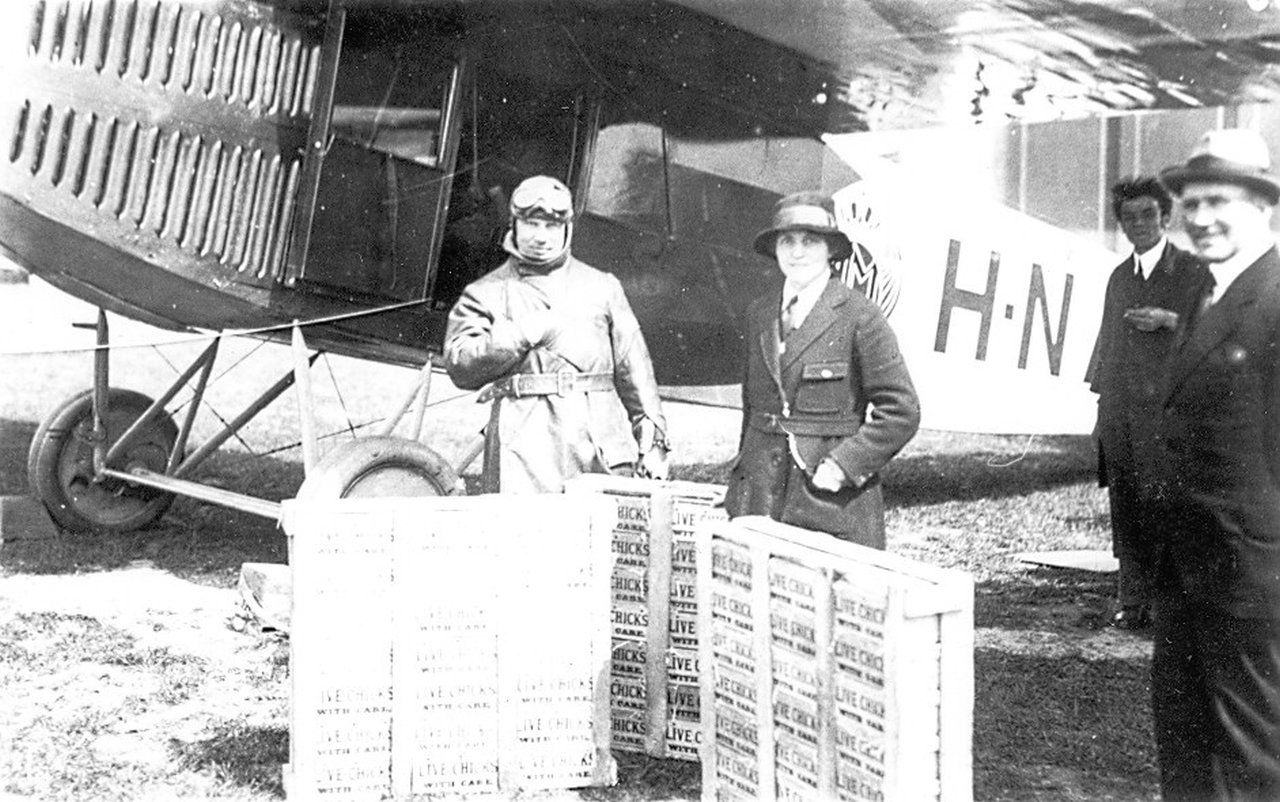

The F.III could also be used for the transportation of cargo.
Here the KLM H-NABI transporting day-old baby chicks.
Button
020

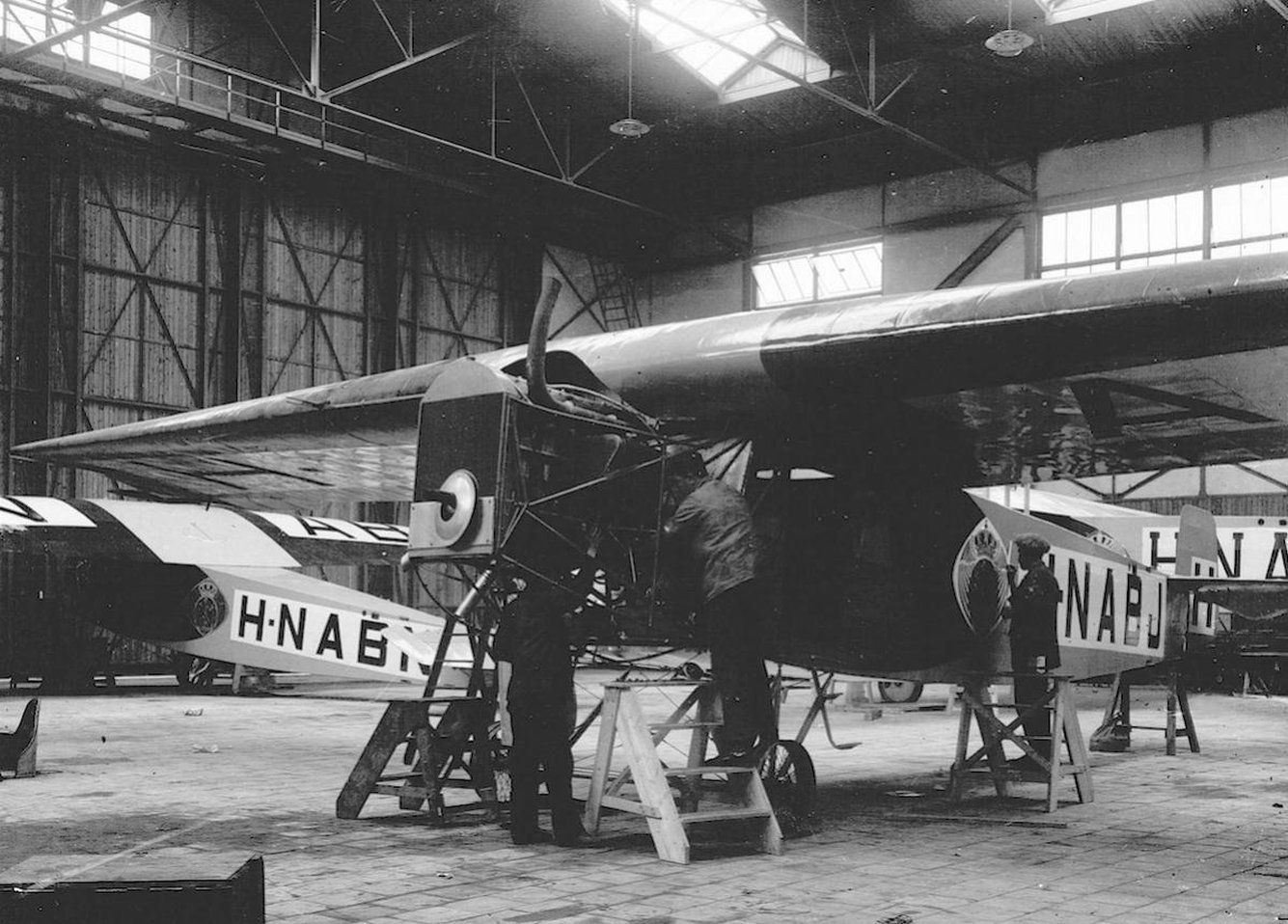

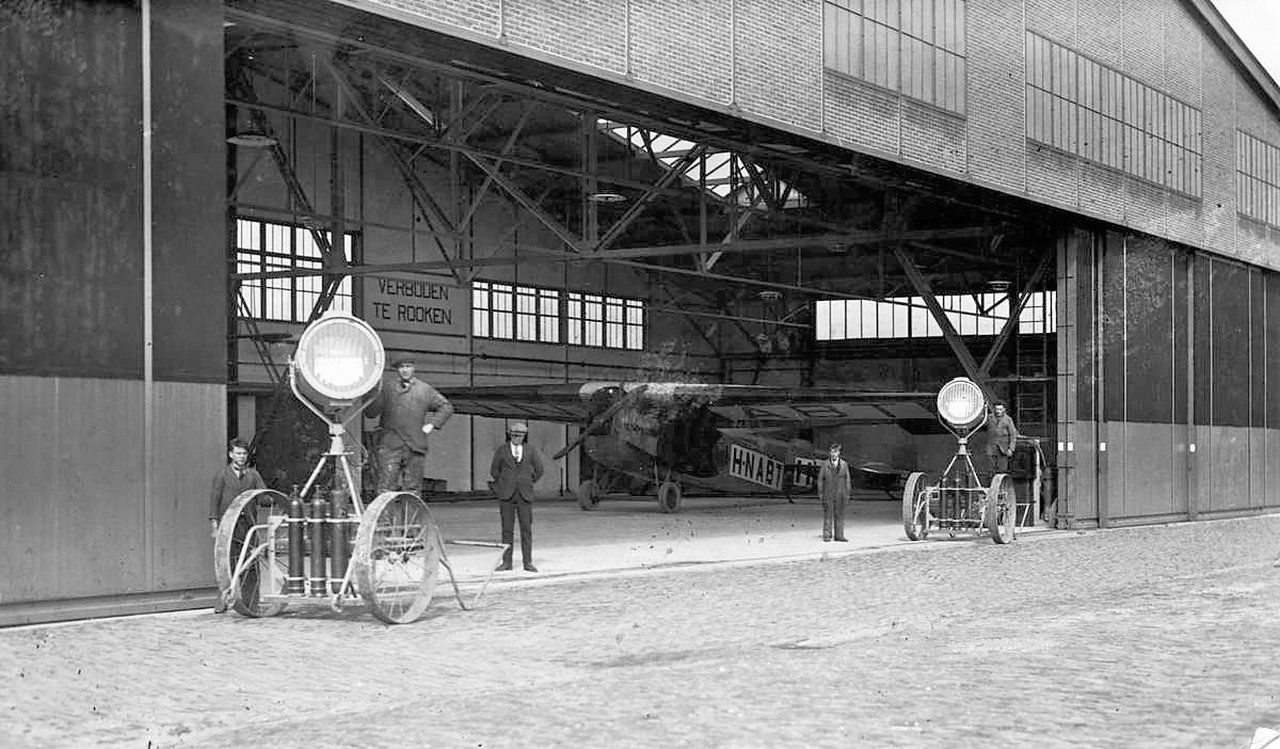

Here the H-NABJ with cn 1506 in the KLM hangar at Waalhaven (Rotterdam Airport).
Button
021

It is unclear why the H-NABJ carried a stabilizer from an F.III on the side of the fuselage.
It seems that the elevators of the stabilizer are attached underneath the fuselage.
Button
022

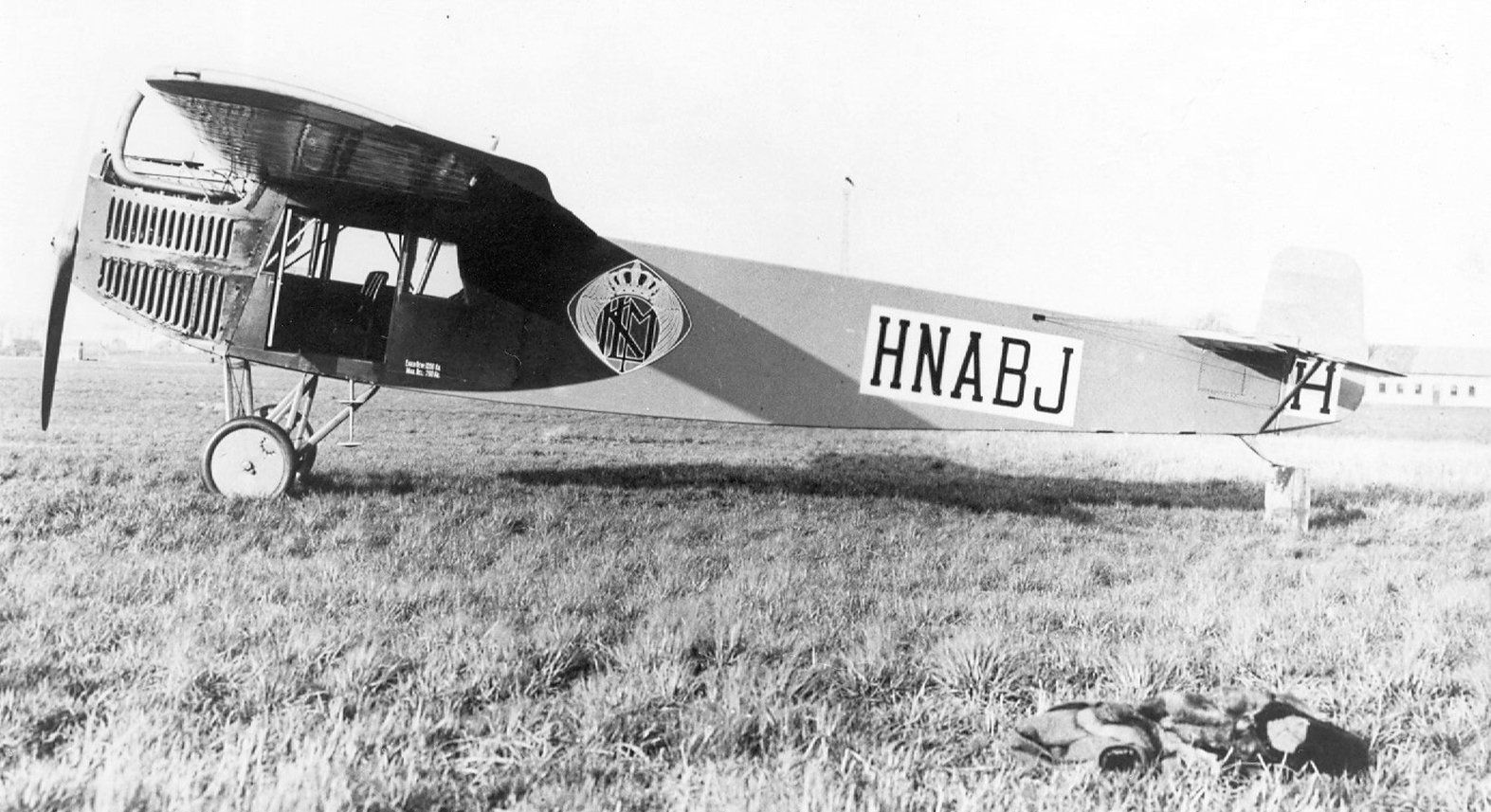

Side view of the HNABJ with cn 1506 with Siddeley Puma engine.
Button
023

Here the F.III (cn 1506) for the Swiss Balair as CH 153.
Button
024

Crash of the CH 153 from Balair.
Button
025

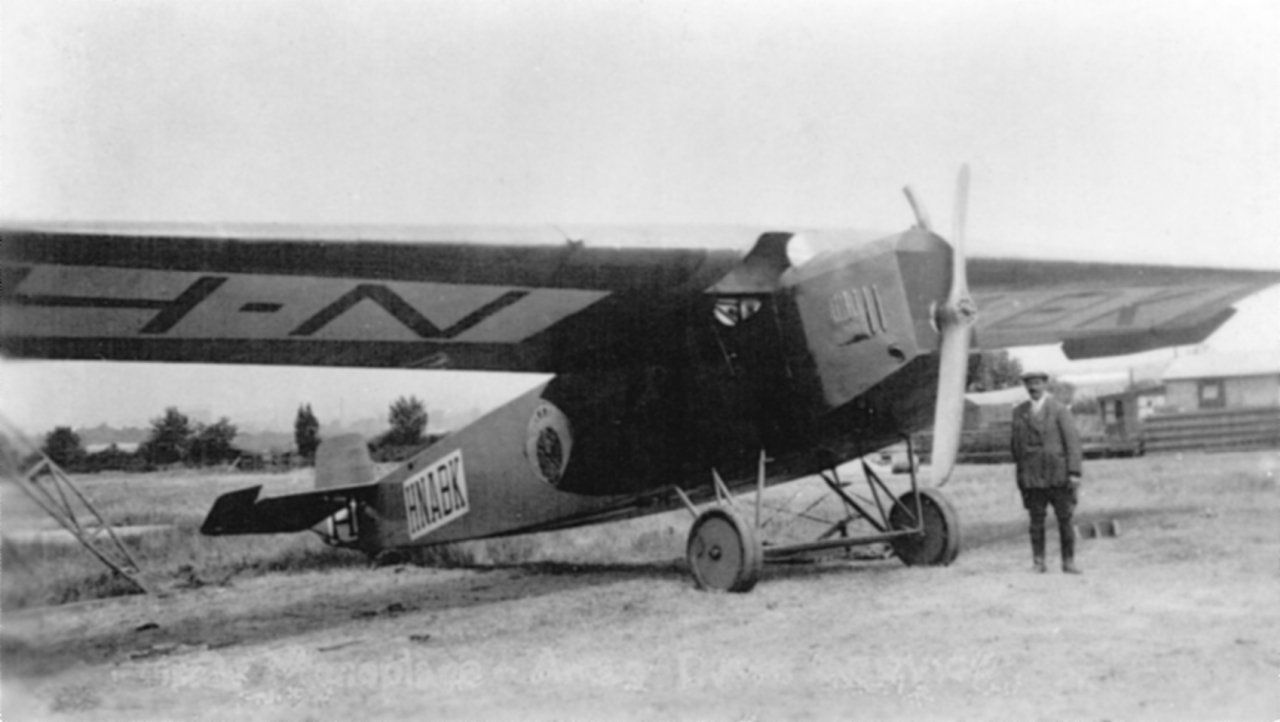

The KLM F.III H-NABK with cn 1507.
Button
026

Rollover of the H-NABK.
Button
027

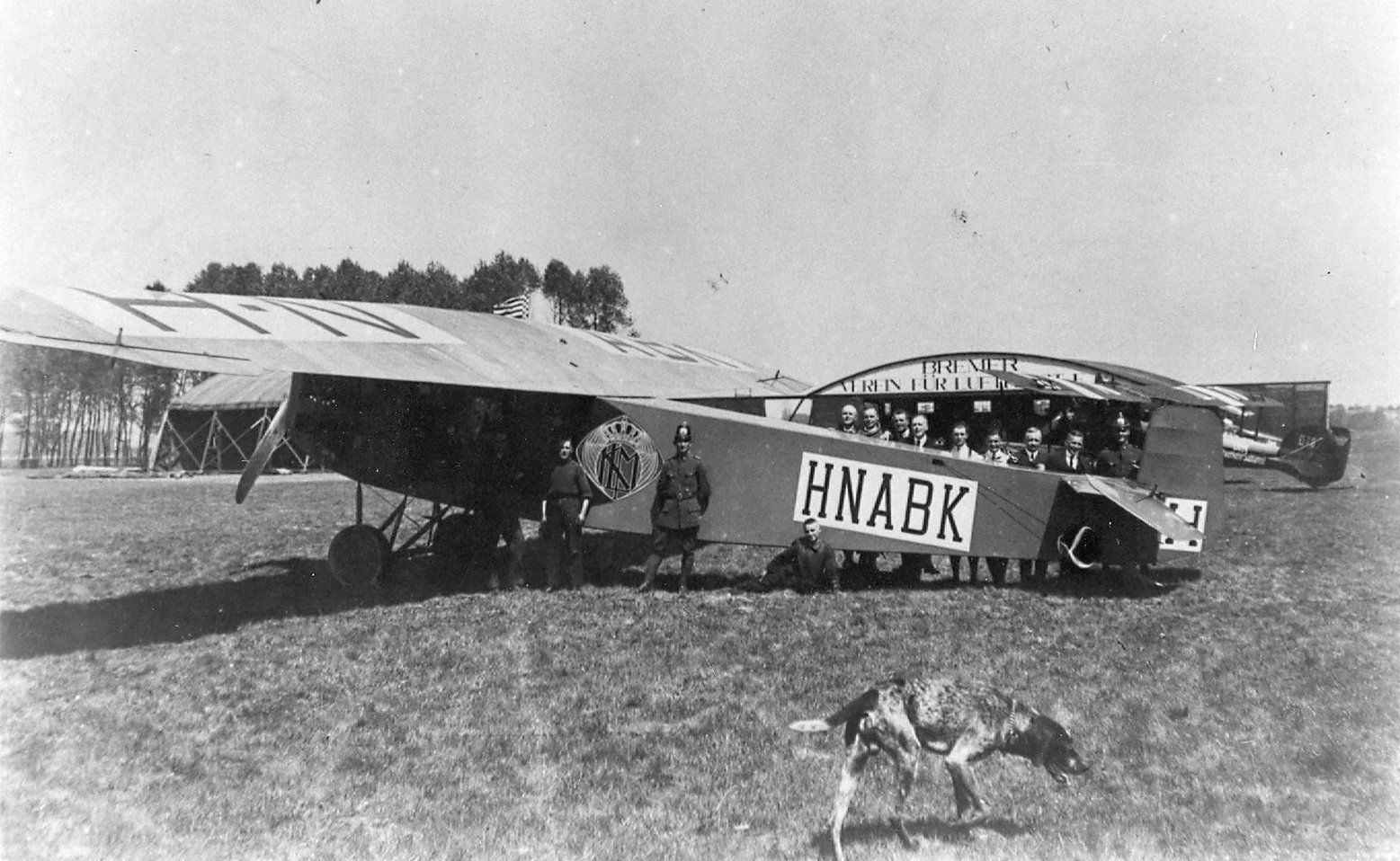

The H-NABK at an airport in Bremen.
Button
028

Here is an example of a luxurious interior of an F.III cabin.
A three-seater leather sofa with two leather chairs, are chained to the floor.
Button
029

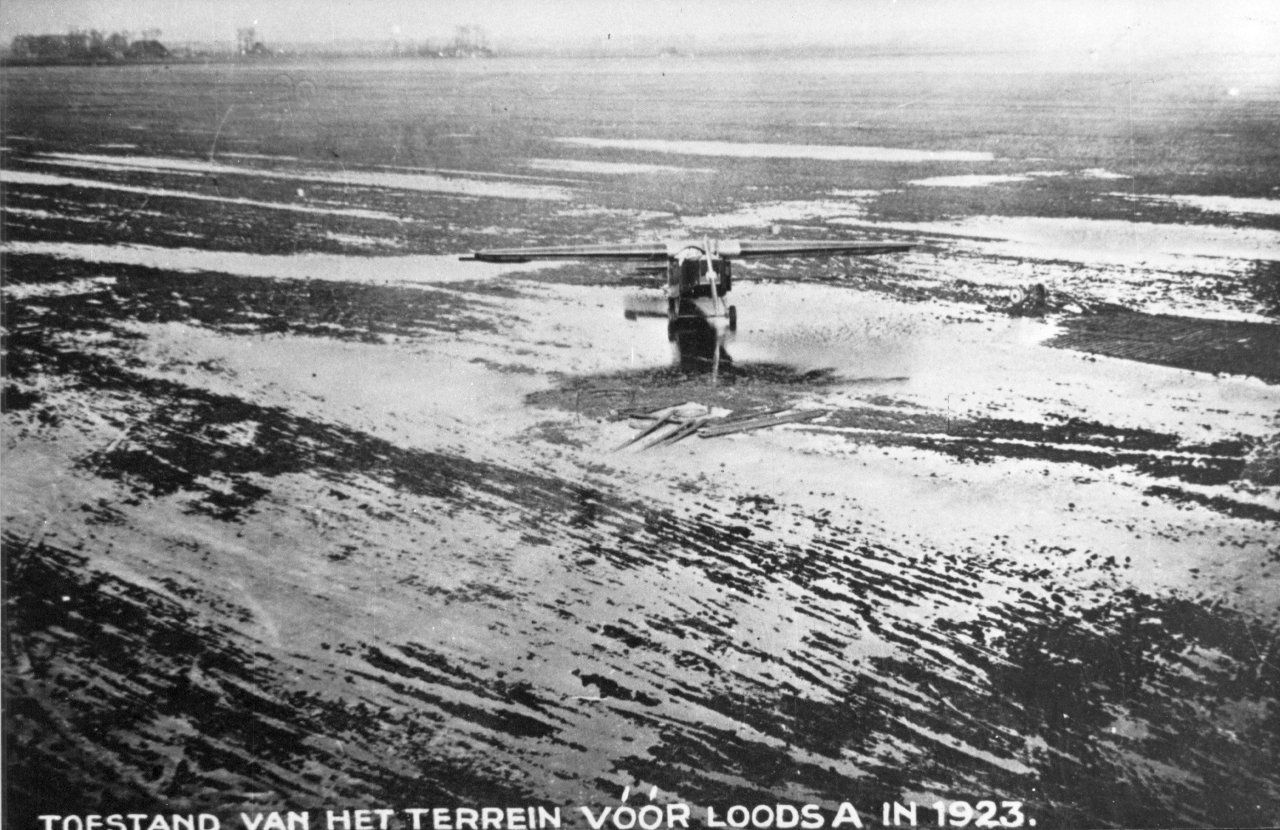

The marshy ground at Schiphol was not always easy to land on or take off from.
This F.III is clearly standing in puddles.
Button
030

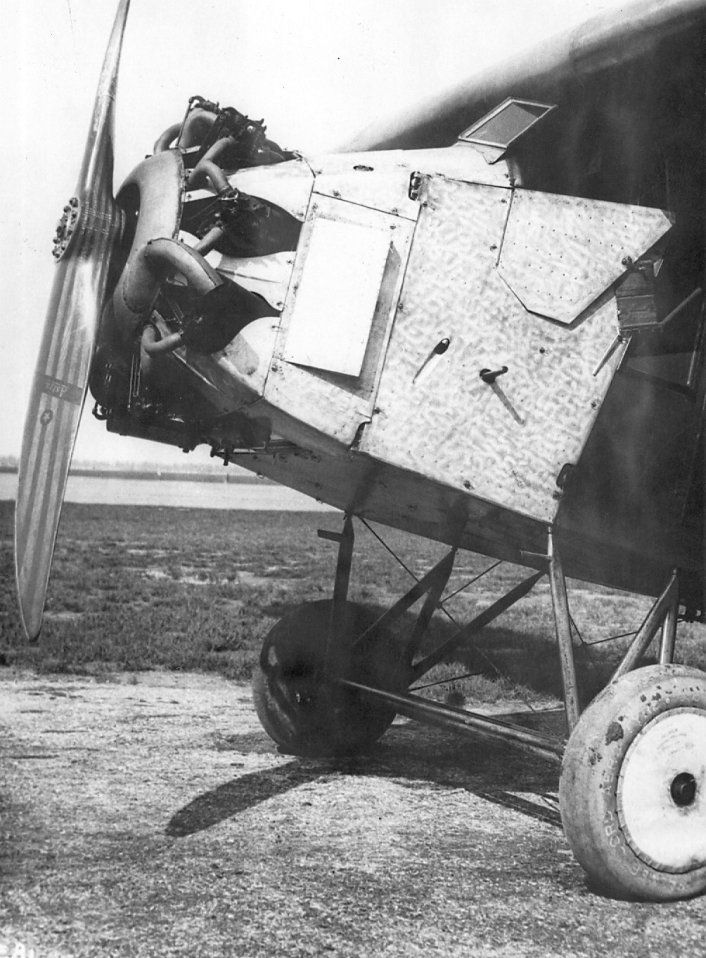

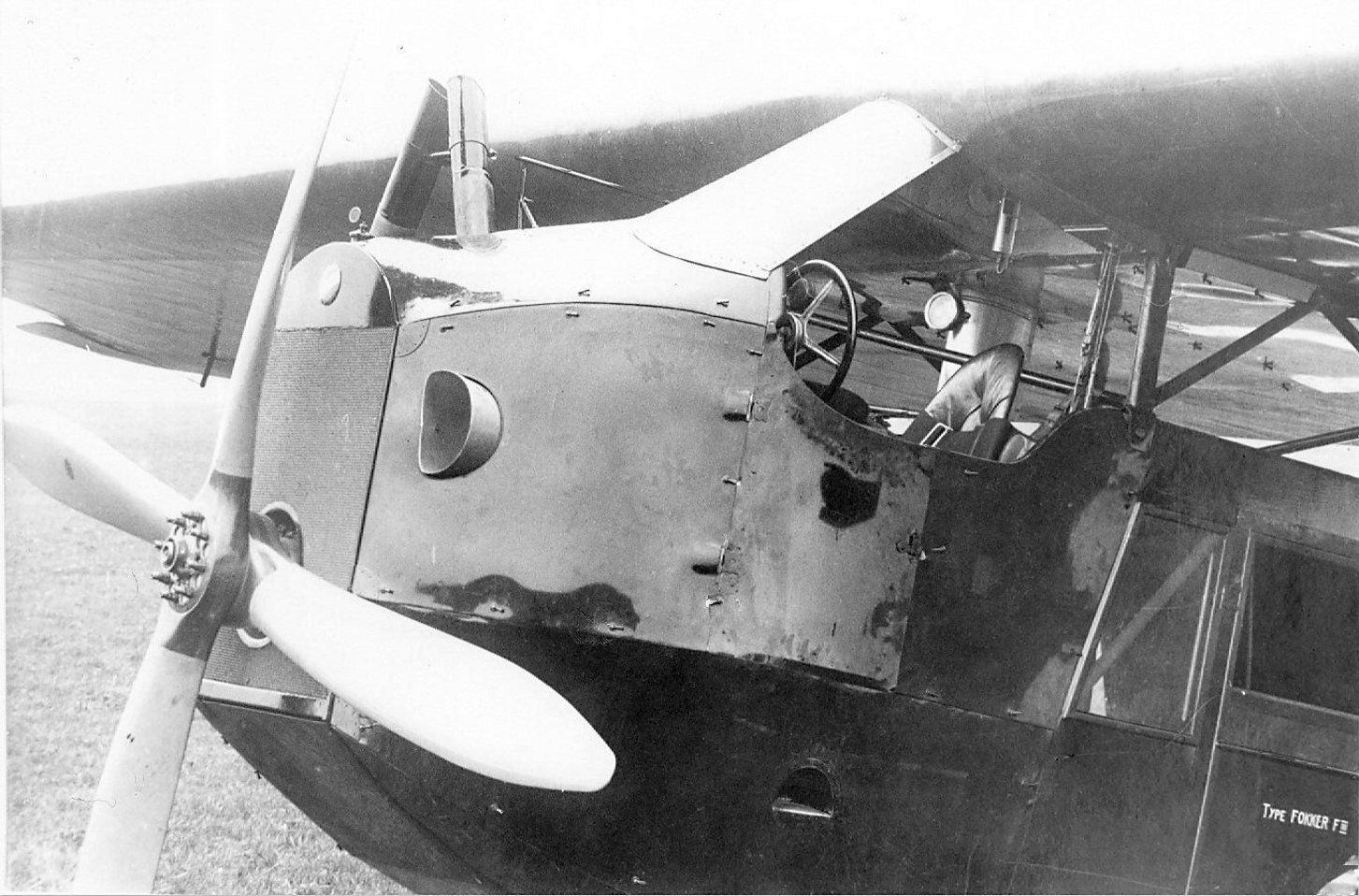

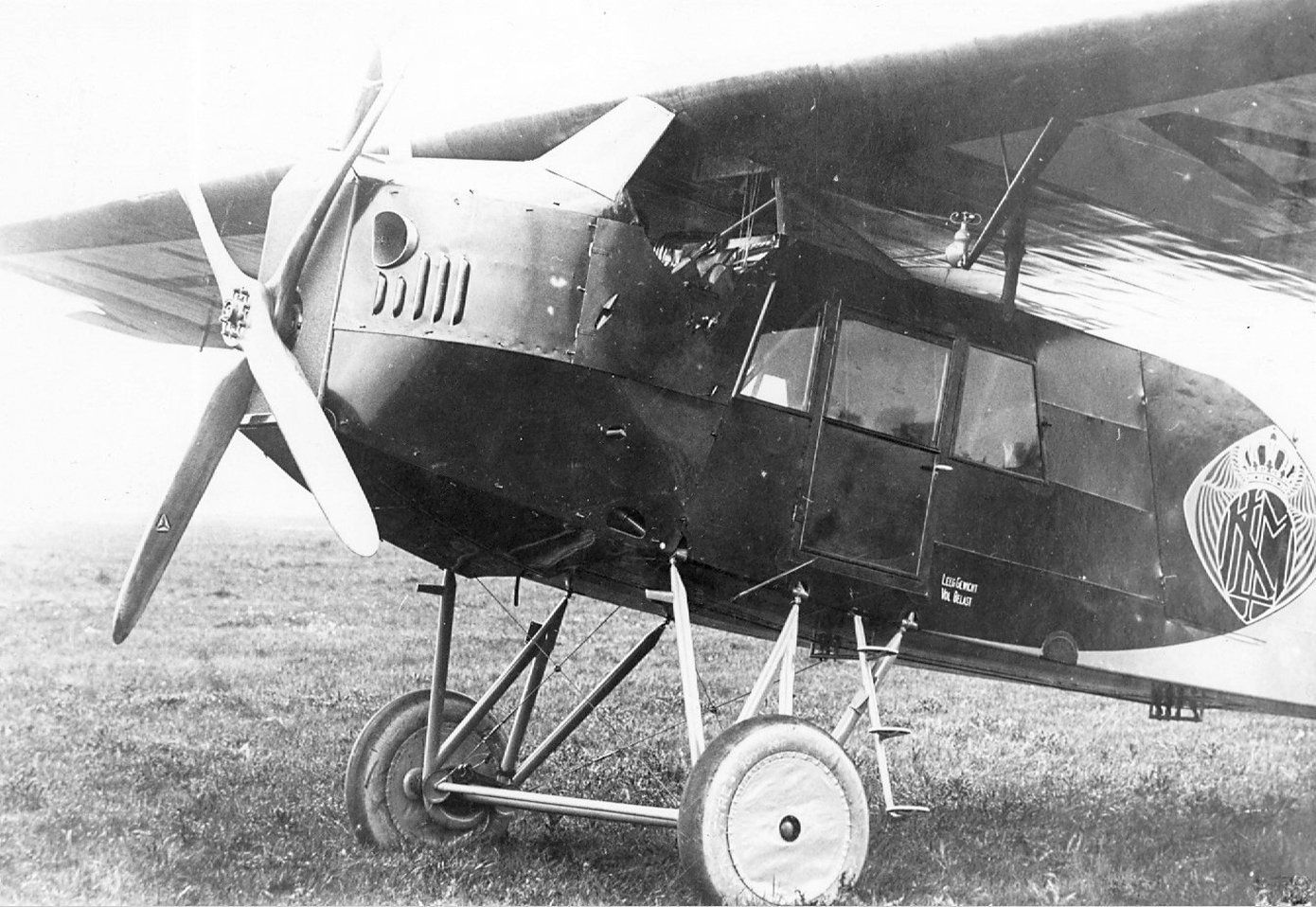

F.III cockpit with Siddeley Puma engine.
Button
031

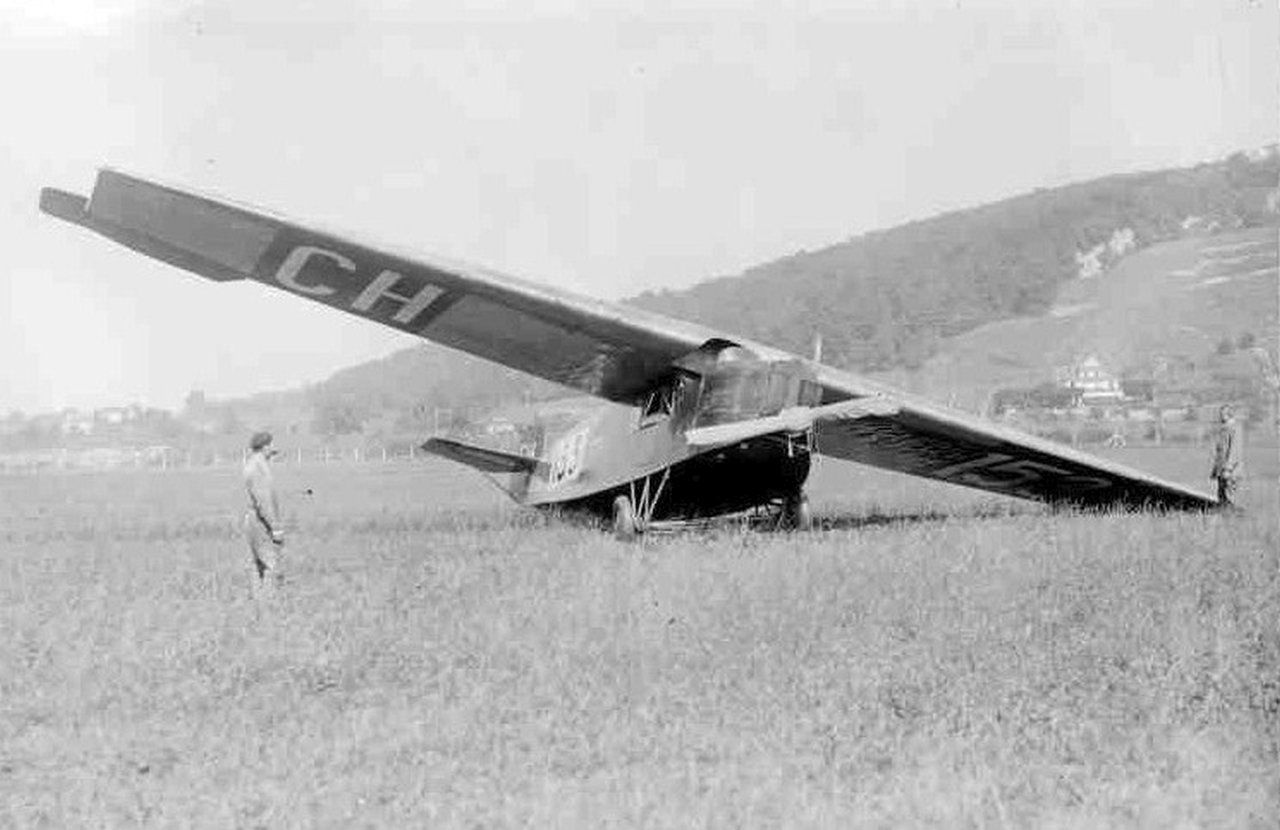

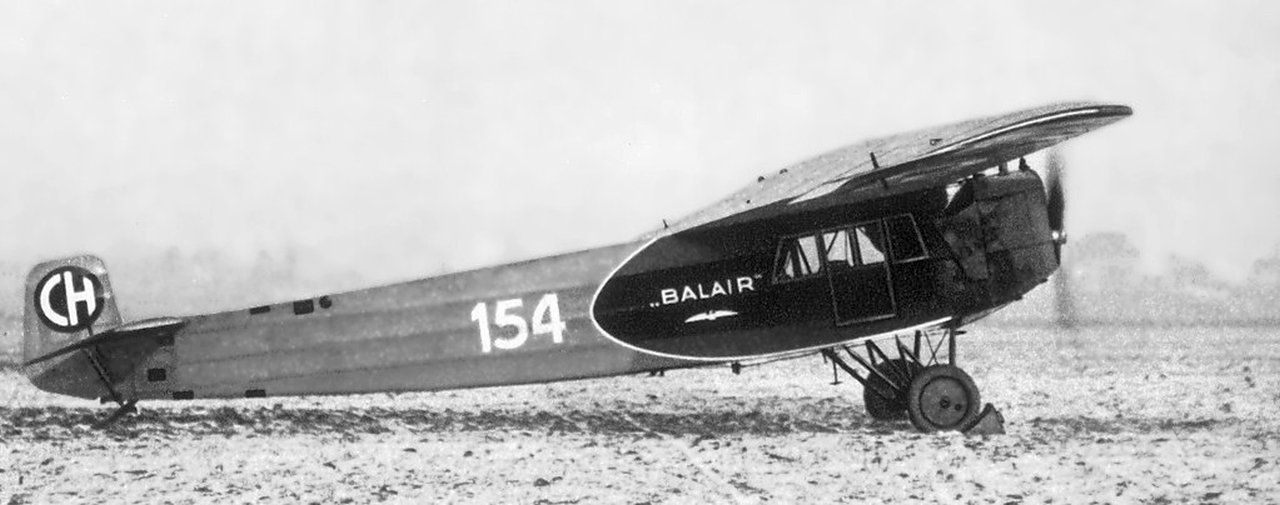

Side view of the Balair F.III CH 154 with cn 1507.
Button
032

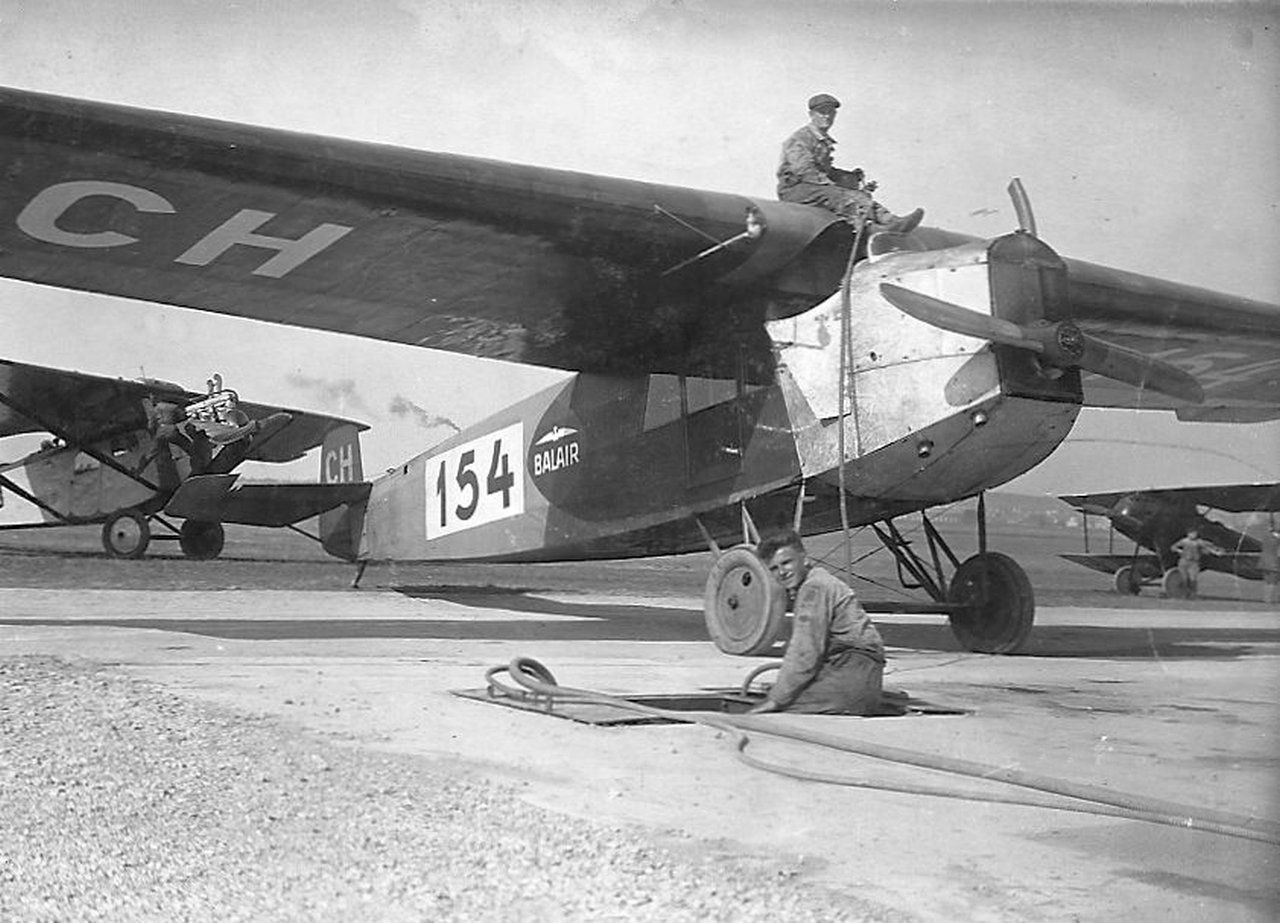

Refueling the CH 154.
Button
033

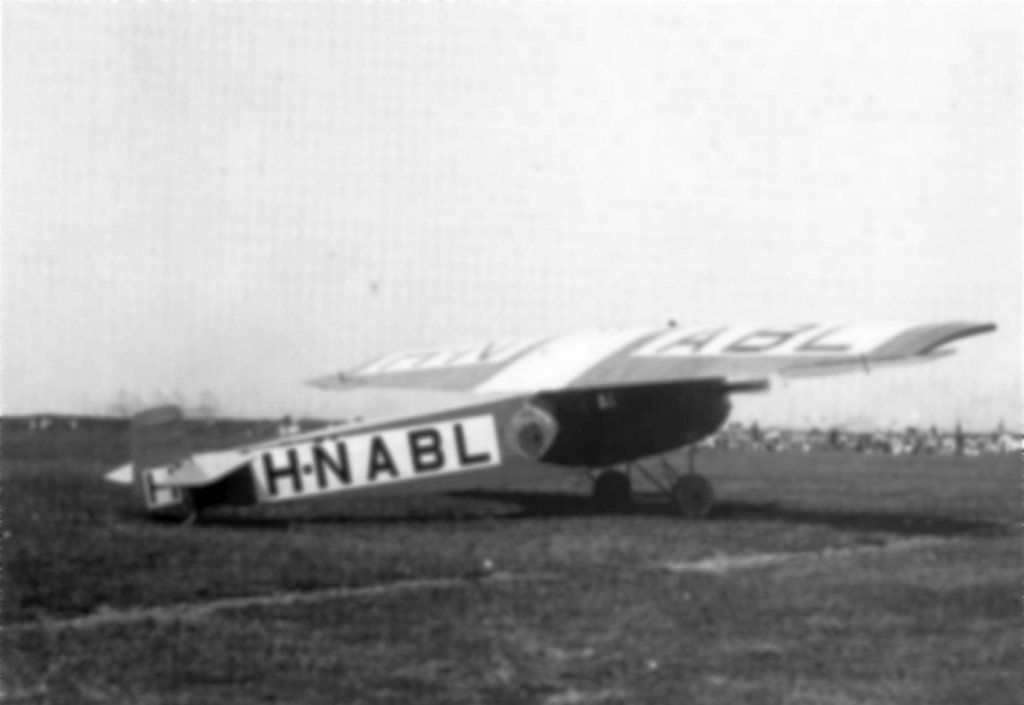

The KLM H.NABL with cn 1508.
Button
034

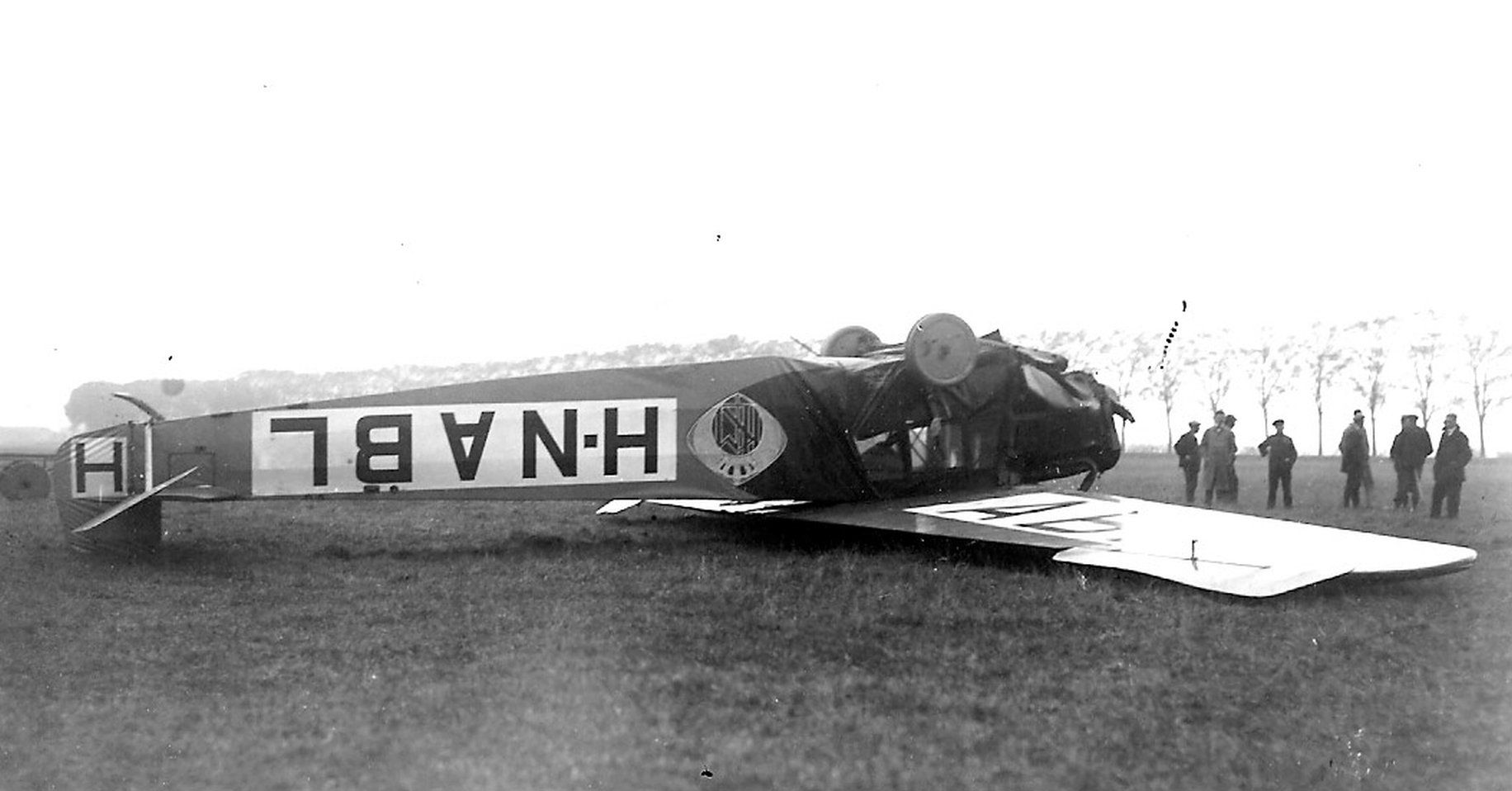

Unfortunate rollover of the H-NABL.
Button
035

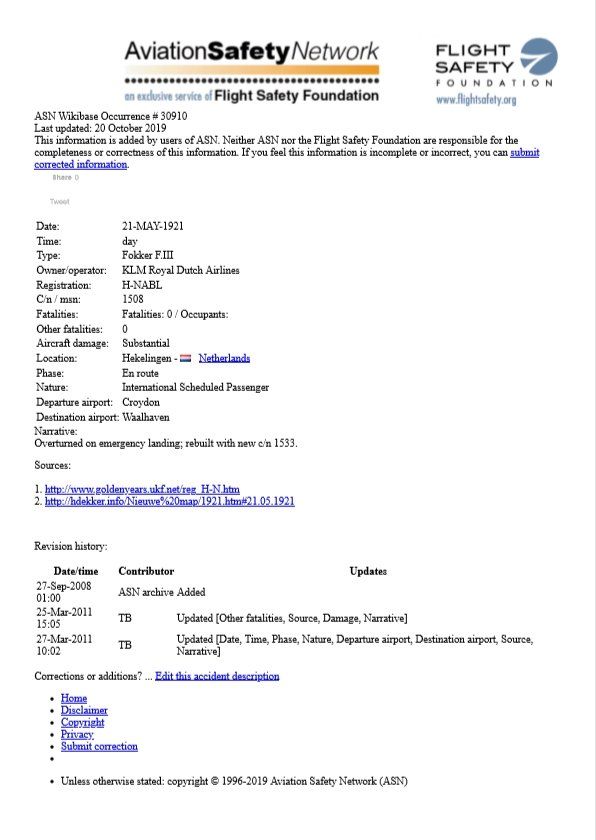

Report from the Aviation Safety Network database about the accident with the KLM F.III H-NABL. May 21, 1921.
Button
036

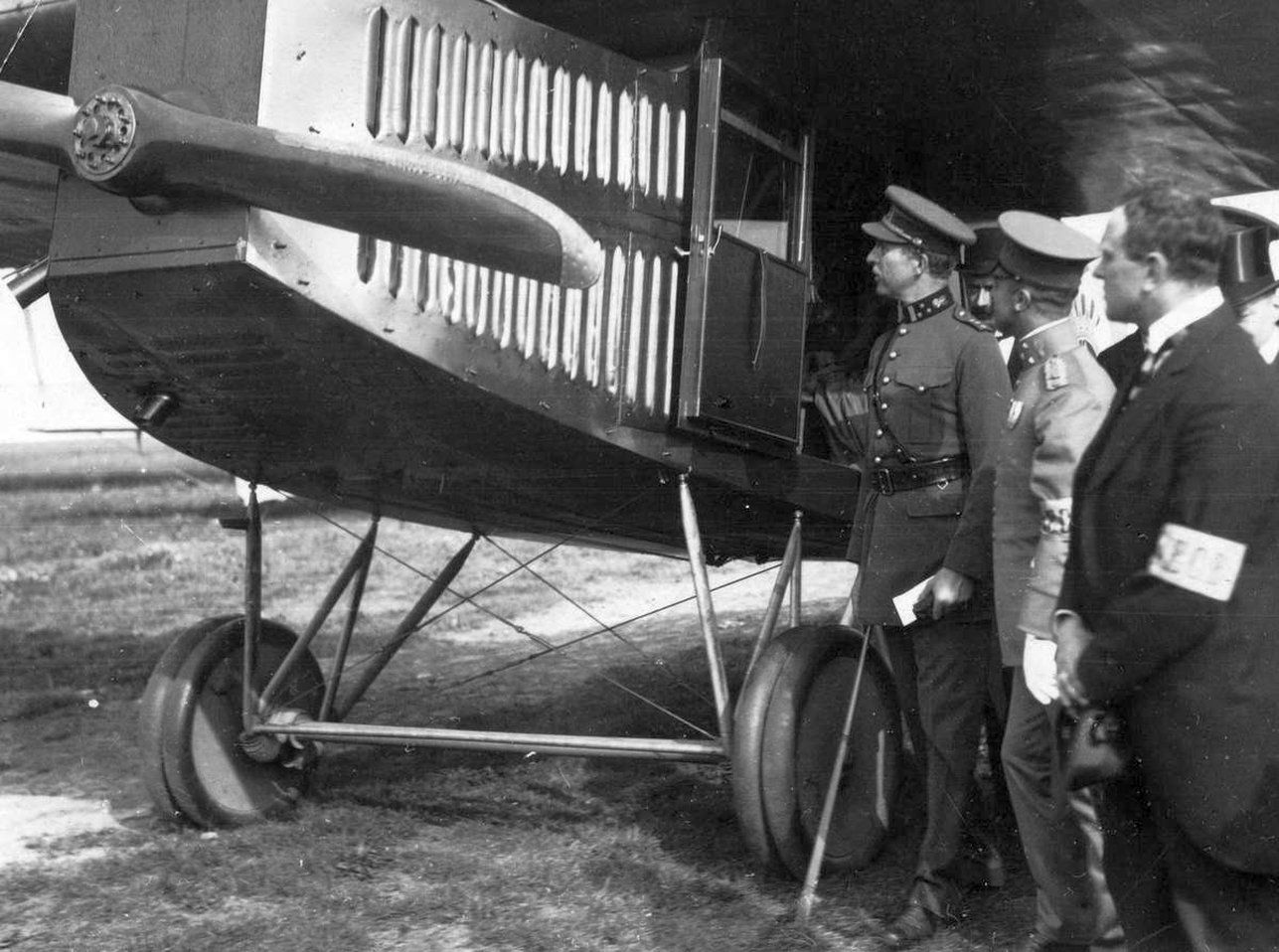

Looks like there is military interest in the F.III.
On the right, KLM director Albert Plesman.
Button
037

The elite also travel with the F.III.
A metal step has now been installed to enter the F.III, instead of the previously used shaky ladder.
Button
038

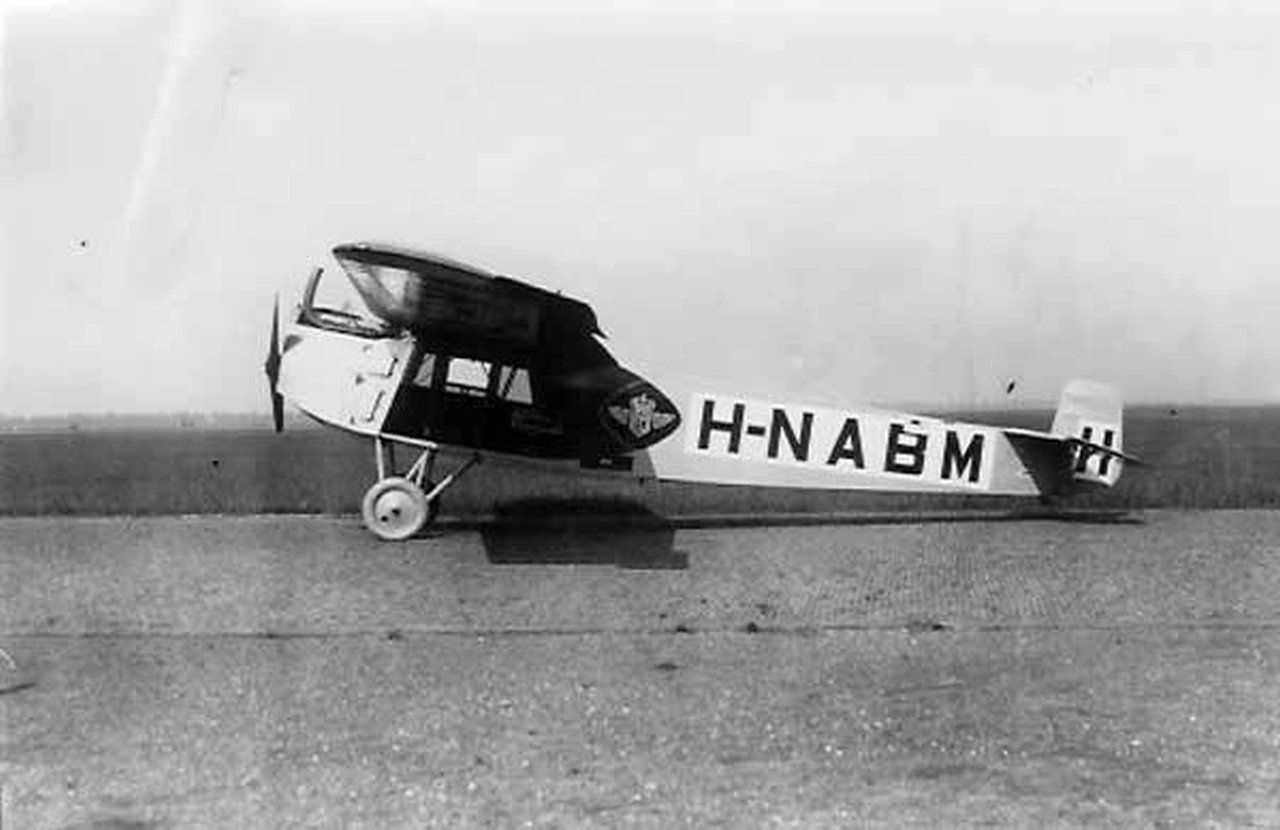

The KLM H-NABM with cn 1509.
Also referred to as KLM-2 because KLM had built this F.III itself, from various parts of earlier crashed F.III's.
Button
039

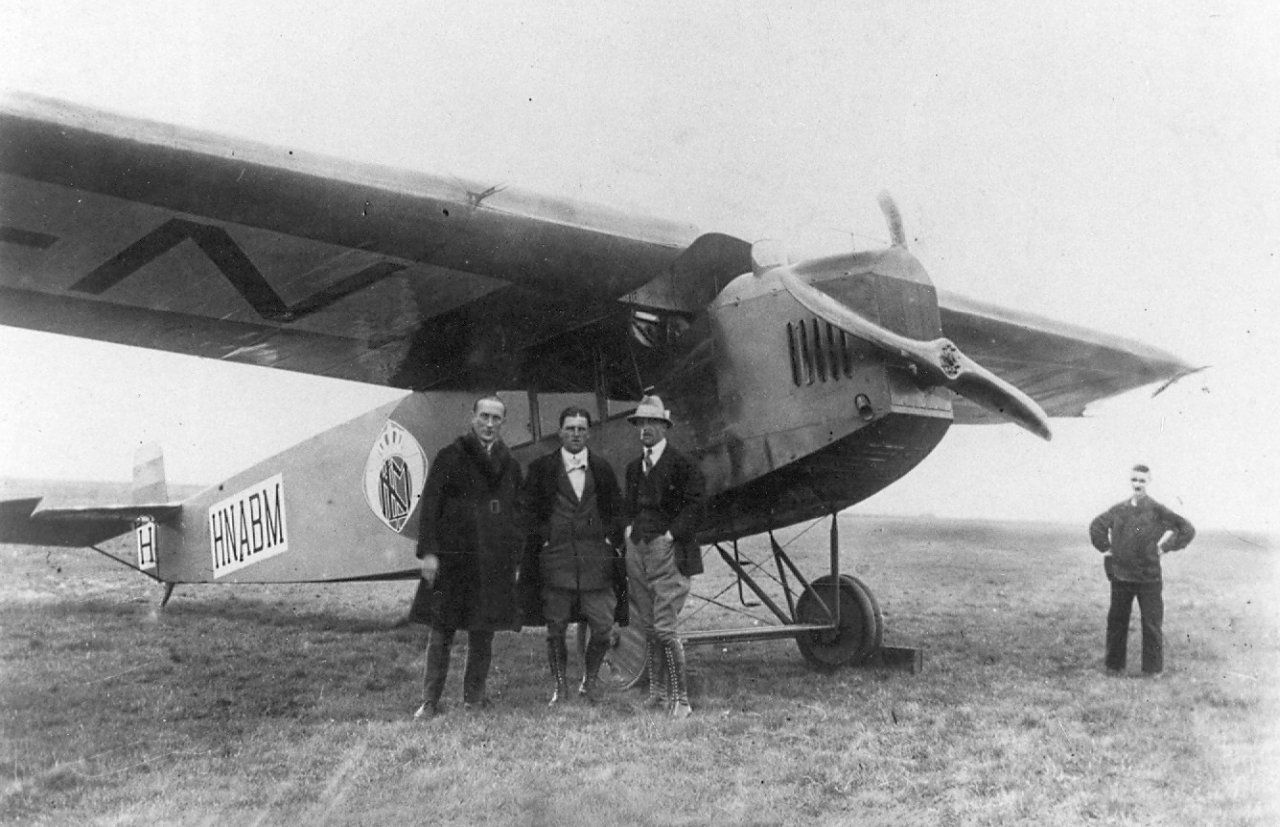

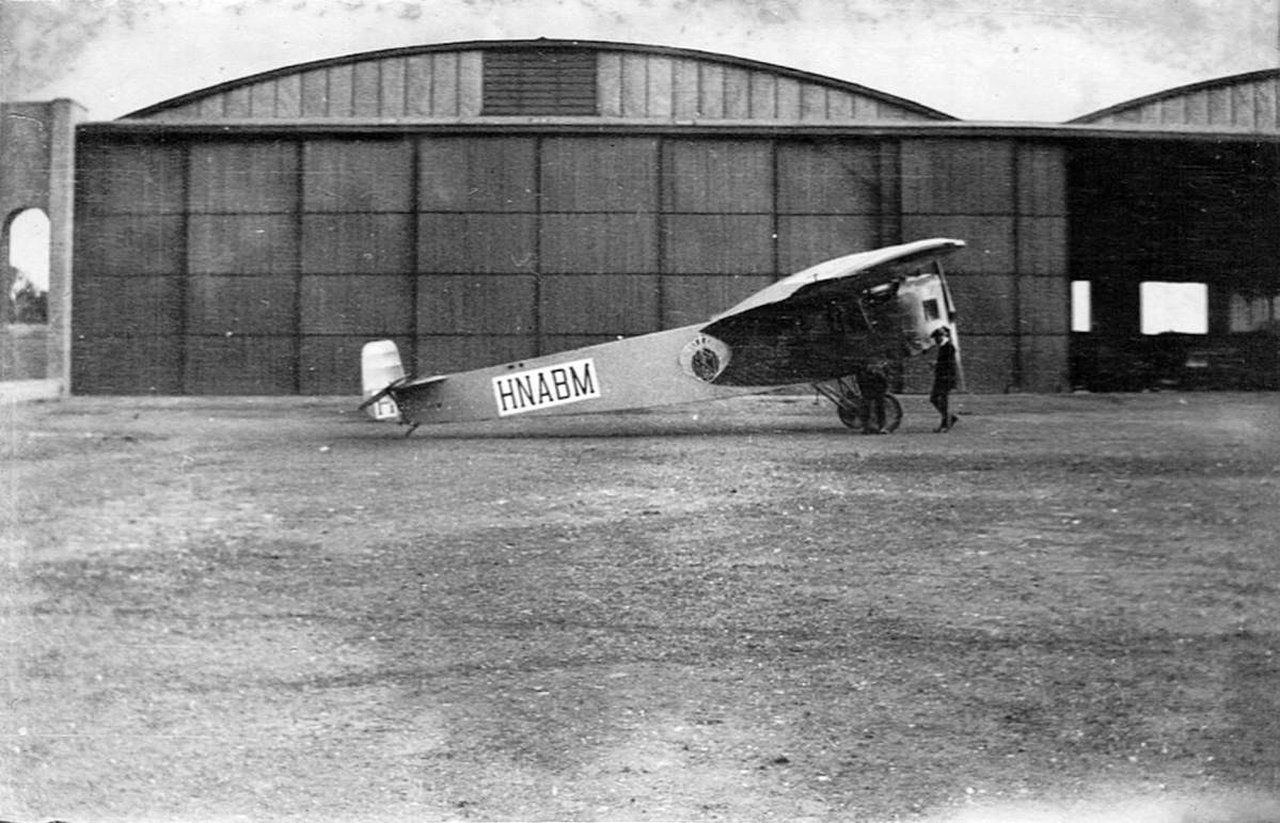

The HNABM at Croydon Airport in London in 1921.
Button
040

The HNABM at Croydon Airport in London in 1921.
Button
041

The KLM F.III H-NABN with cn 1510.
Button
042

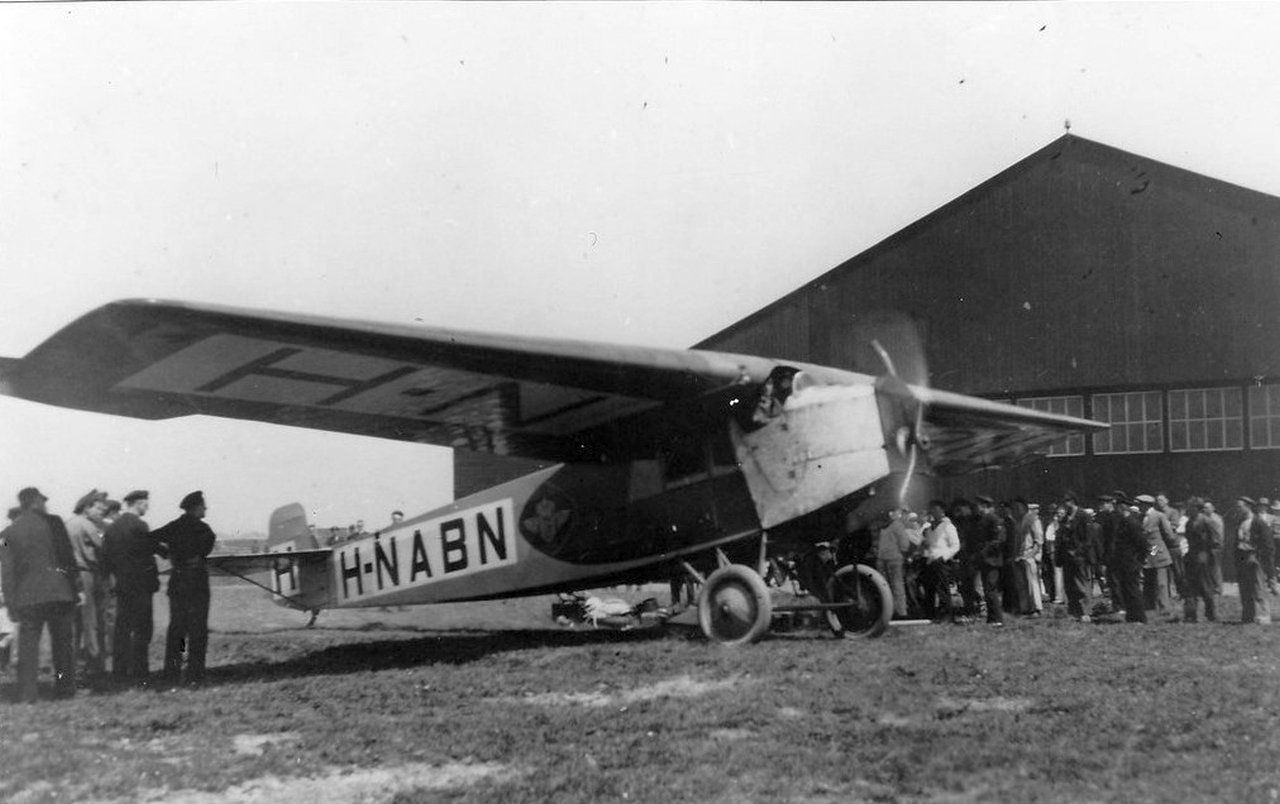

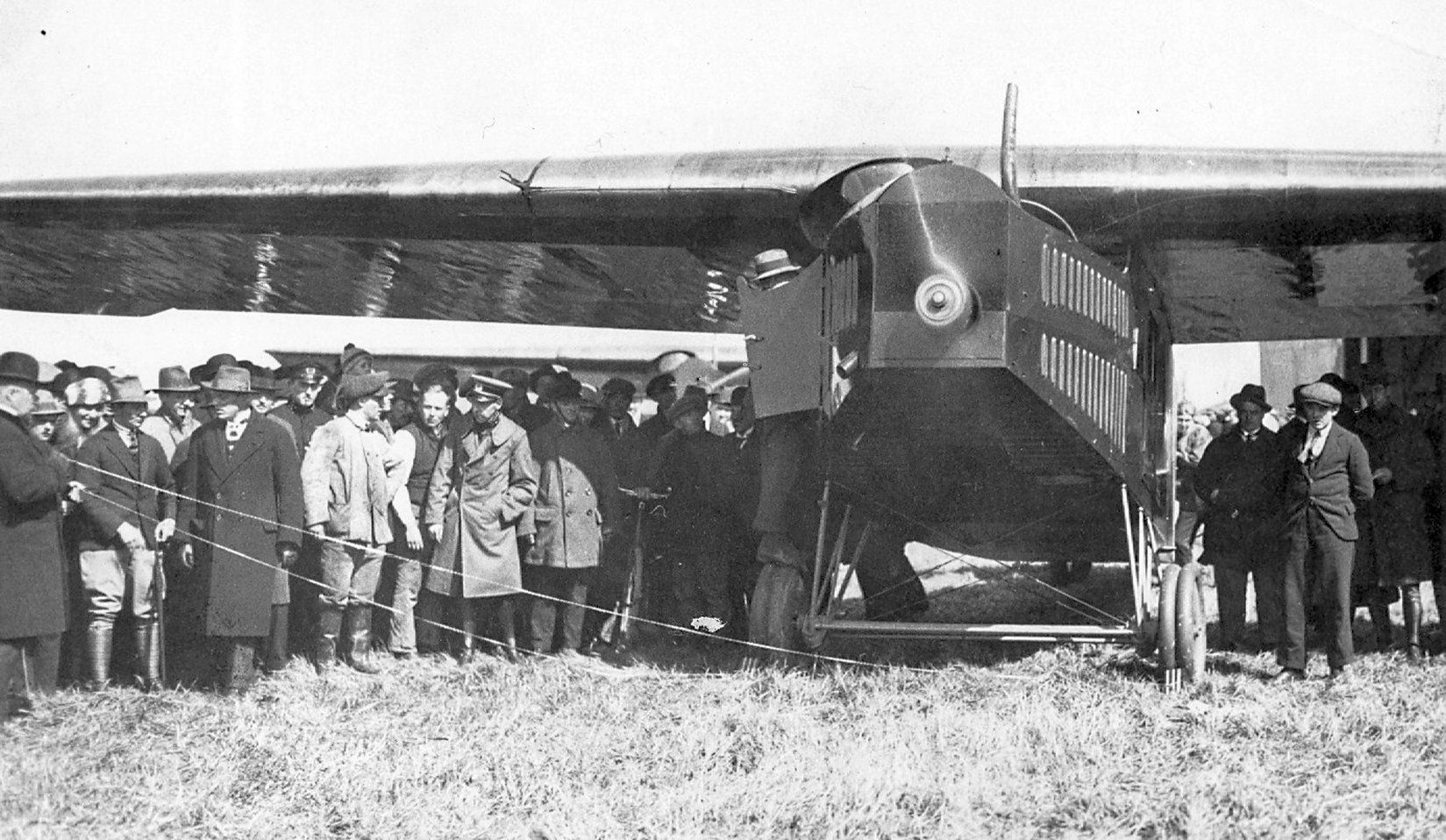

On this special occasion, Prince Hendrik, on the far left, is pulling away the wheel chocks for the start of the H-NABN.
Anthony Fokker and Albert Plesman are standing next to Prince Hendrik.
Button
043

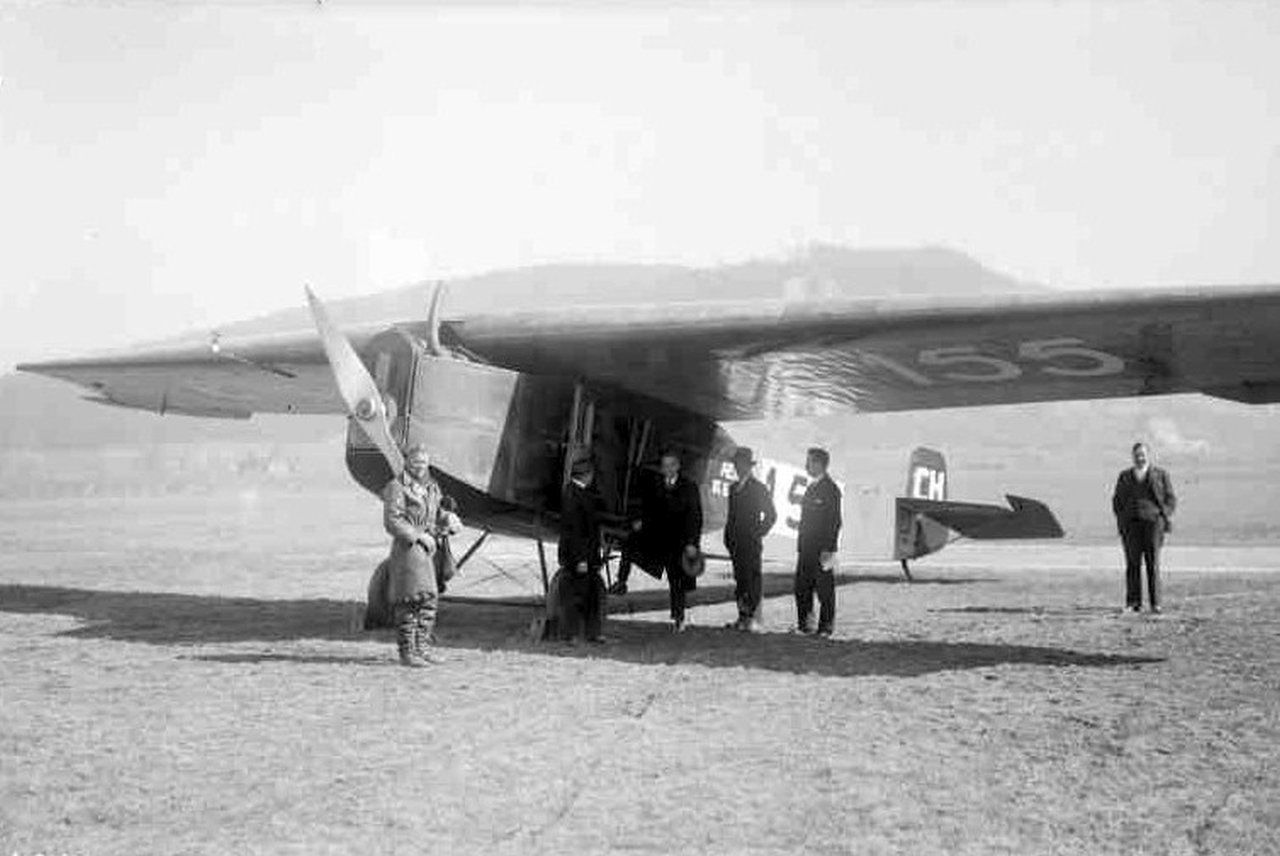

Cn 1510 as CH 155 in service with the Swiss Balair.
Button
044

Legendary KLM pilot Iwan Smirnoff in front of the F.III.
Iwan Smirnoff
045

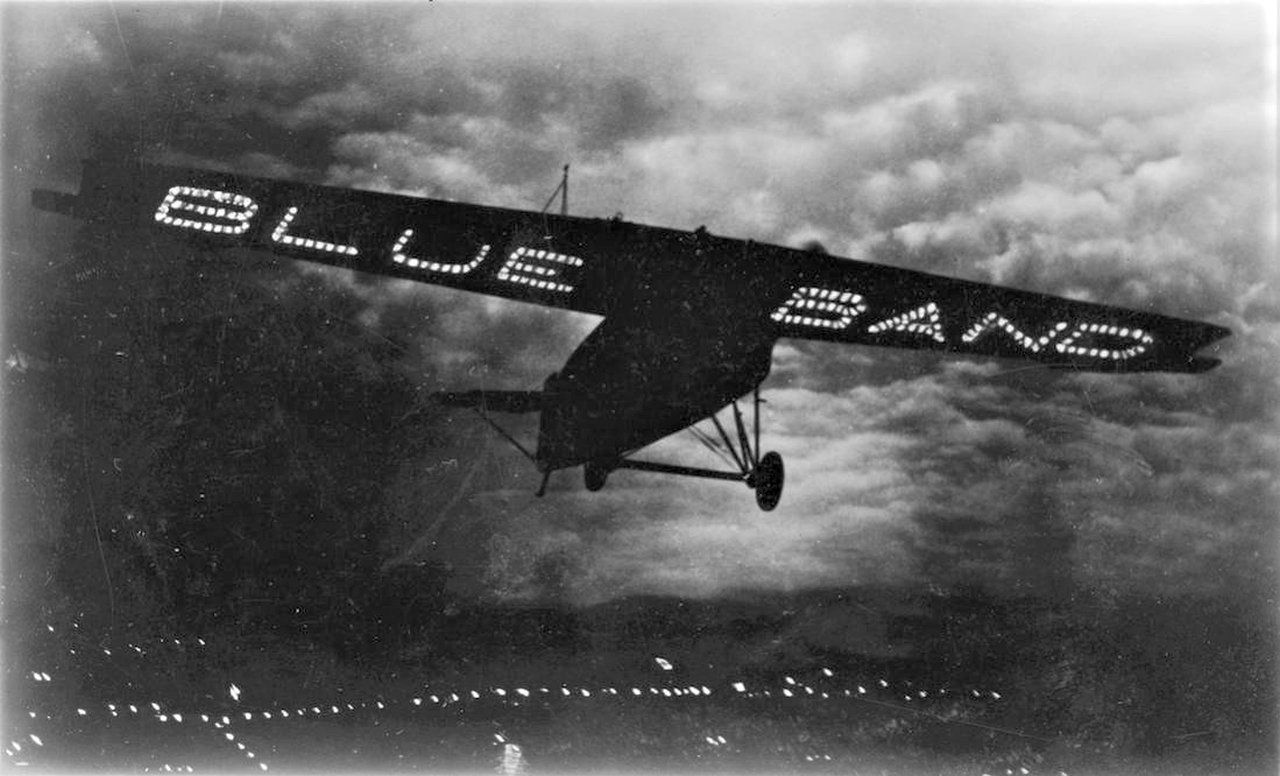

A progressive development in the 1920s: illuminated advertising for a margarine brand under the wing of this F.III.
Button
046

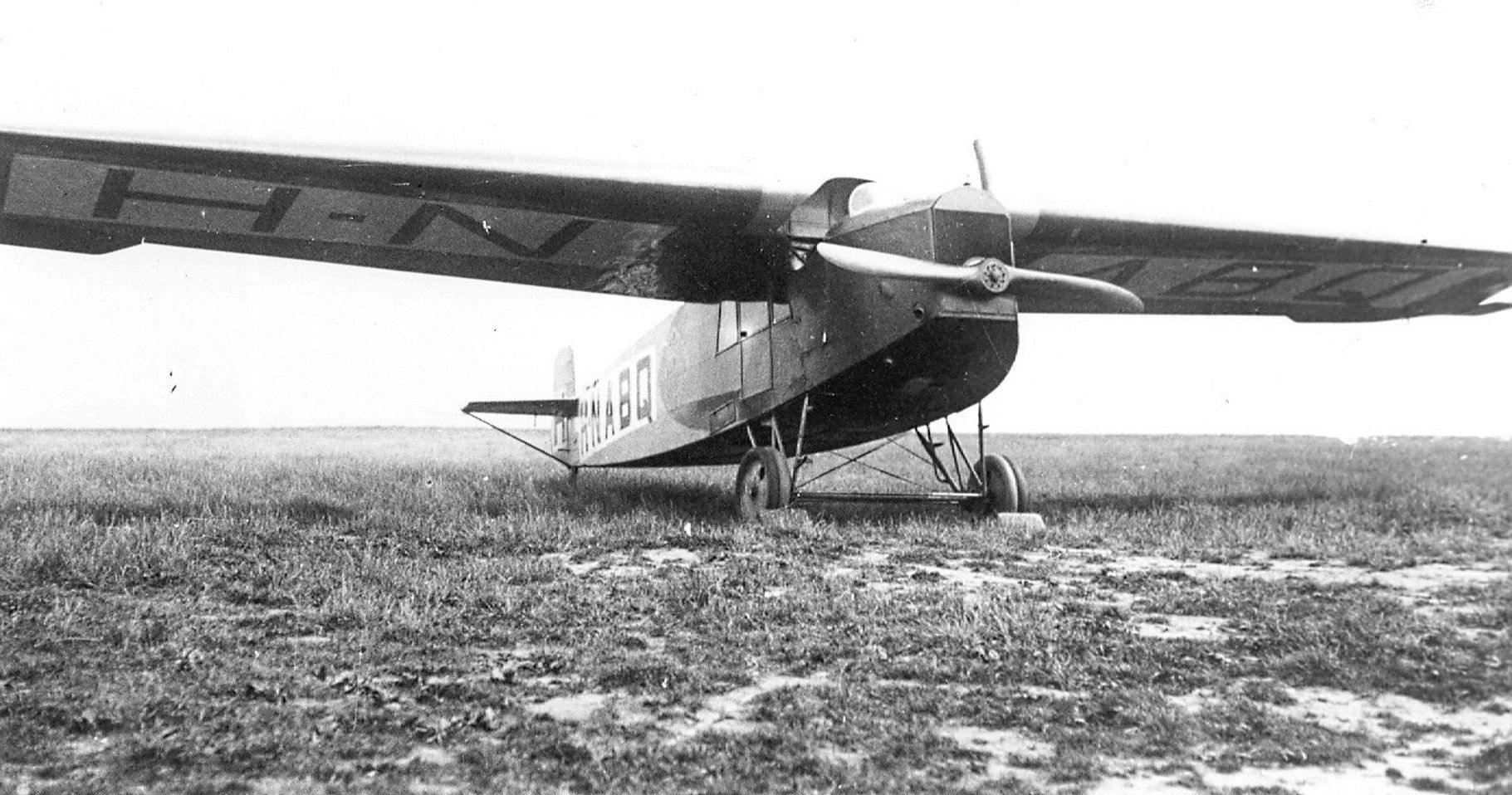

The KLM F.III H-NABQ with cn 1529.
Button
047

The KLM F.III H-NABQ with cn 1529.
Button
048

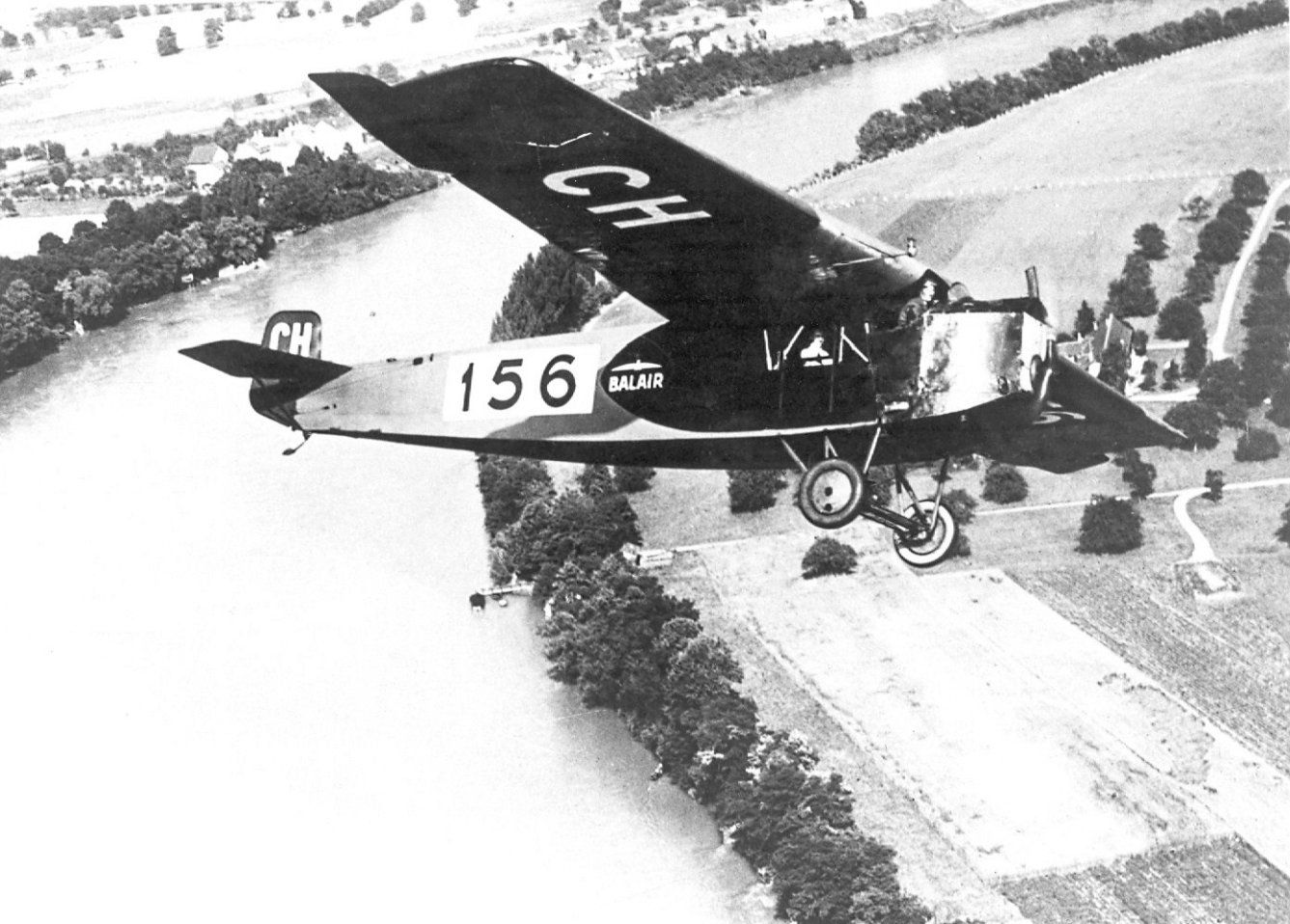

The CH 156 with cn 1529 from Balair.
Button
049

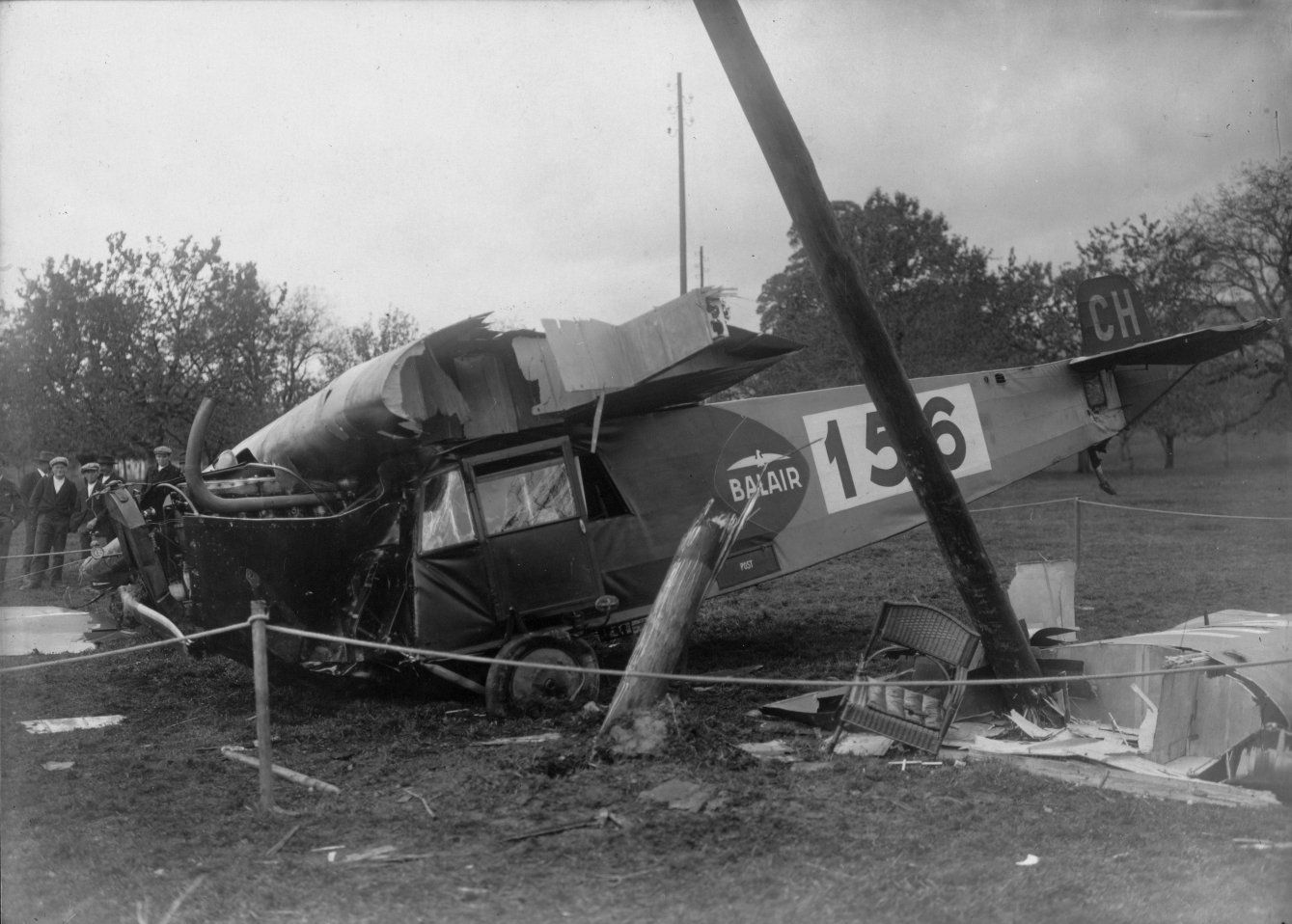

Crash of the Balair CH 156.
Button
050

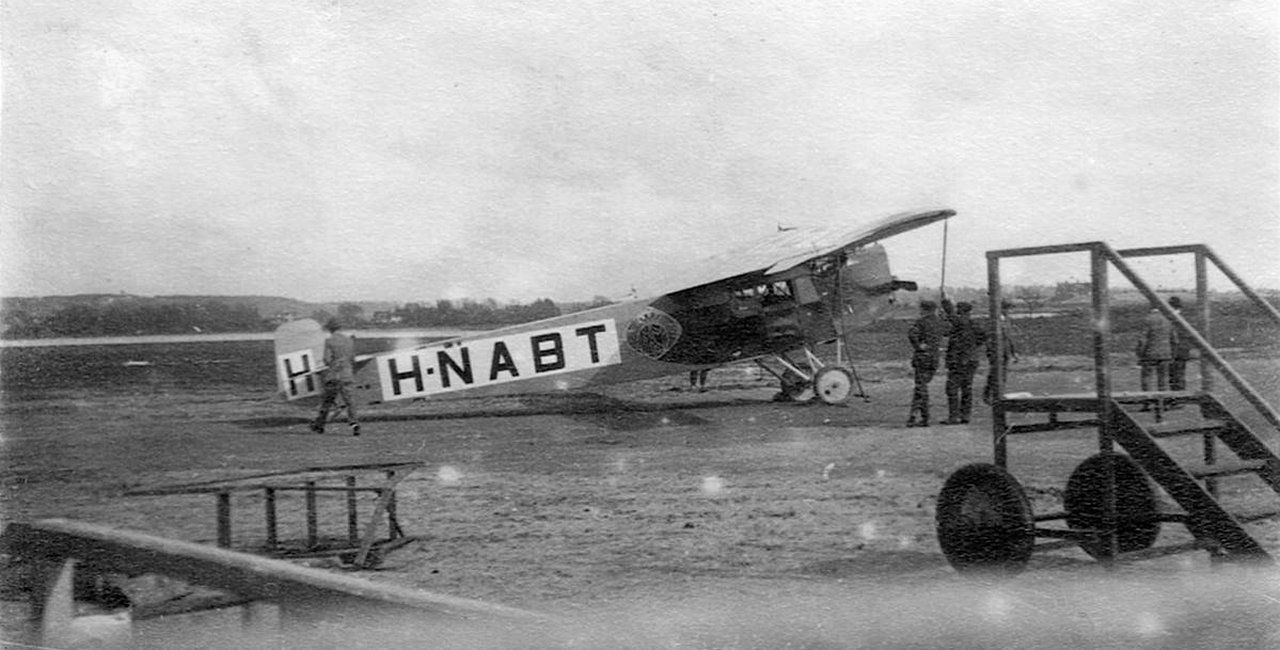

The KLM F.III H-NABT with cn 1532.
Button
051

The H-NABT in the KLM hangar.
Button
052

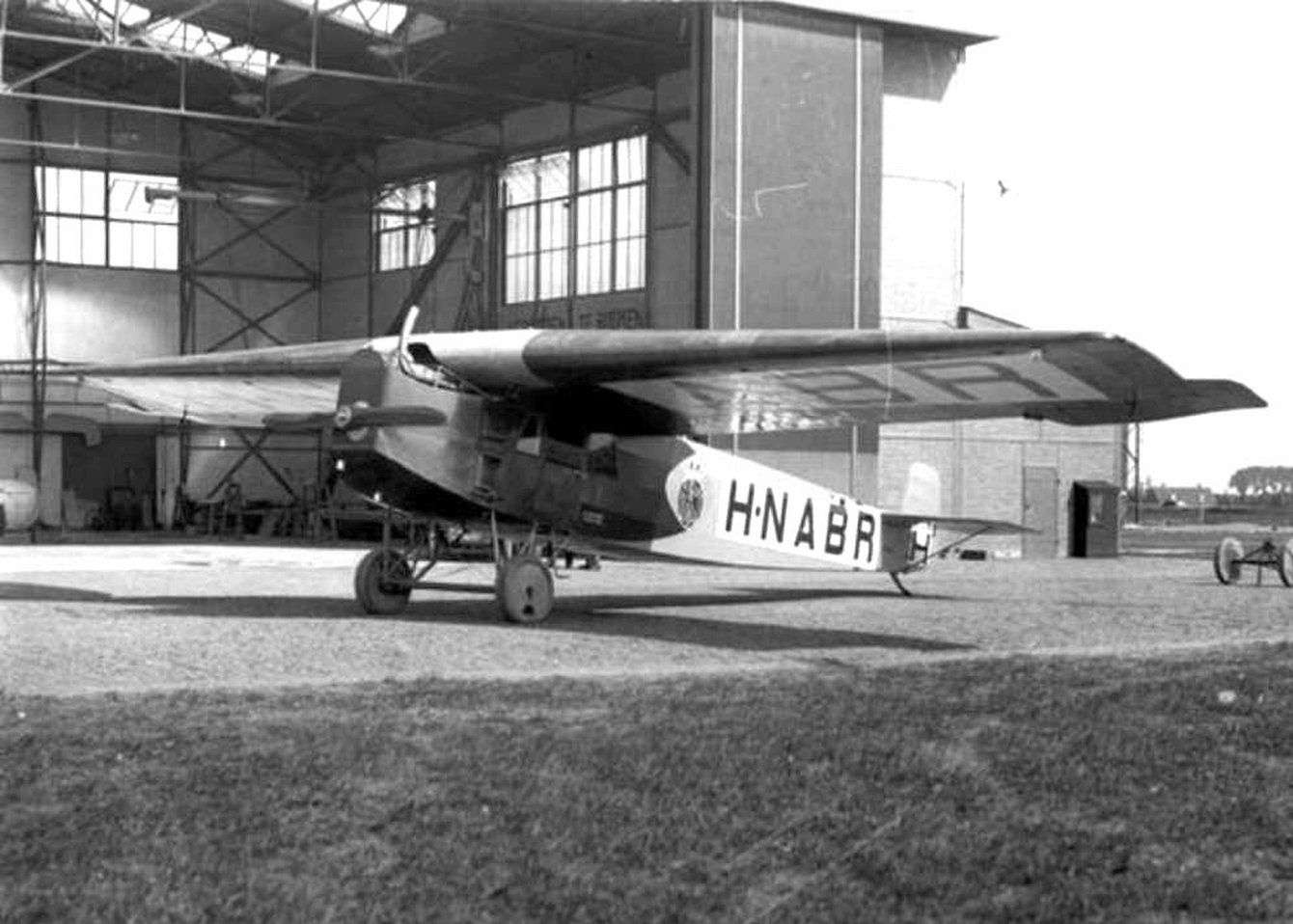

The H-NABR with cn 1533 KLM-2, was also an F.III built by KLM, consisting of parts of other F.III's.
Button
053

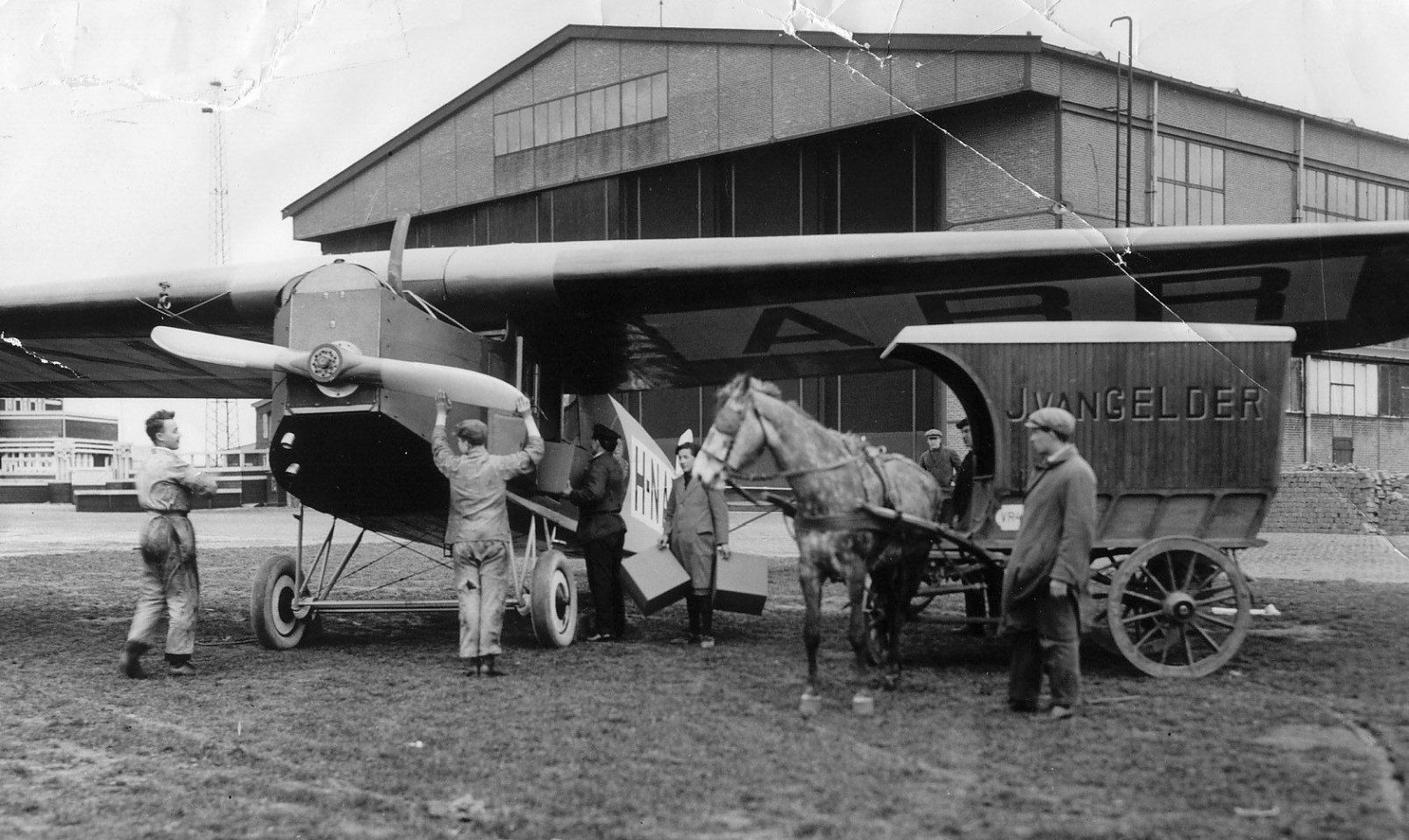

Delivery of cargo to be transported with the H-NABR.
Button
054

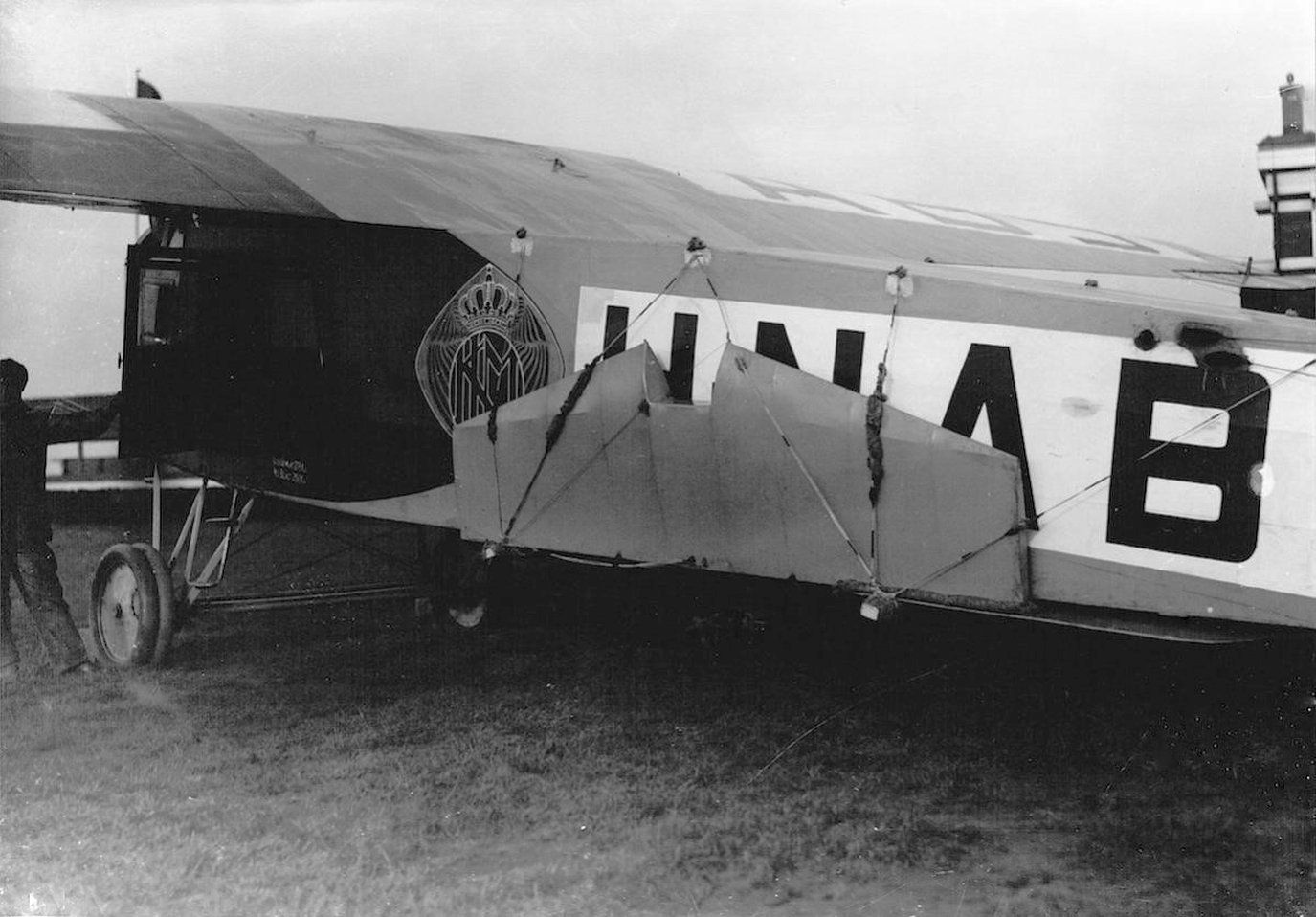

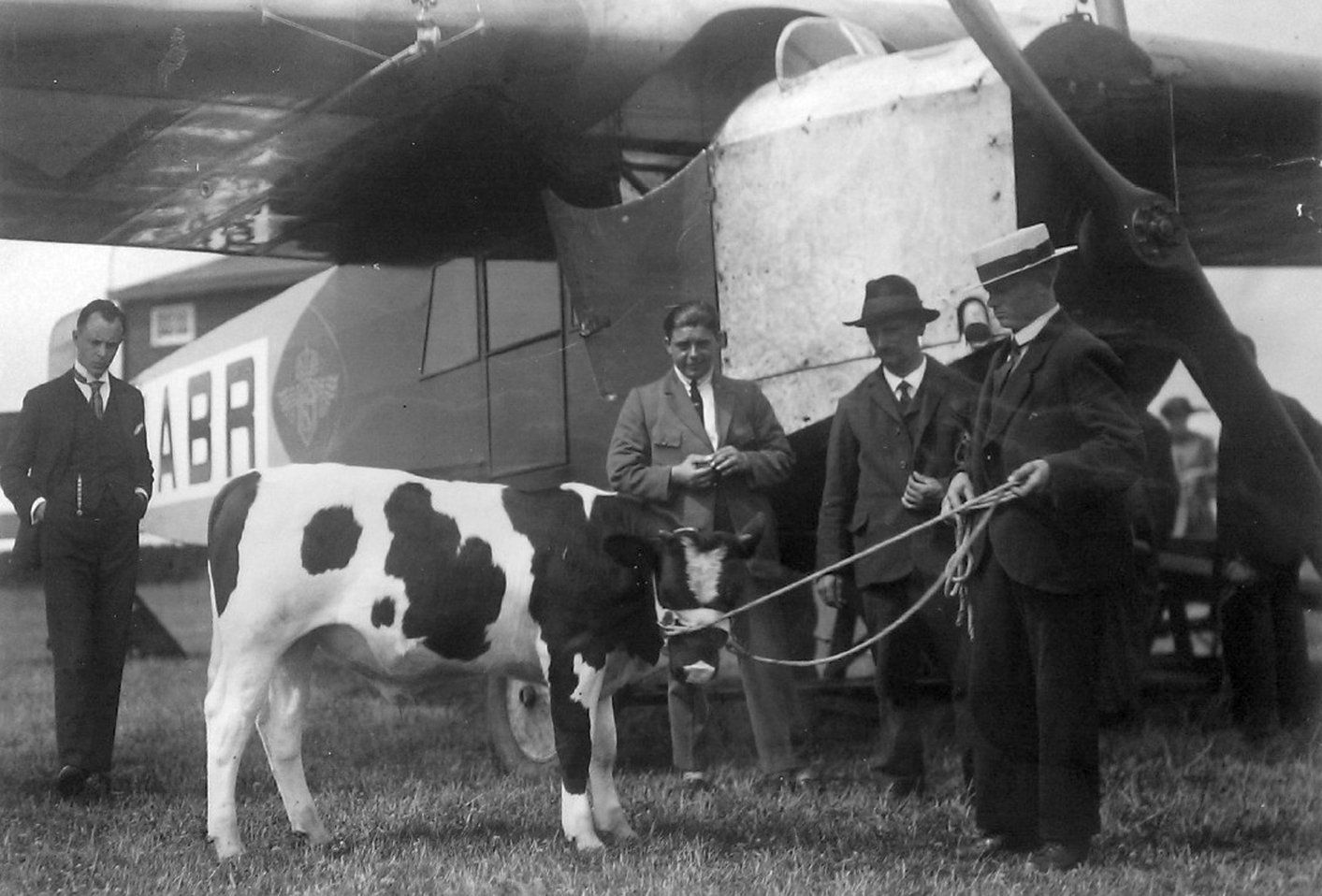

One of the first animal transports by plane.
This young bull was transported with the KLM H-NABR.
Button
055

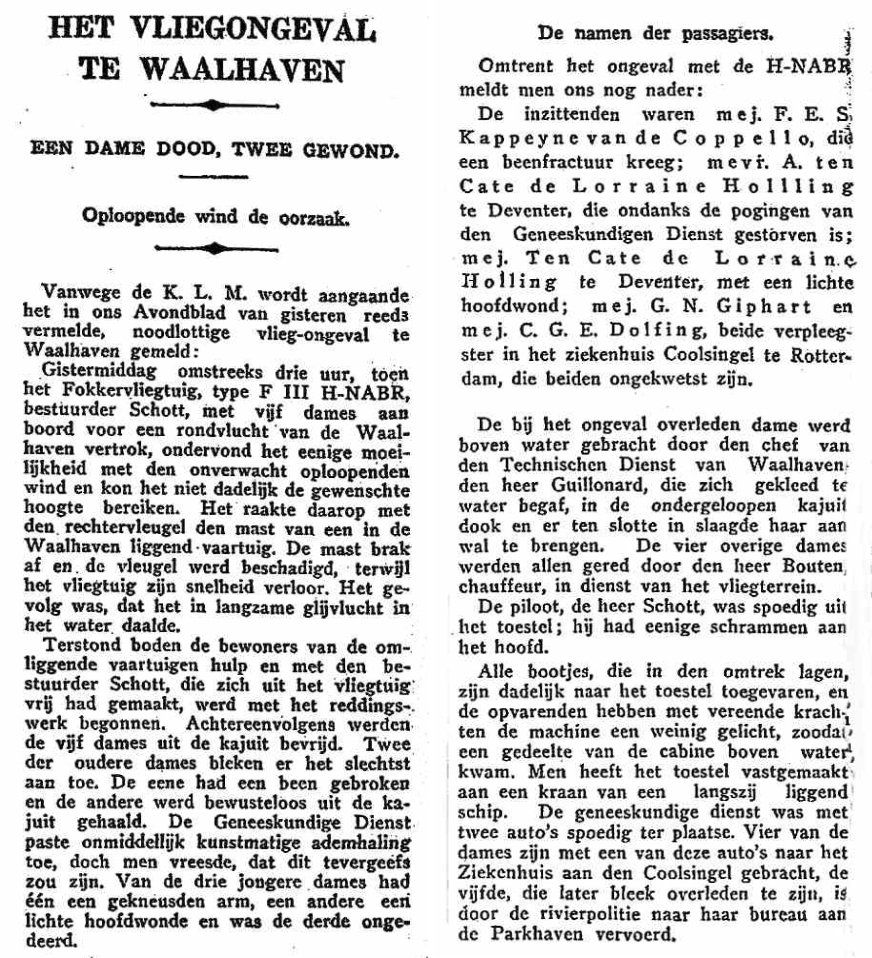

Newspaper report of an accident that occurred with the KLM H-NABR.
Button
056
Button
057

Cn 1534 Now flying for Hungarian Airline Malert with registration H-MABA.
The fuselage still has a small KLM logo.
Button
058

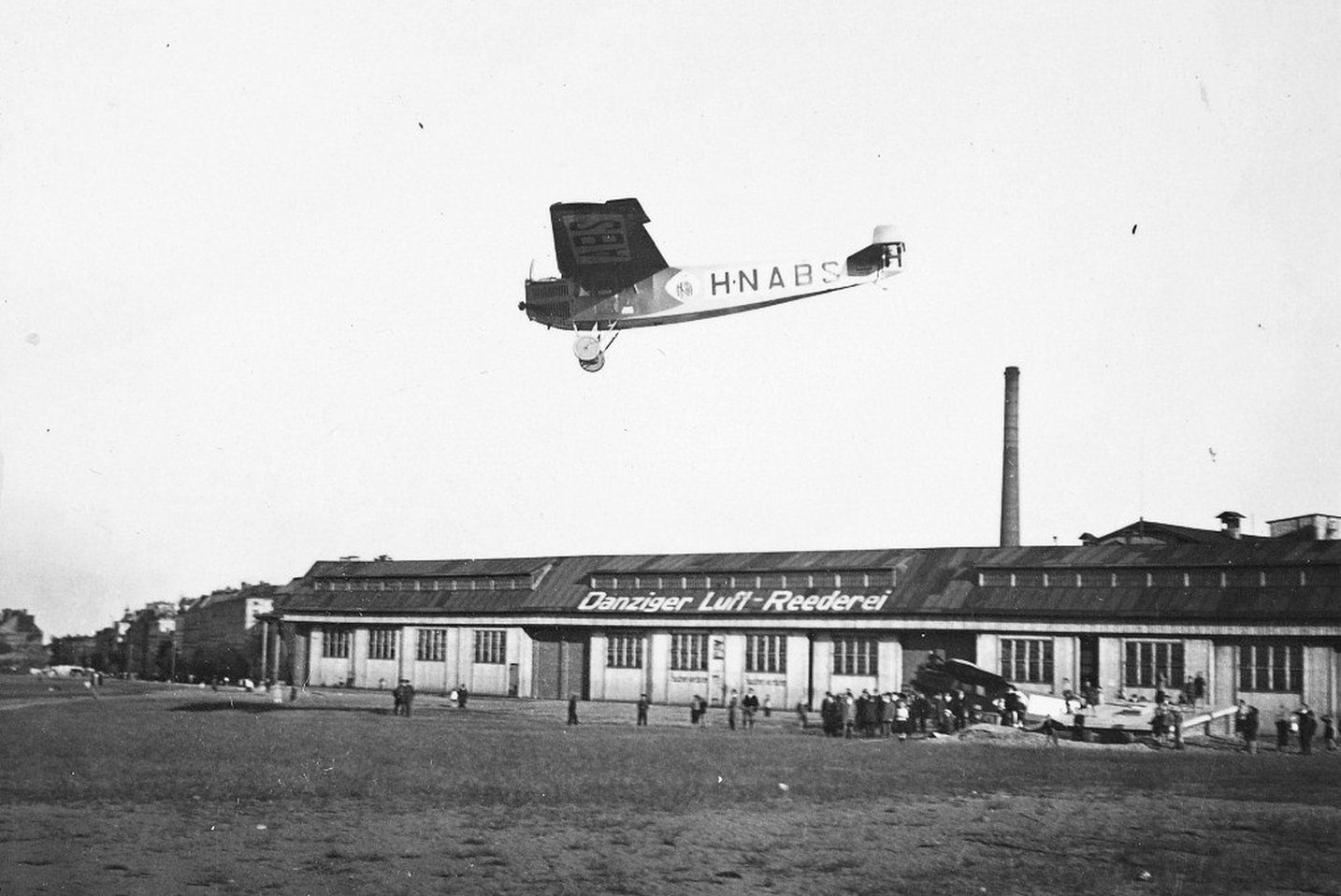

The KLM H-NABS with cn 1535 above the hangar of the “Danziger Luft Reederei”.
Button
059

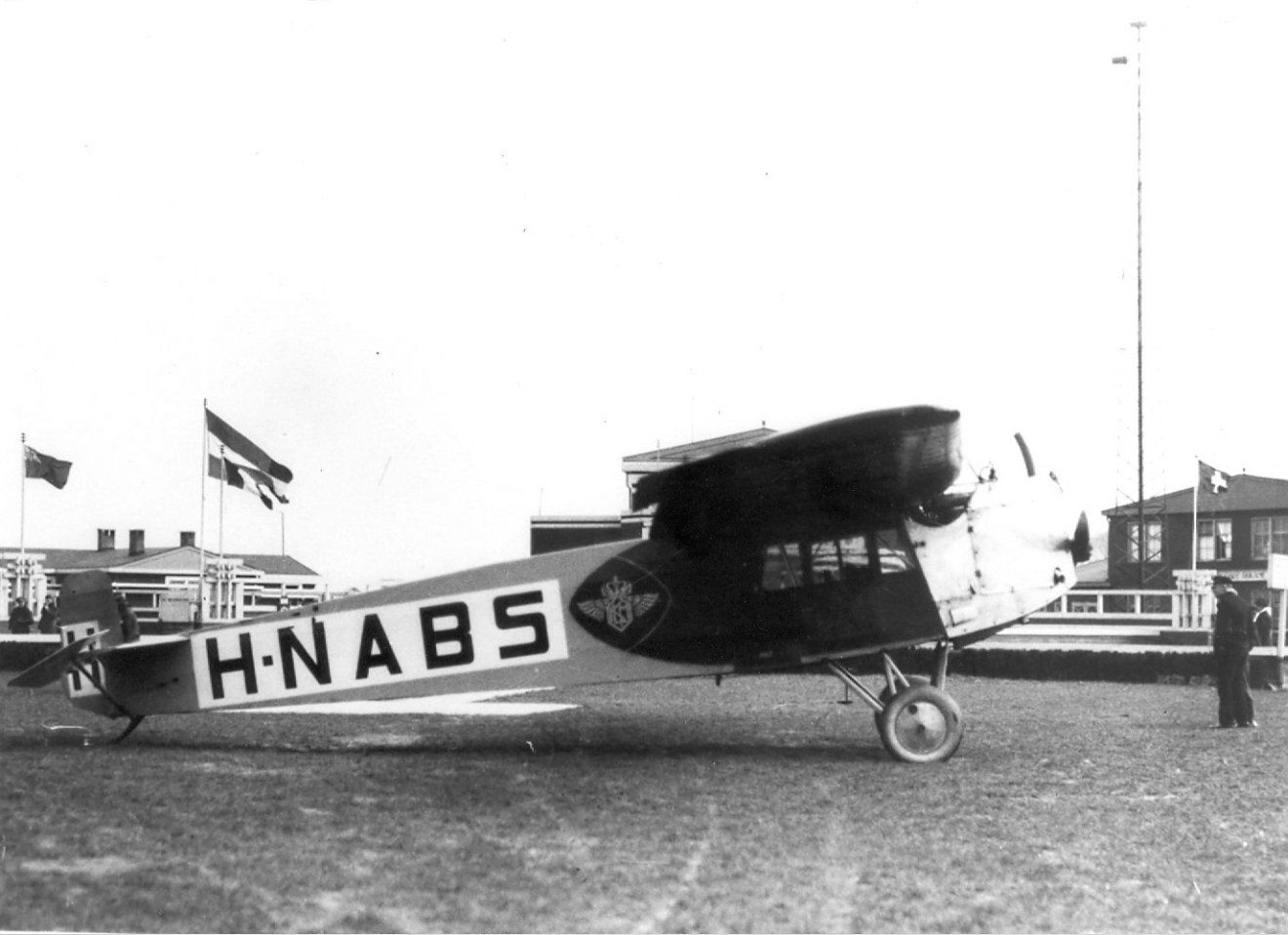

The KLM F.III H-NABS with cn 1535.
Button
060

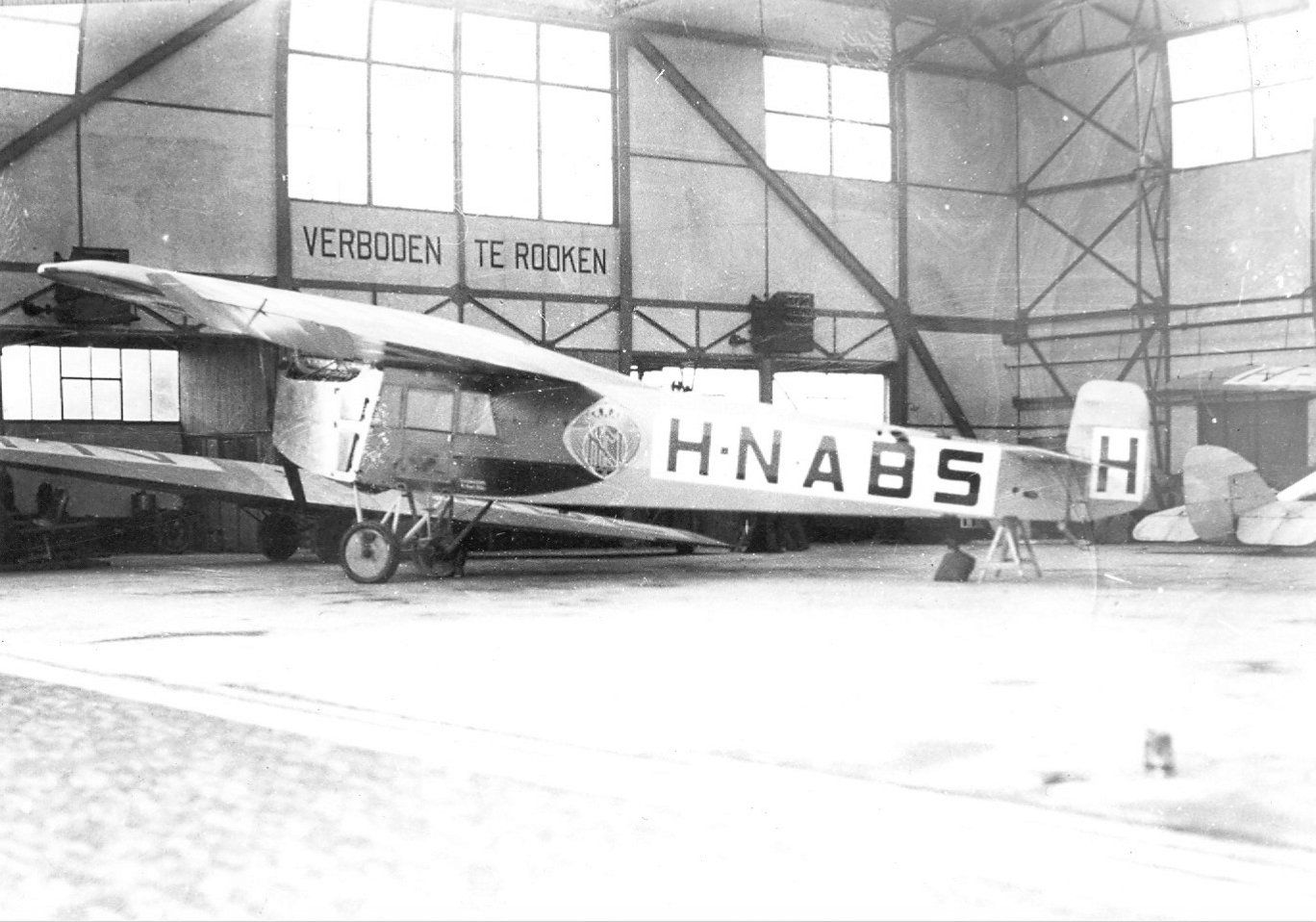

The KLM H-NABS in the hangar.
Button
061

Unfortunately, the KLM F.III H-NABS crashed. This is the report from the “Aviation Safety Network” from the database about the accident.
Button
062

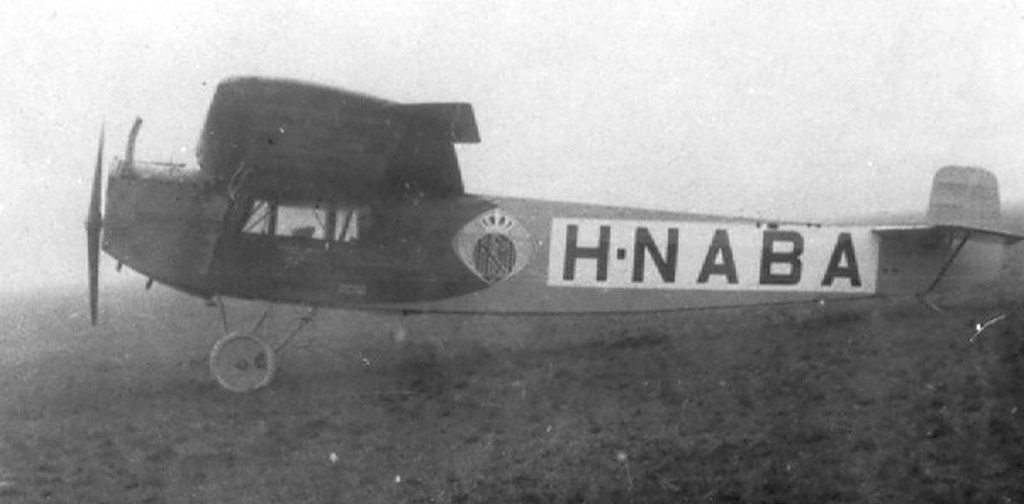

The H-NABA with cn 1550.
Despite the KLM logo, this F.III, is still owned by the Fokker factory.
Button
063

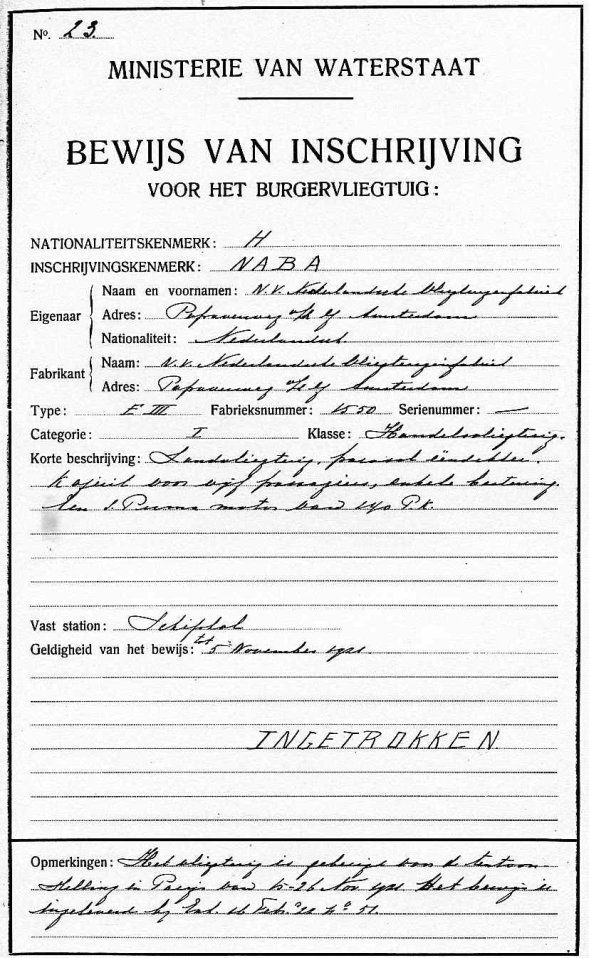

The certificate of registration of the H-NABA in the name of Fokker.
Button
064

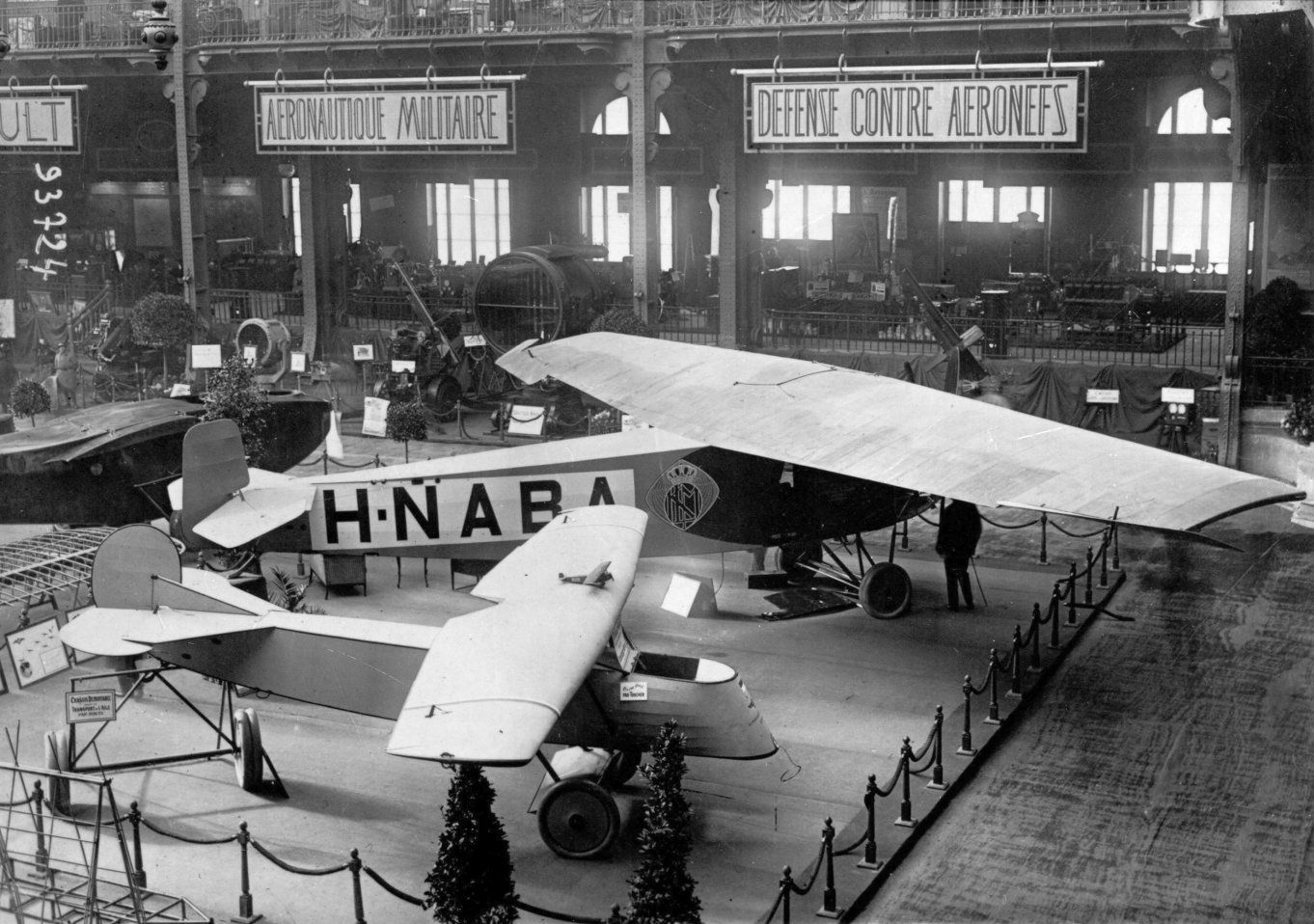

The H-NABA at the 1921 Paris Aviation Show.
In the foreground a Fokker V-30 glider.
Button
065

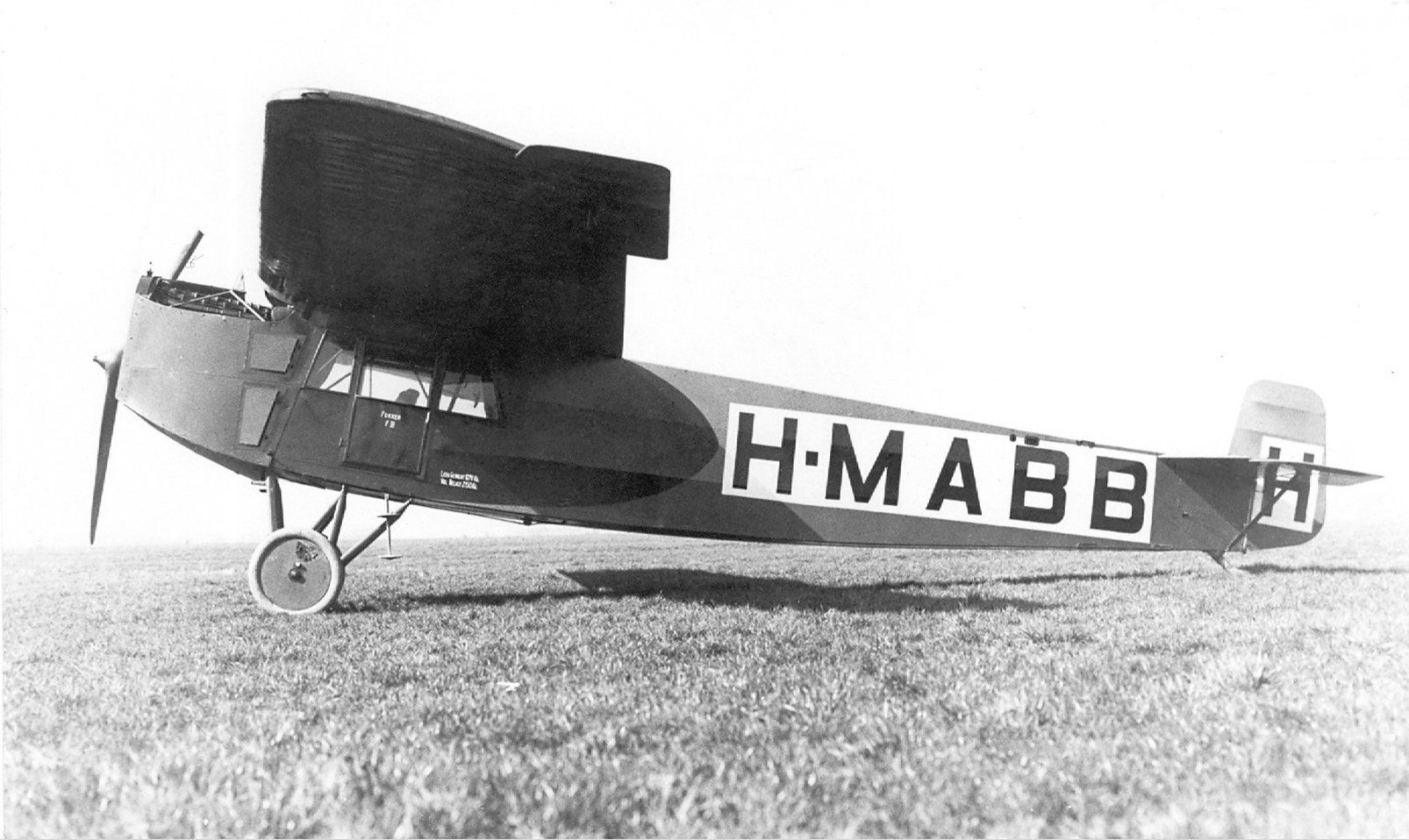

The H-NABA was later sold to Malert as H-MABB (cn 1550).
It is confusing that in the 1920s both the Netherlands and Hungary had the same initial letter 'H' in the aircraft registration system.
Button
066

The F.III with cn 1600.
One of two F.III's shipped to the USA.
Button
067

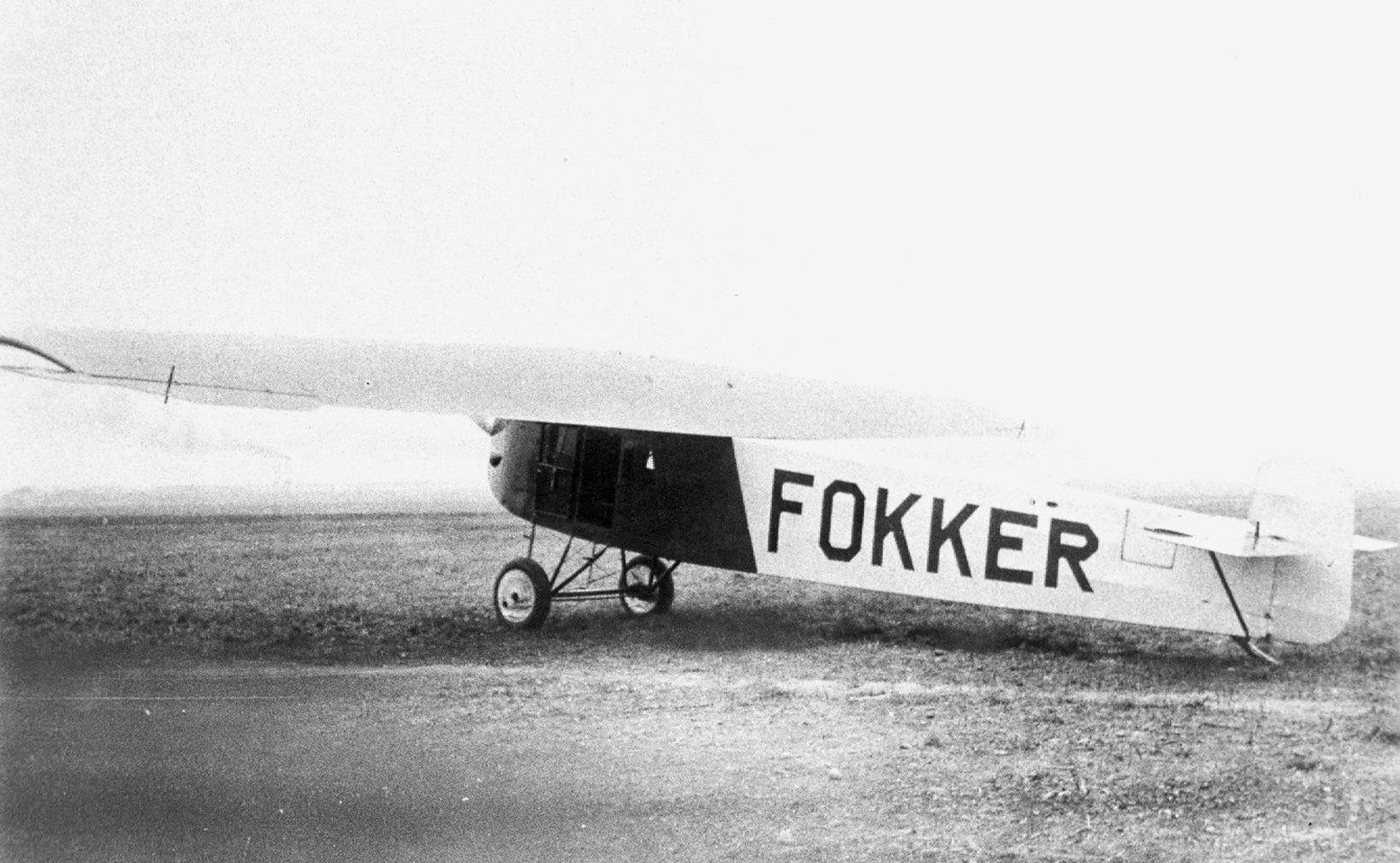

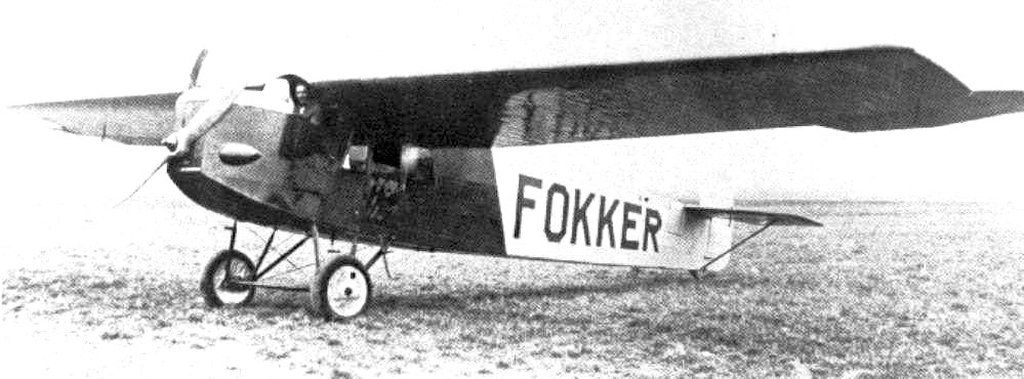

The name FOKKER prominent on the fuselage of the cn 1600.
Button
068

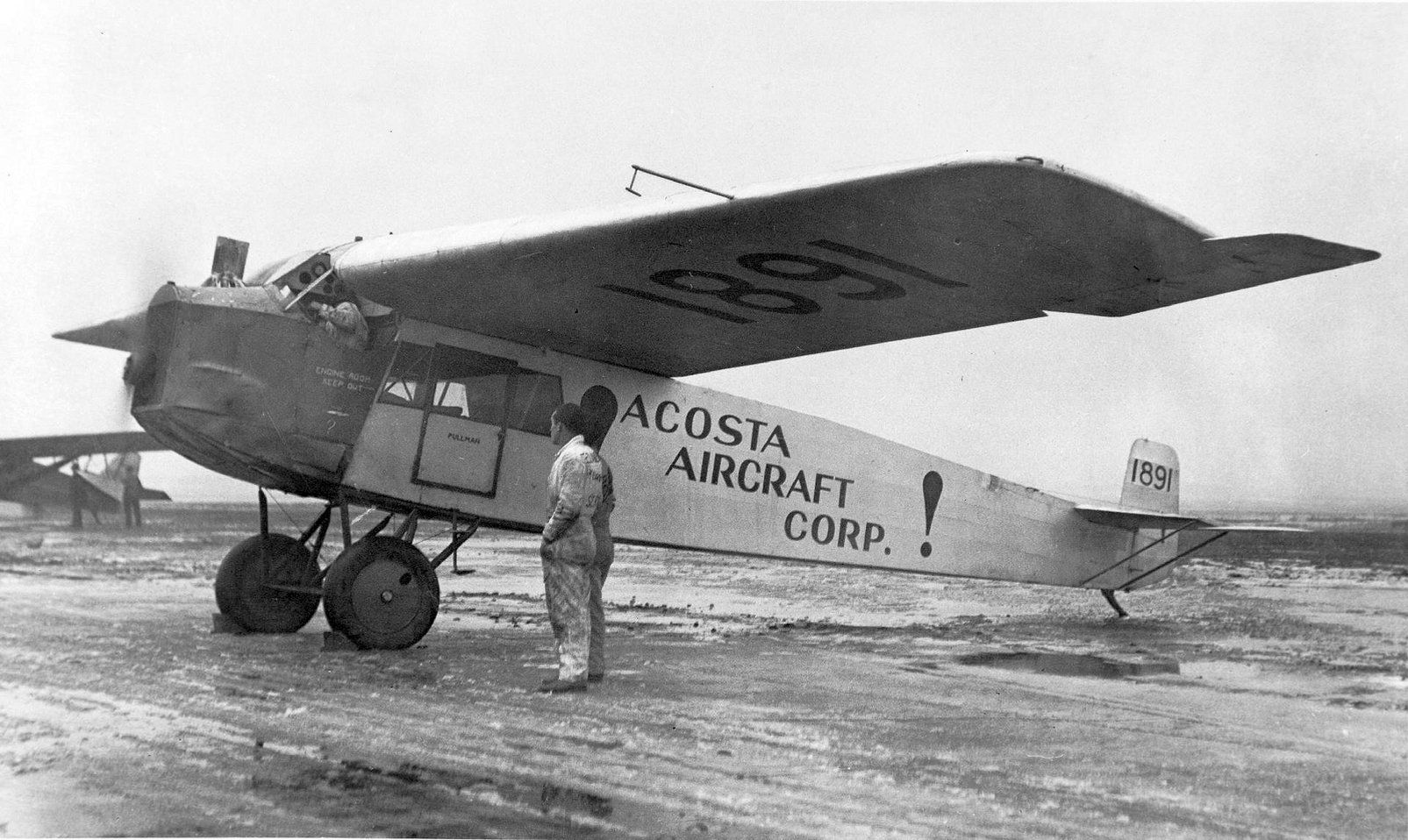

The F.III cn 1603 with the American registration 1891 in the USA.
Button
069

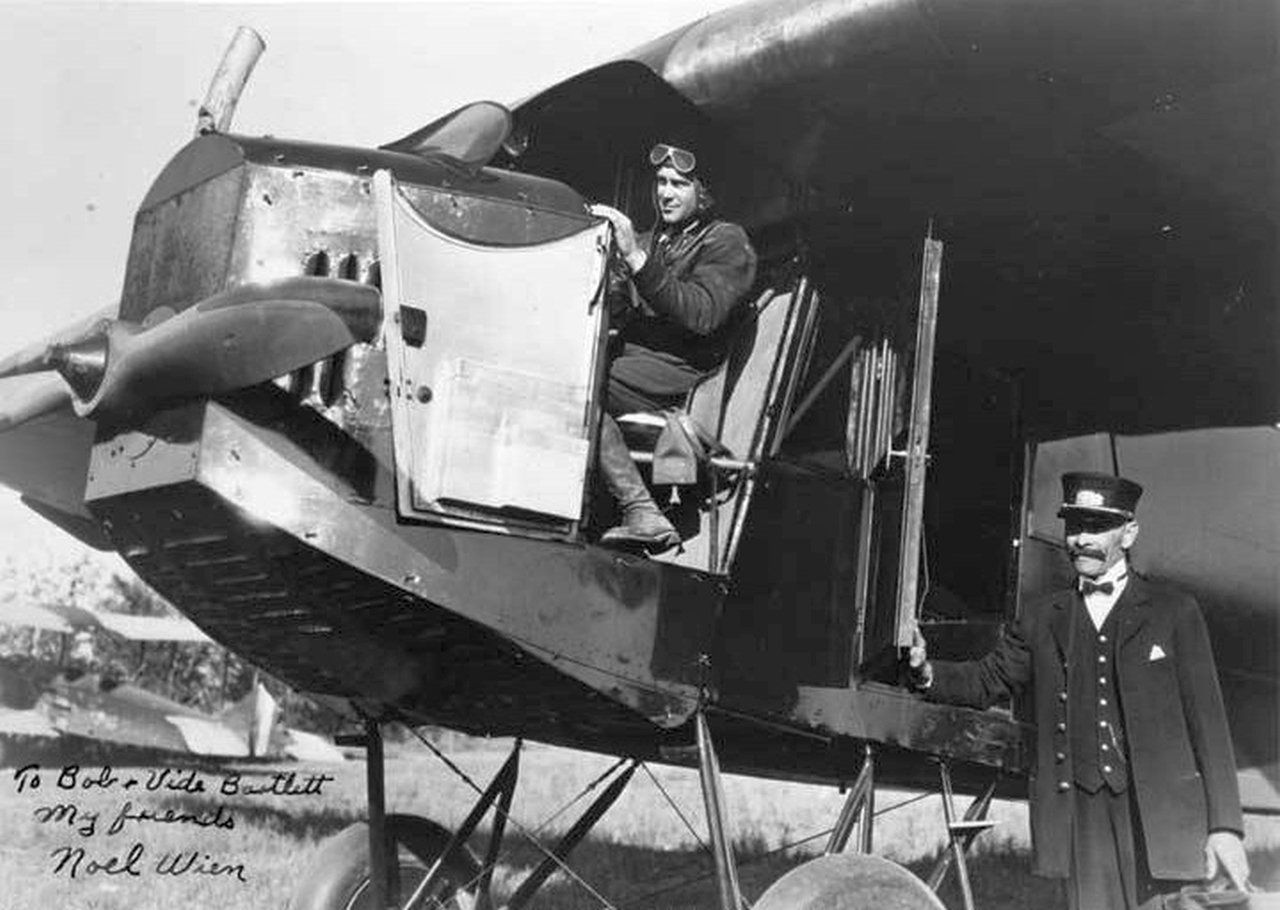

Noel Wien, founder of Wien Alaska Airlines, in an F.III in the USA.
Button
070

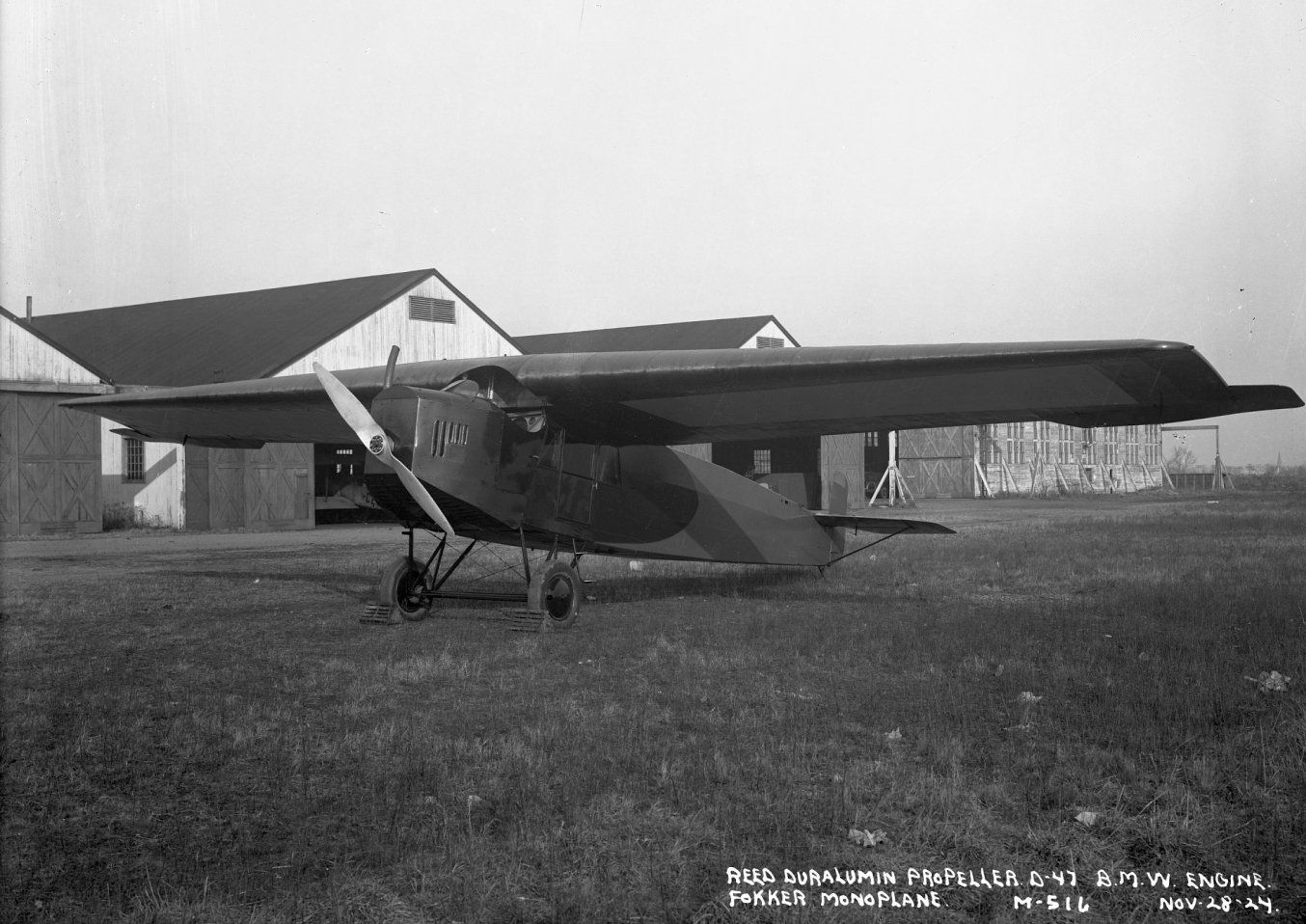

The text at the bottom of this photo says that the firm Reed developed this aluminum propeller for the F.III.
Button
071

Måleri F.III H-Marc with cn 1604.
Button
072

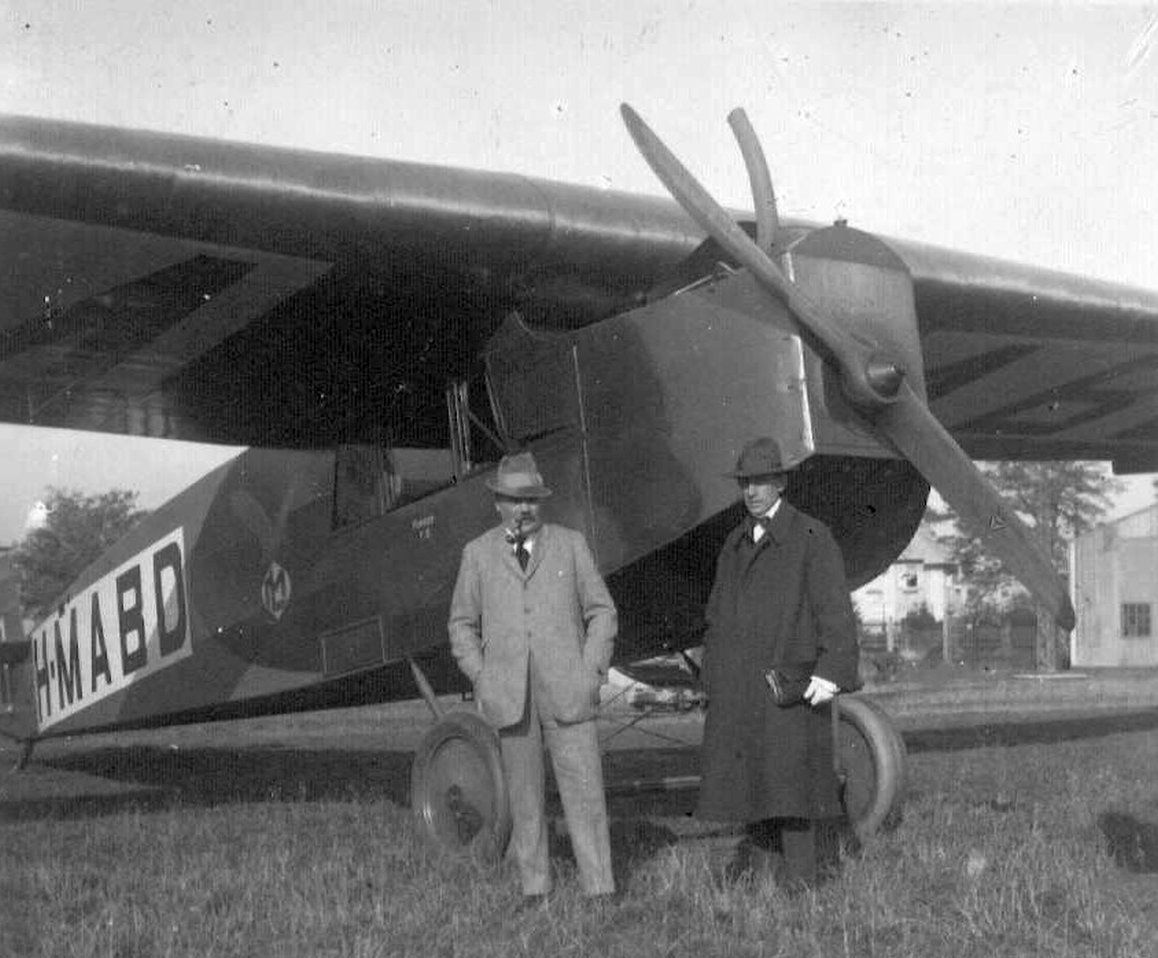

Malert F.III H-MABD with cn 1605.
Button
073

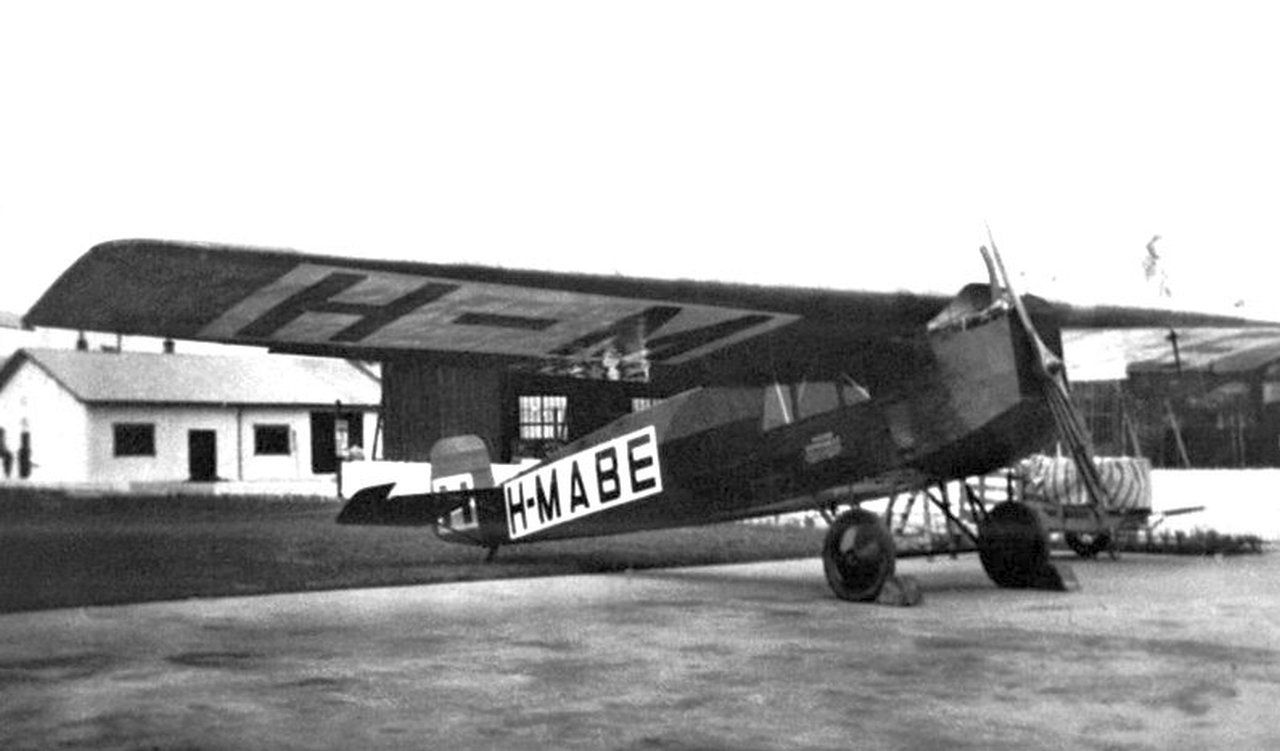

Malert F.III H-MABE with cn 1606.
Button
074

The F.III with cn 1650 was the first F.III with a Rolls Royce Eagle VIII engine with 360 hp.
Button
075

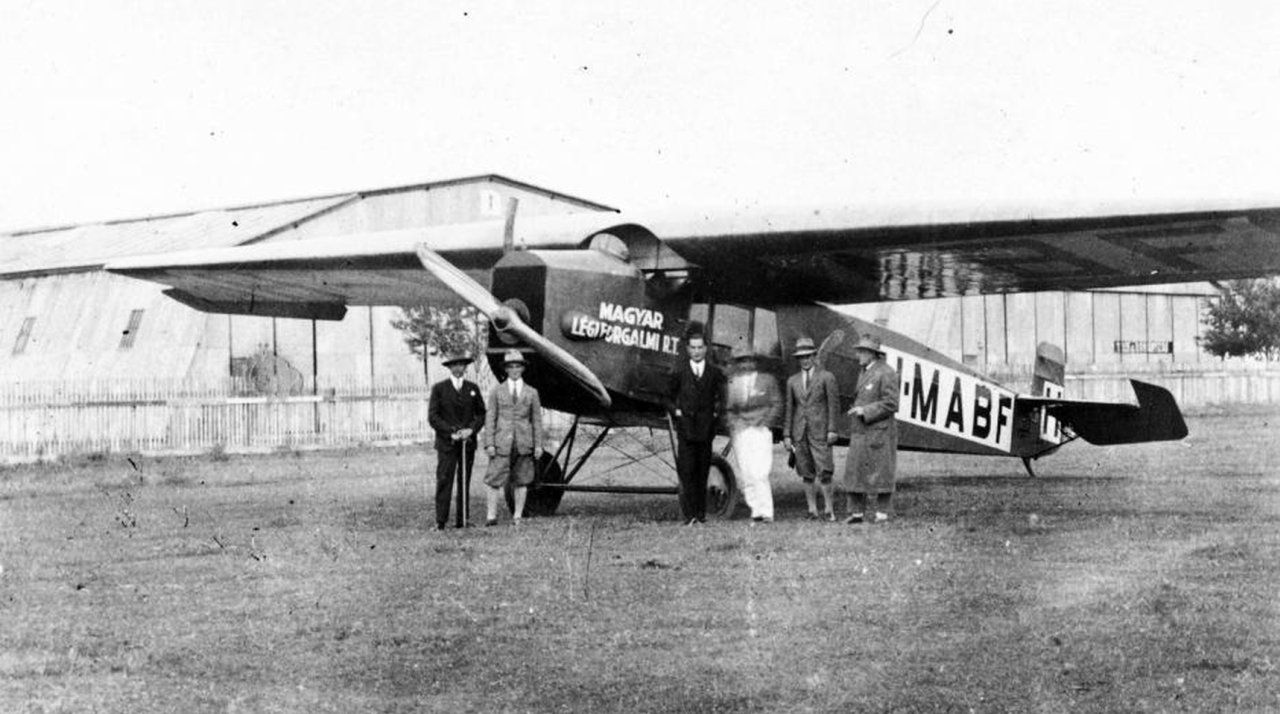

Malert F.III H-MABF with cn 1607.
Button
076

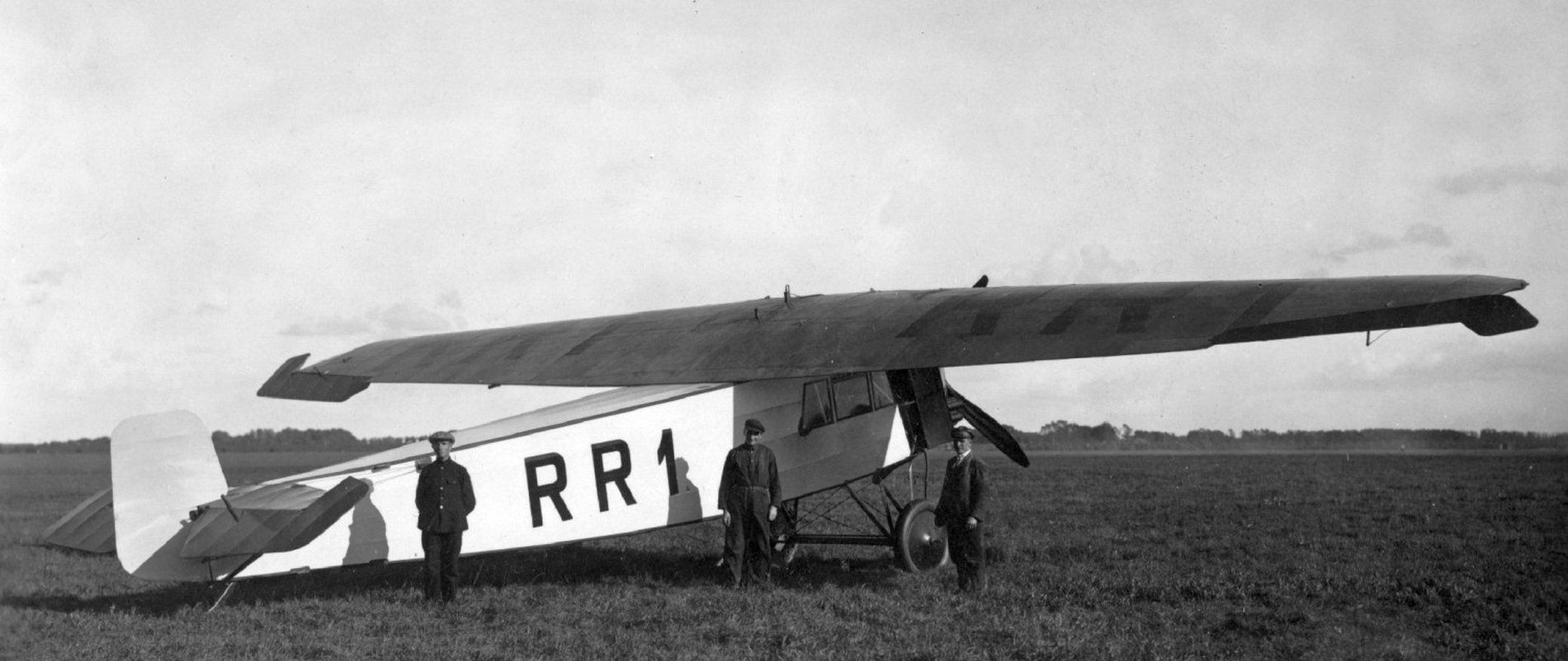

The RR 1 with cn 1652 for the German-Russian Deruluft.
Button
077

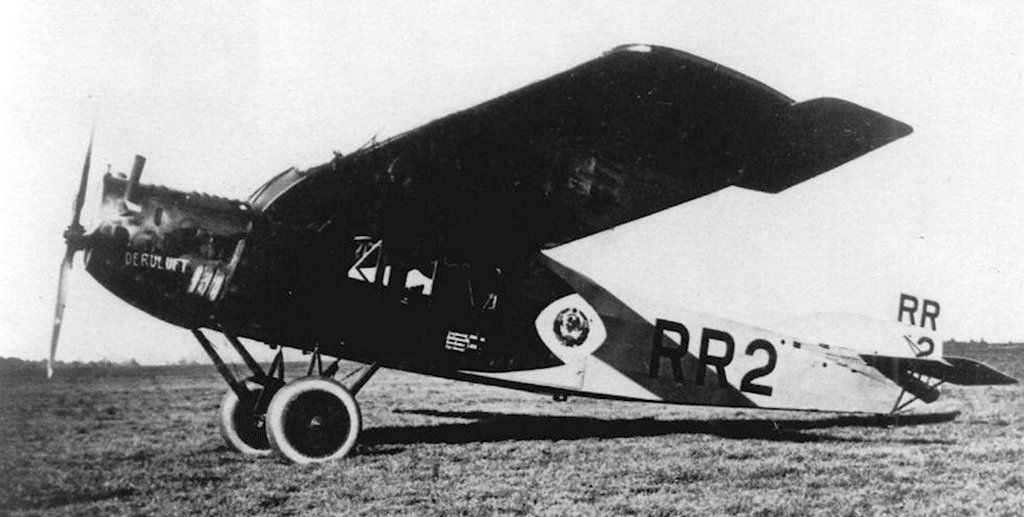

The RR 2 with cn 1653 for Deruluft, designed as an umbrella wing (the wing is located above the fuselage but not directly attached to it, but connected to the fuselage with a special construction.), with a four-bladed propeller.
Parasol cover
078

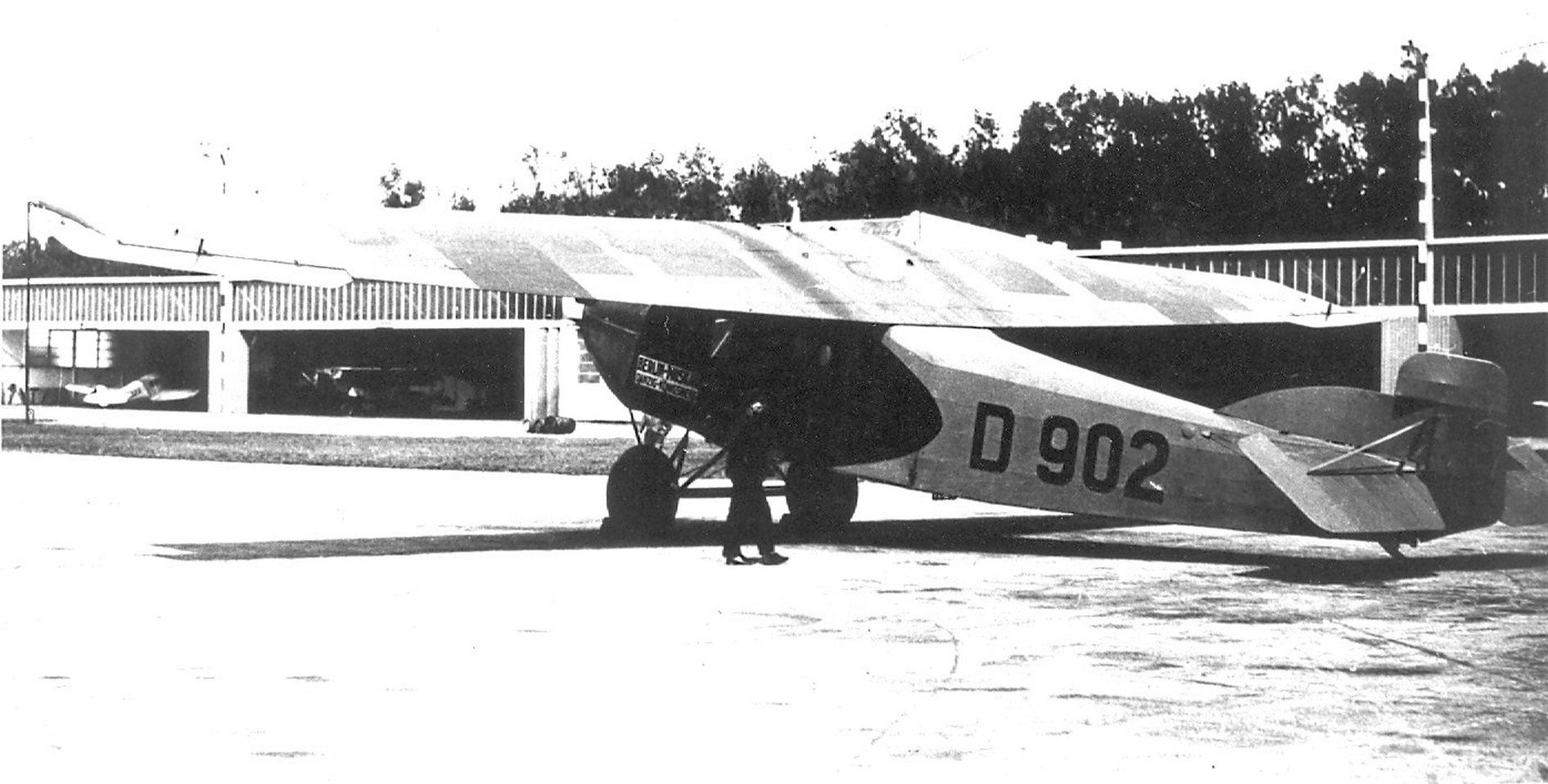

The cn 1653 as D 902 for Deruluft.
The aircraft was rebuilt by Karl Grülich into Grülich V-1, a modified version of the F.III.
Button
079

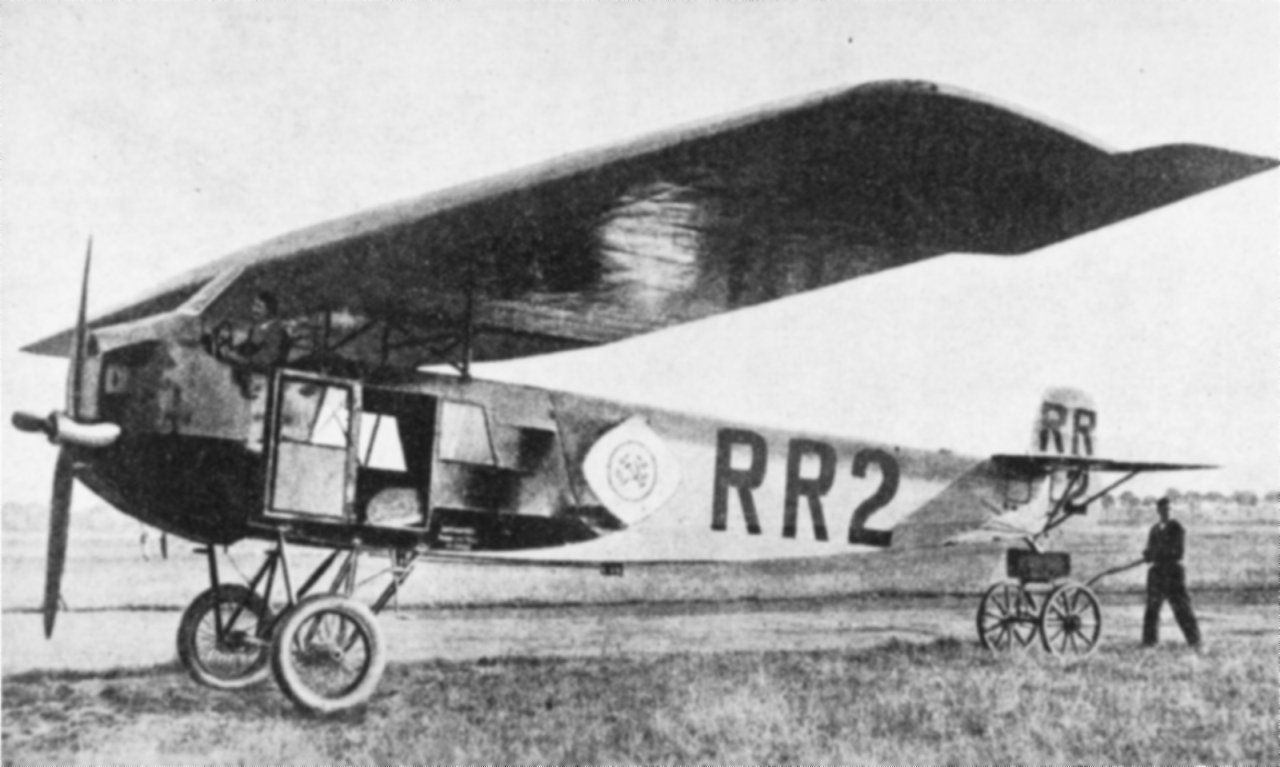

The Grülich V.1 as RR 2 with cn 1653 for Deruluft.
The tail, cockpit and nose have been redesigned.
Button
080

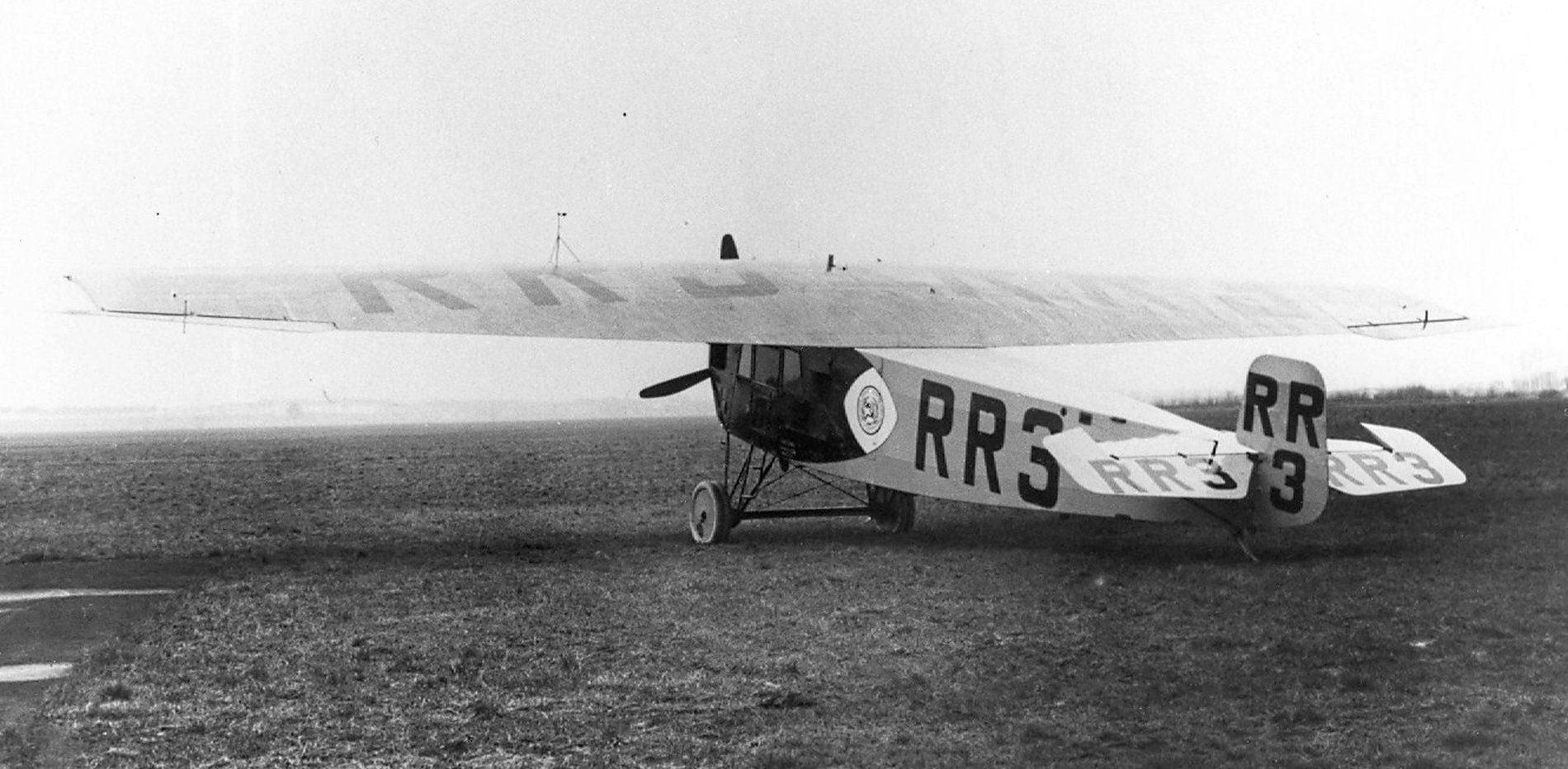

The RR 3 with cn 1654 for Deruluft.
Button
081

The F.III RR 5 with cn 1655 for Deruluft, here shown with an umbrella wing construction.
Button
082

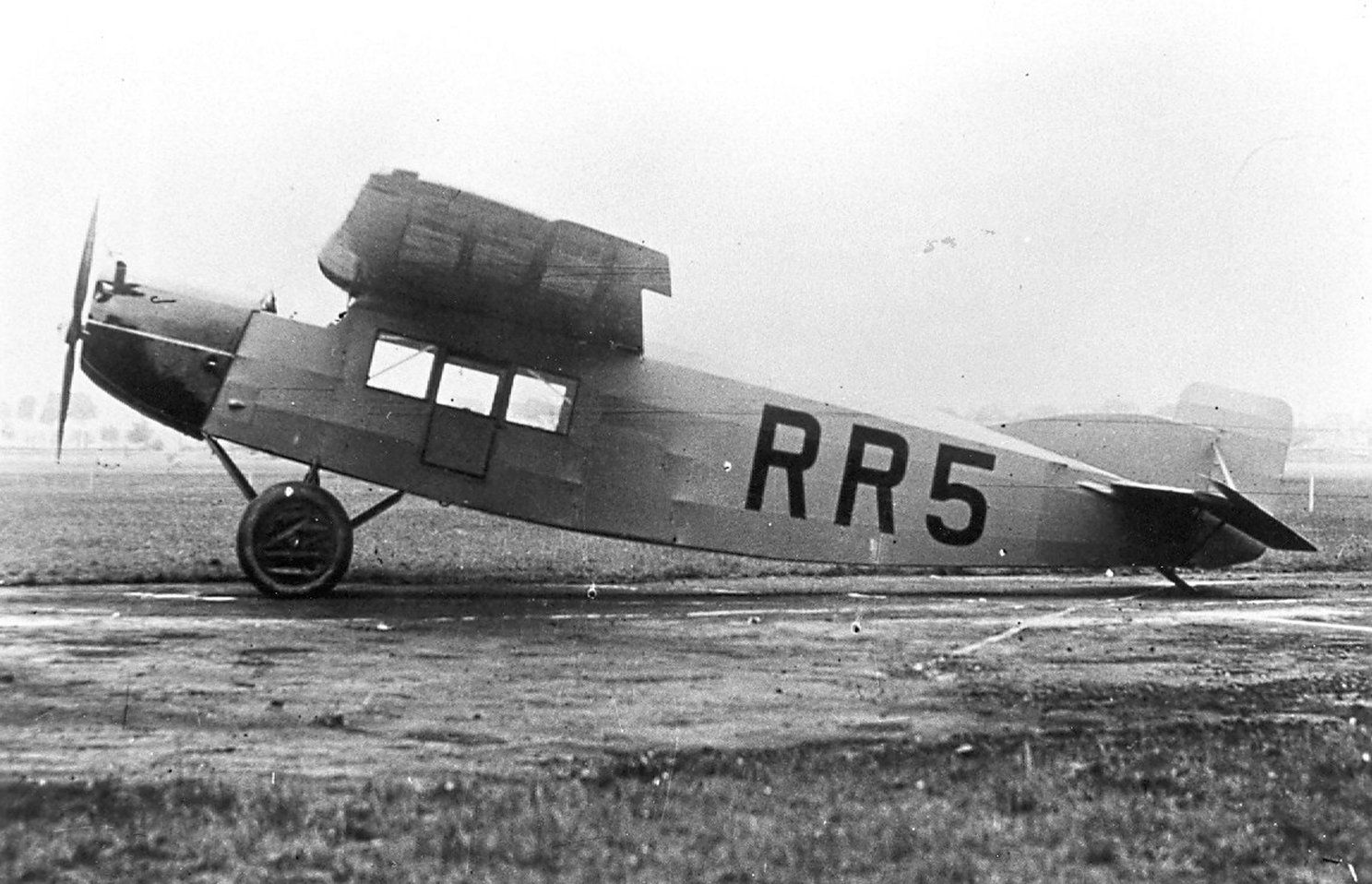

The RR 5 with cn 1655 converted to Grülich V-1.
Button
083

The RR 6 with cn 1656 from Deruluft designed as an umbrella wing.

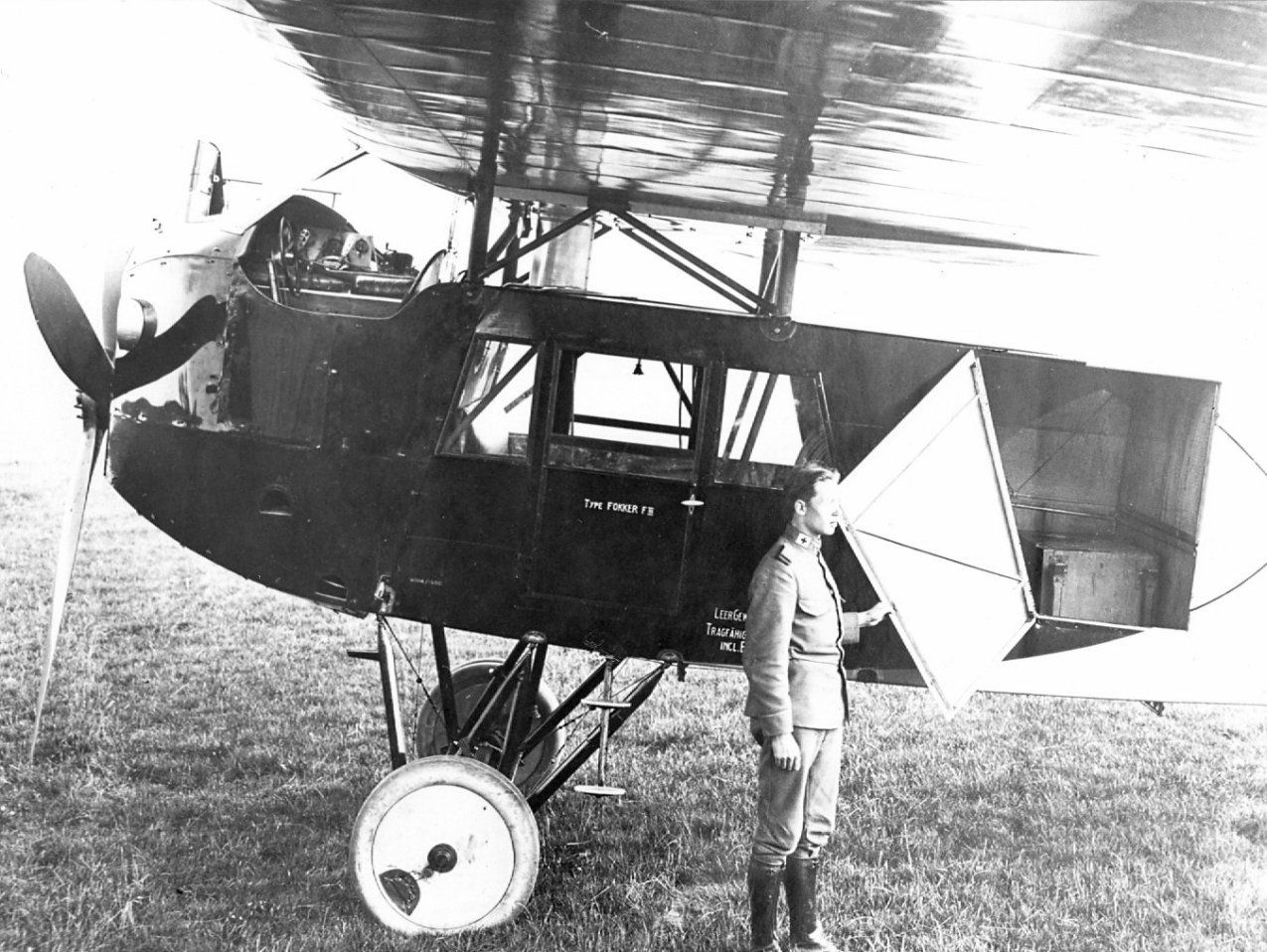

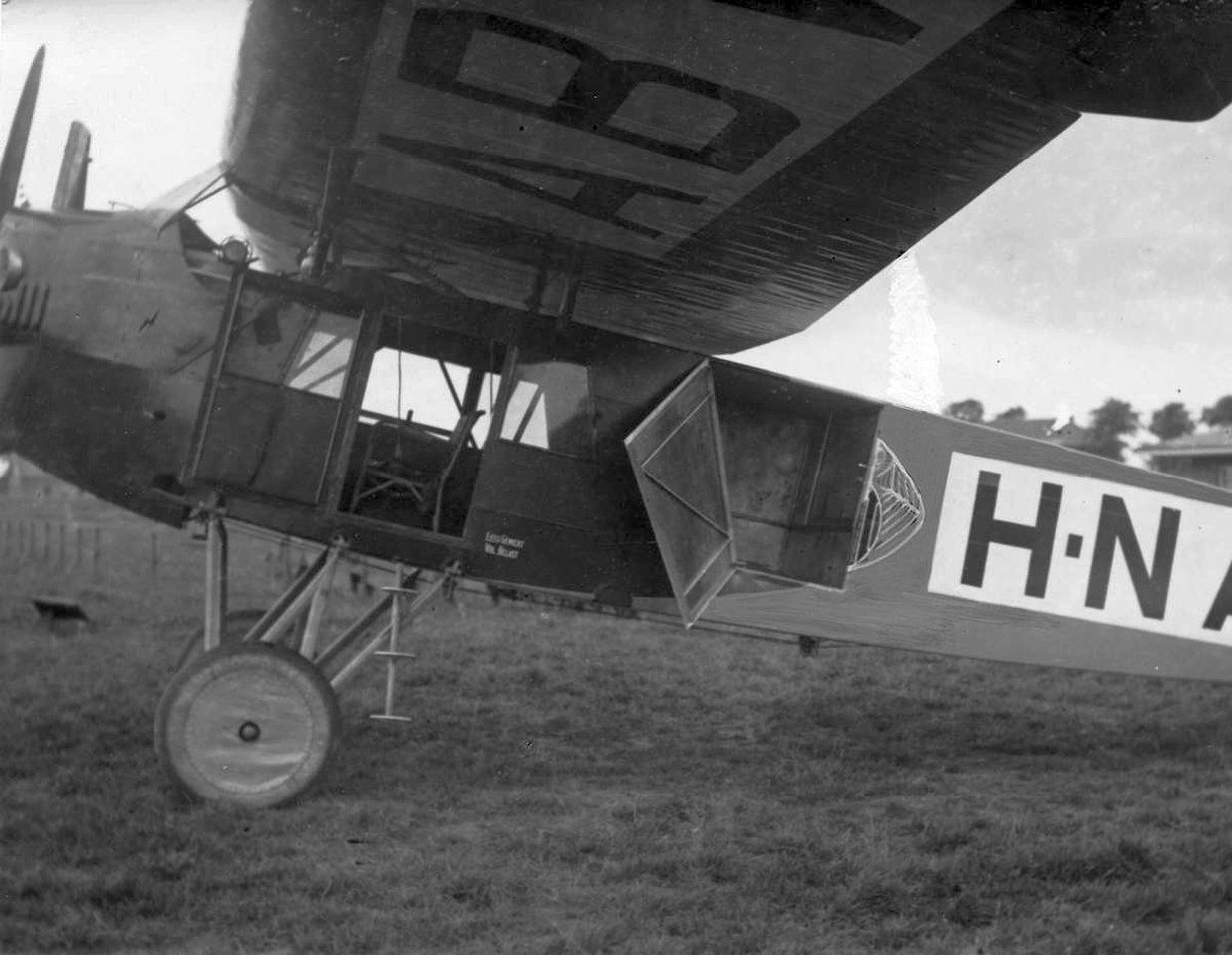

The cargo / baggage hold of the F.III is clearly visible in this photo.
Button
084

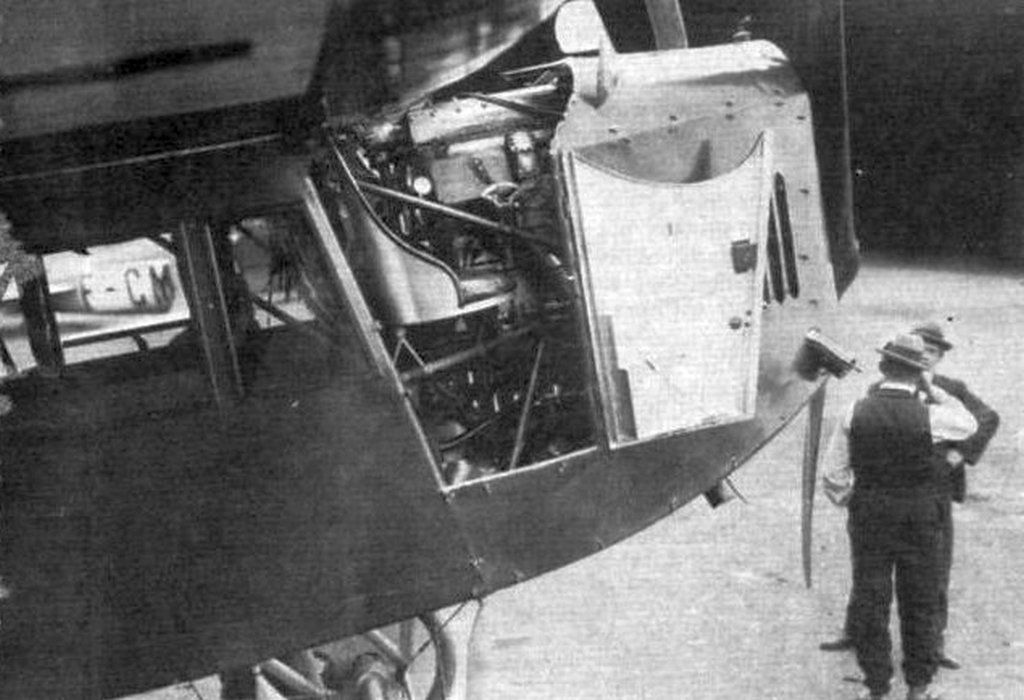

The nose of the Deruluft RR 6 with cn 1656, equipped with the Rolls Royce Eagle engine.
Button
085

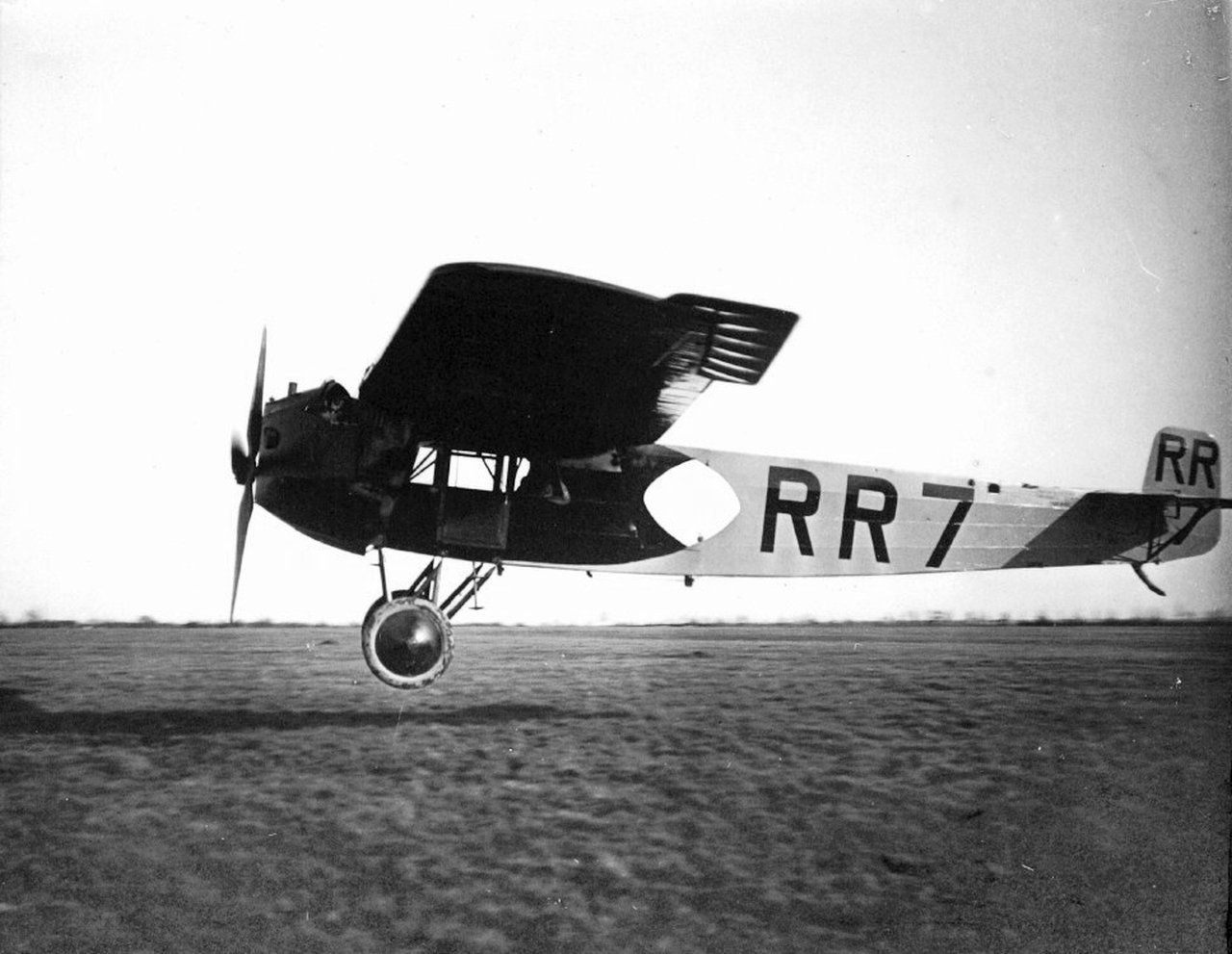

The Deruluft RR 7 with cn 1657.
Button
086

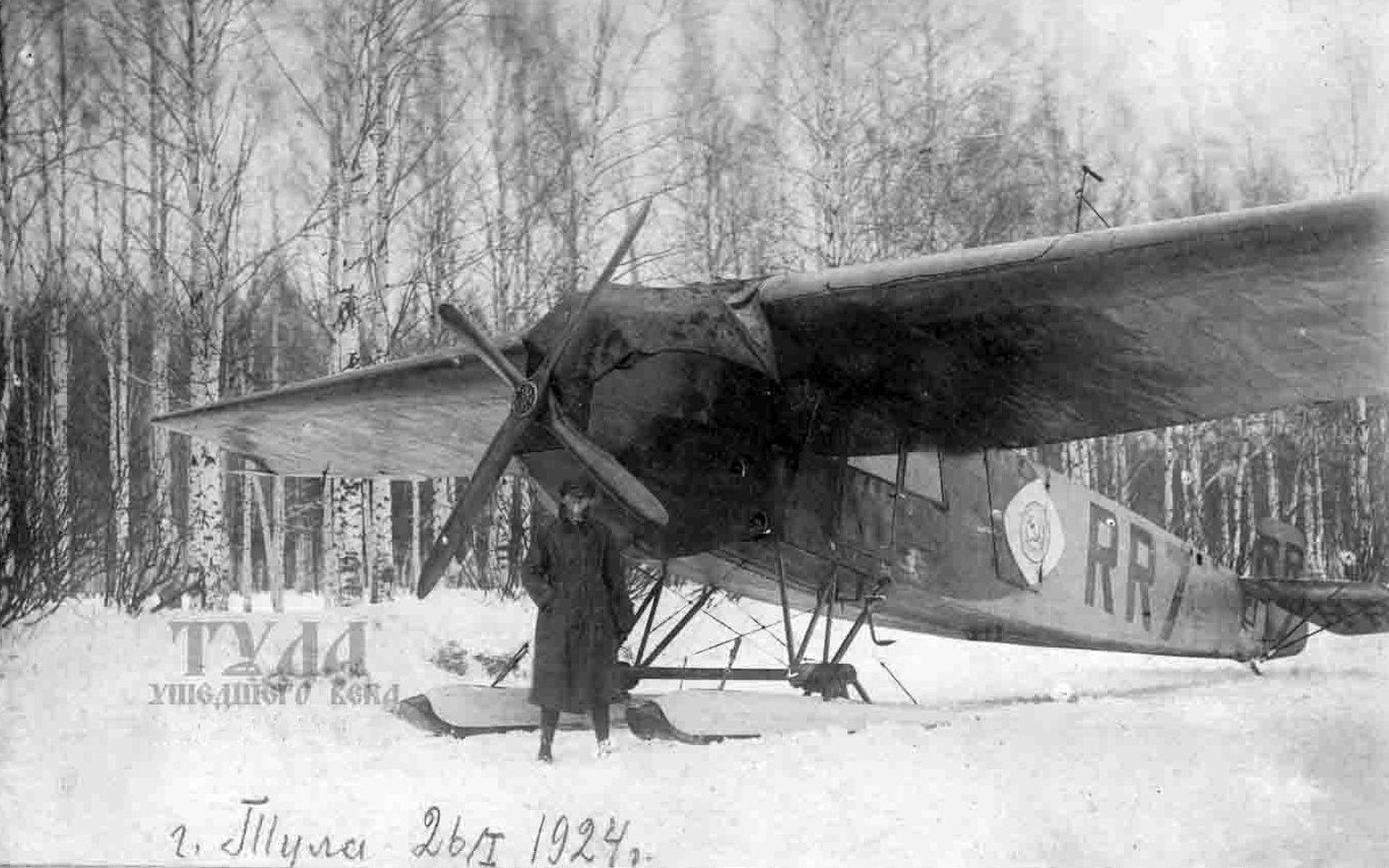

The RR 7 in this photo from Russia with snow skis in the snow.
Button
087

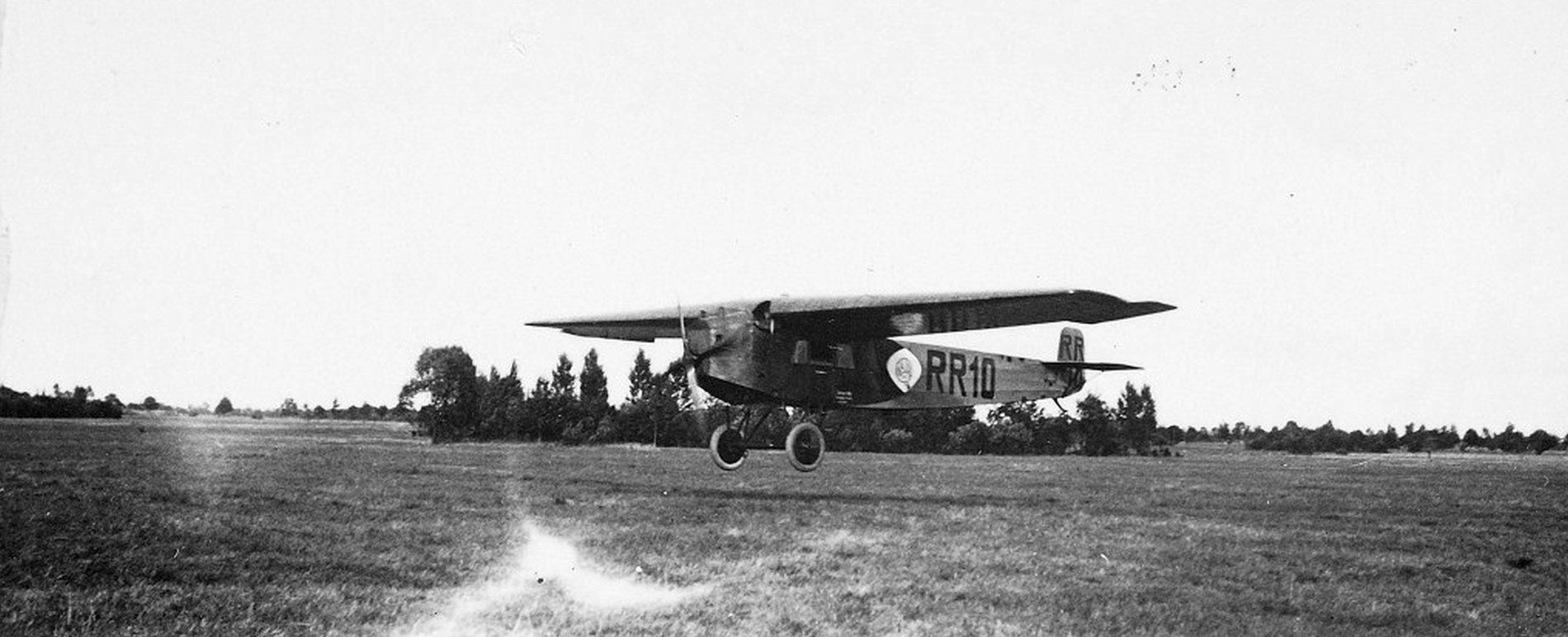

The Deruluft RR 10 with cn 1660 during landing.
Button
088

The umbrella wing version of the KLM F.III H-NABU cn 1662.
Umbrella wing means that the wing does not rest on the fuselage but is positioned above the fuselage by metal rods, in this case, about 20 cm.
Button
089

The four-bladed propeller on the Rolls Royce engine of the KLM F.III H-NABU.
Button
090

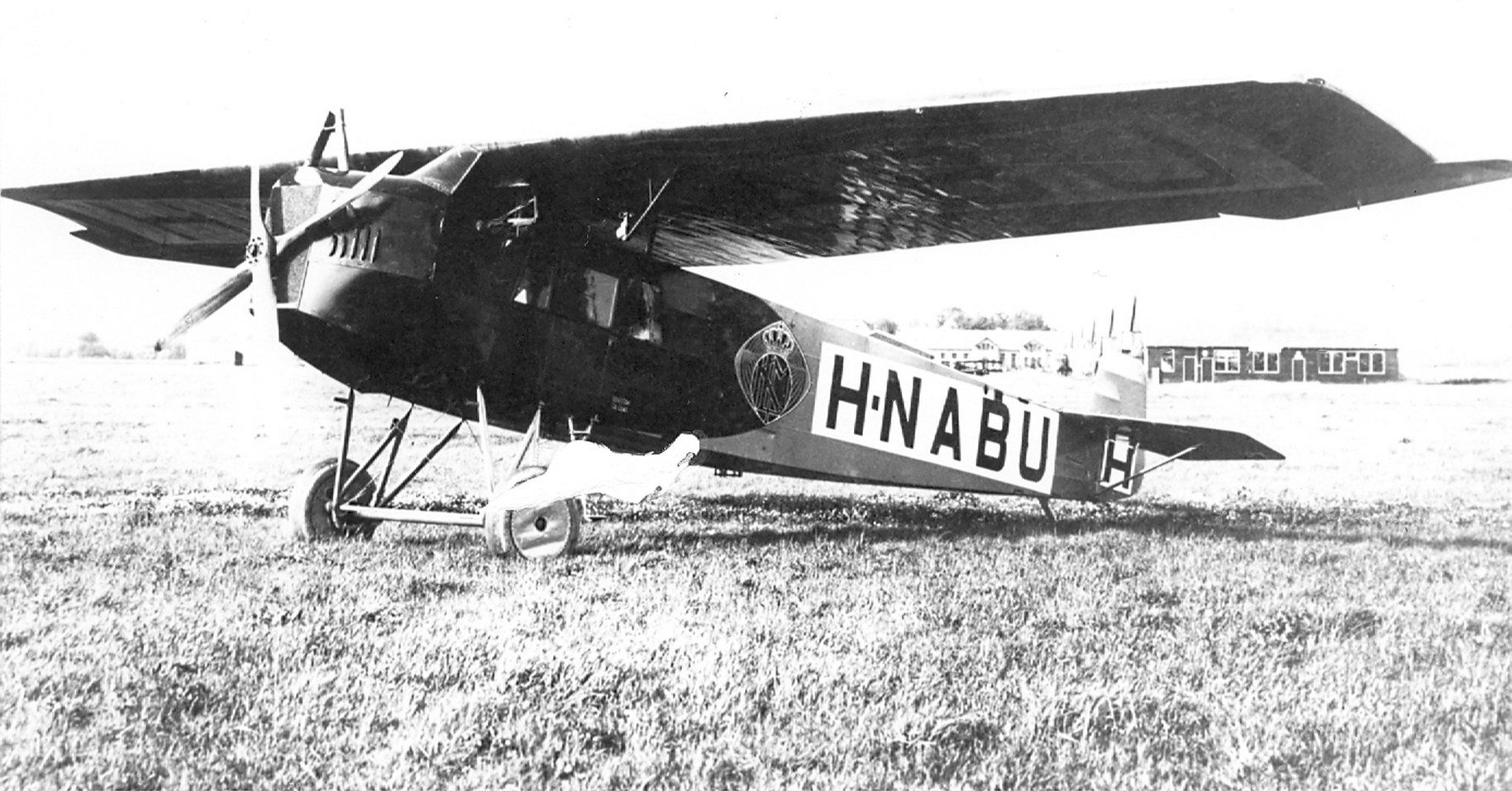

The KLM F.III H-NABU with cn 1662.
Button
091

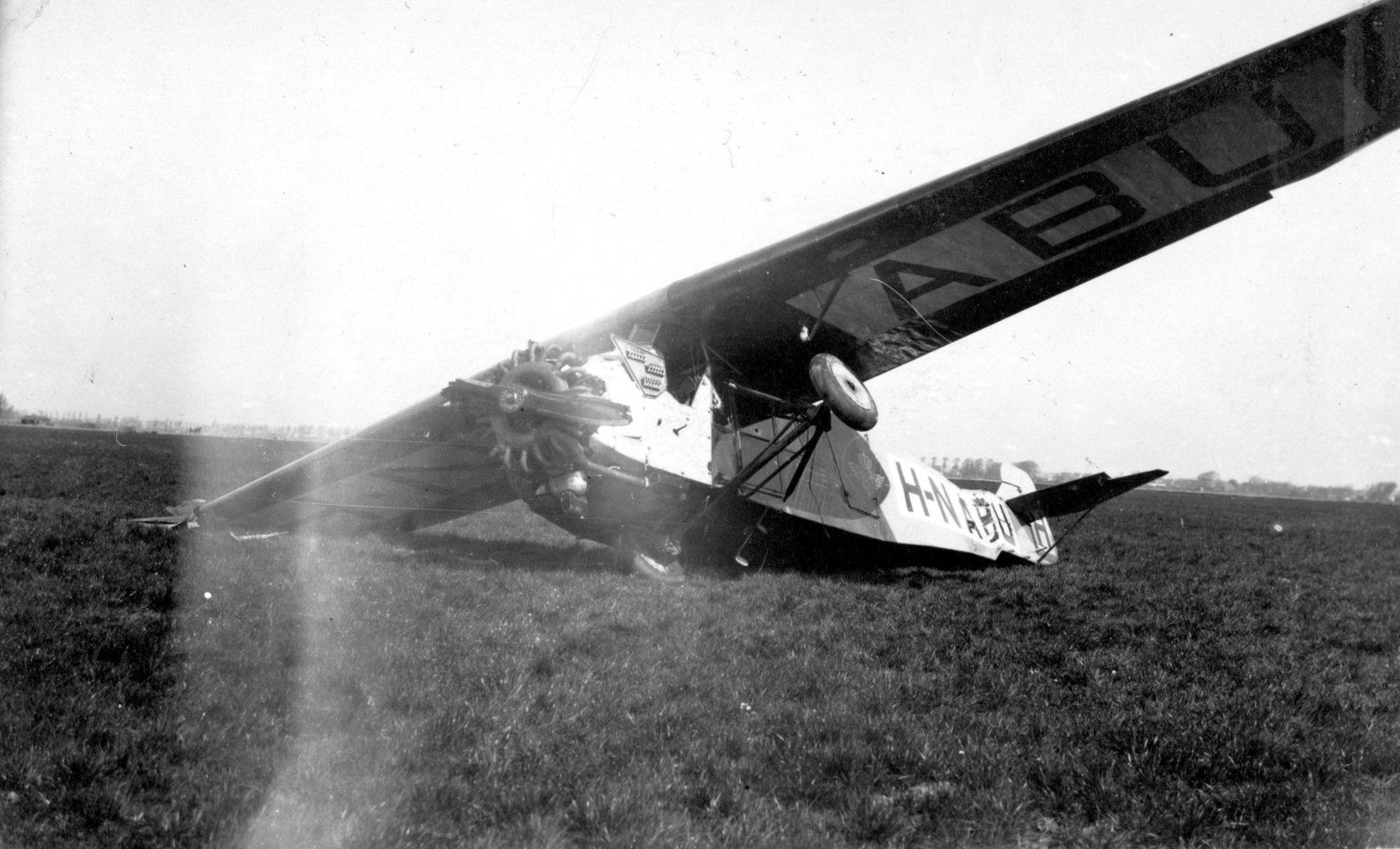

Crash of the H-NABU, now with 440 HP Bristol Jupiter radial engine.
Button
092

The 440 HP Bristol Jupiter of the H.NABU.
Button
093

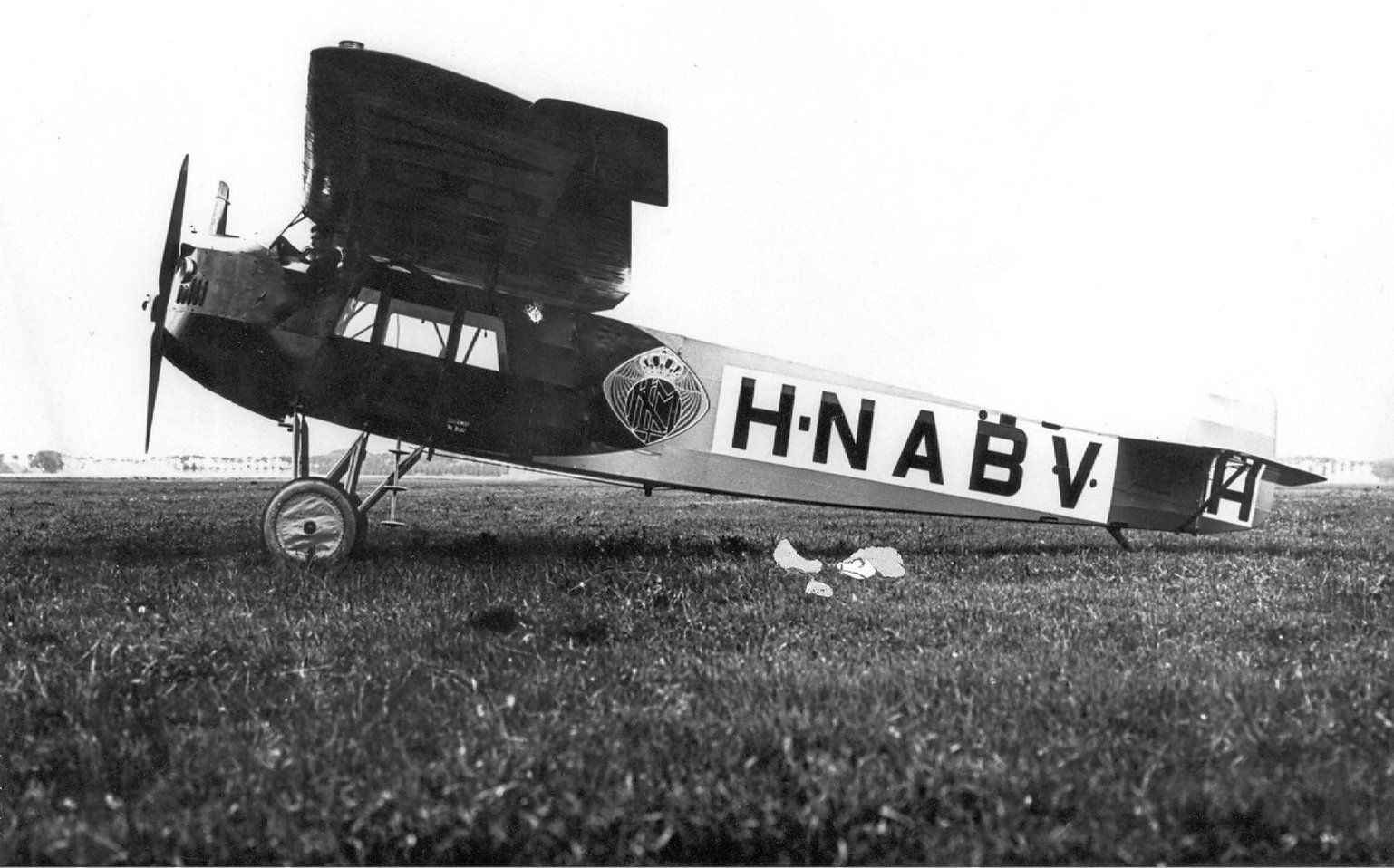

The KLM F.III H-NABV with cn 1663.
Button
094

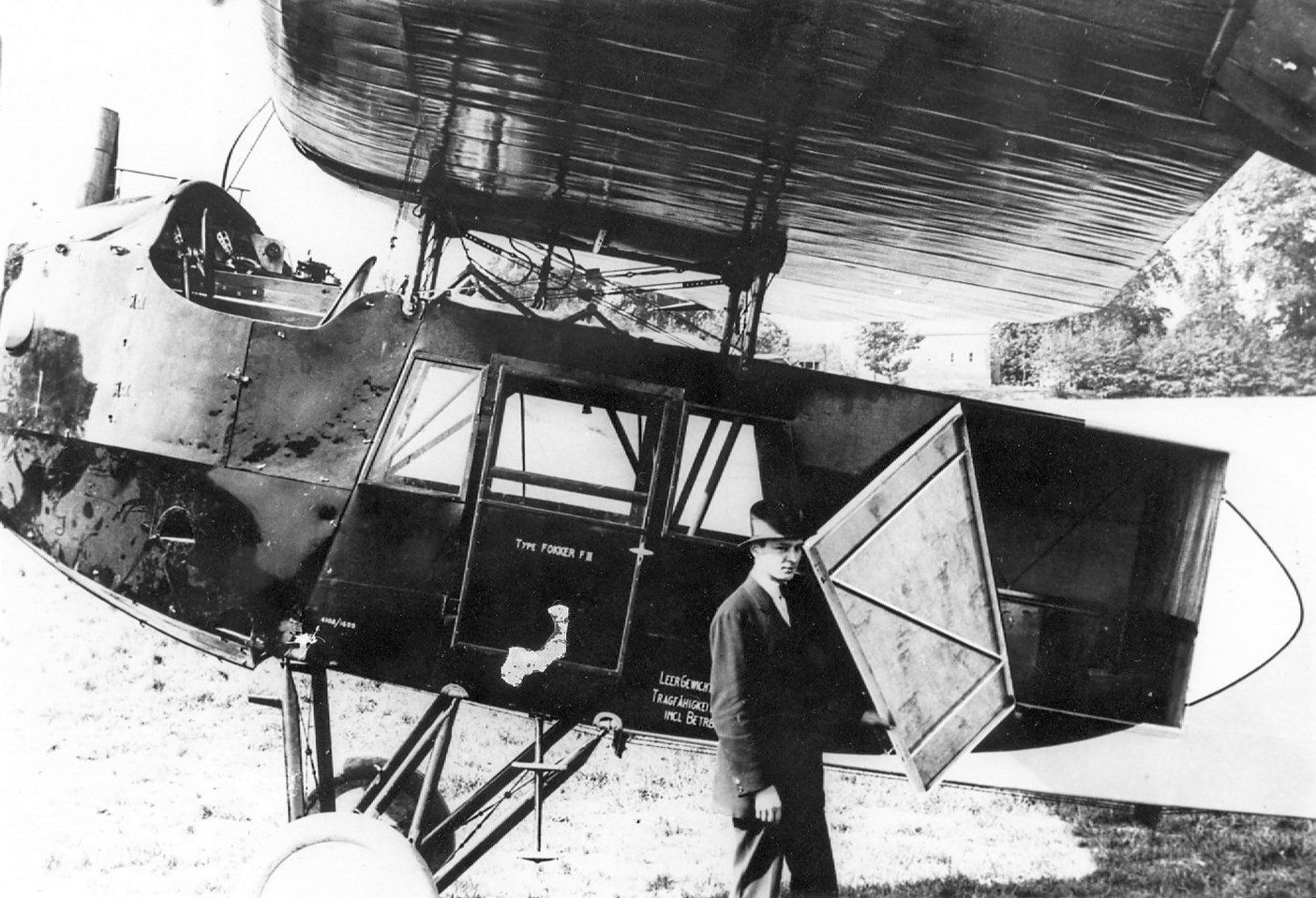

Cabin with wicker seats and the cargo / luggage compartment of the H-NABV.
Button
095

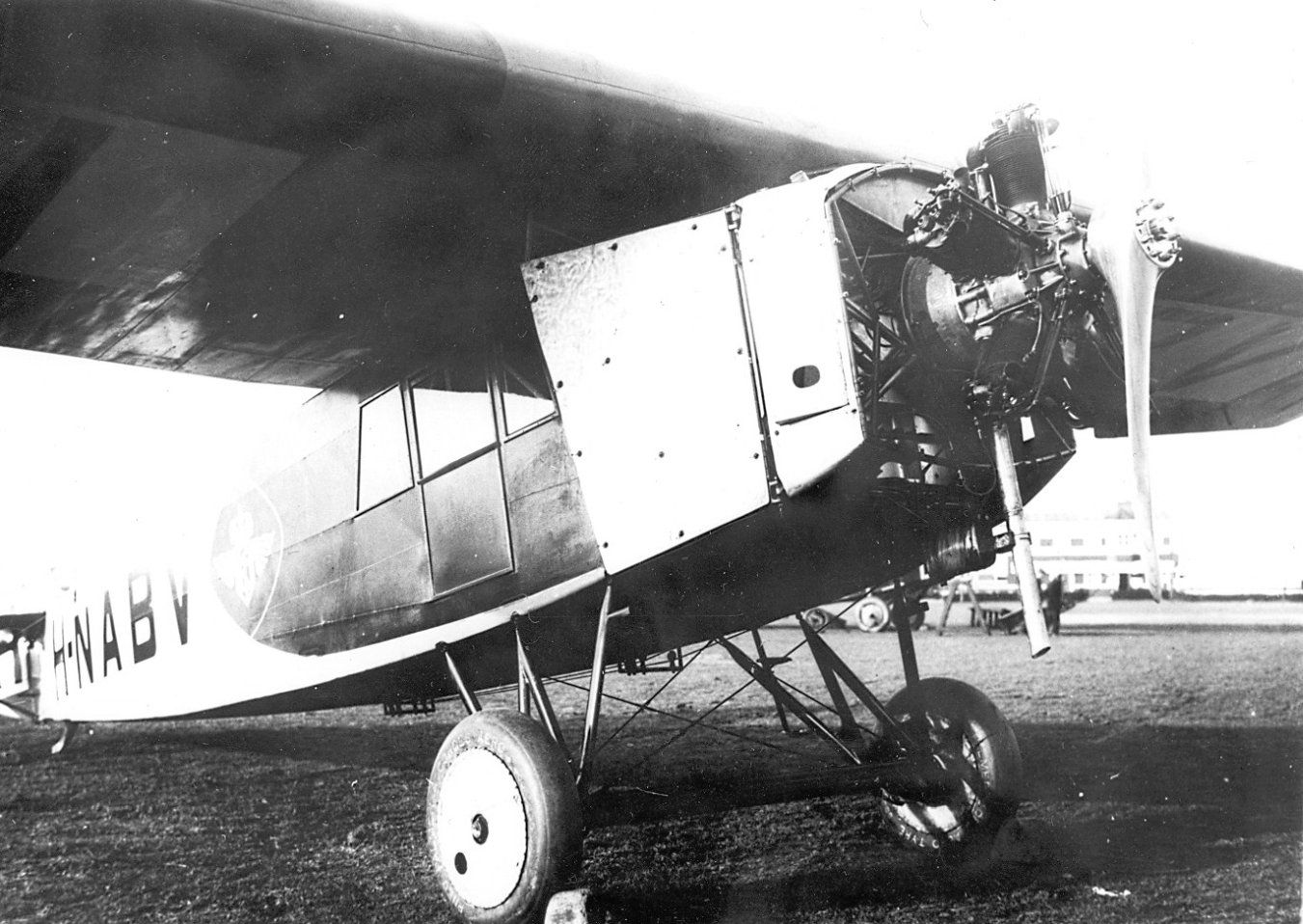

Yet another engine on the H-NABV; now a 240 hp Gnome Rhône Titan engine.
Button
096

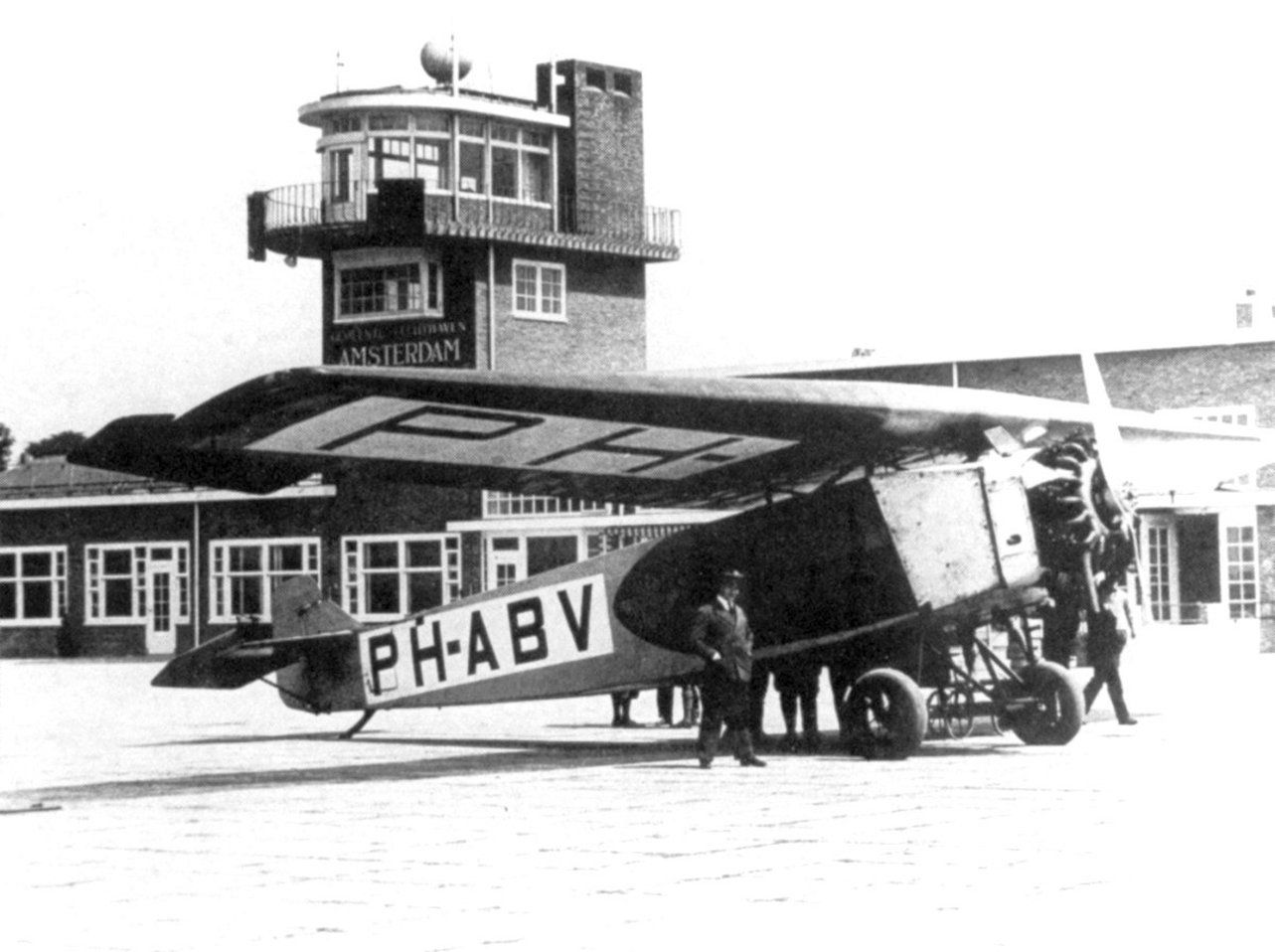

The “H” registrations disappear and it is now the same aircraft with PH-ABV cn 1663.
H and PH registrations
097

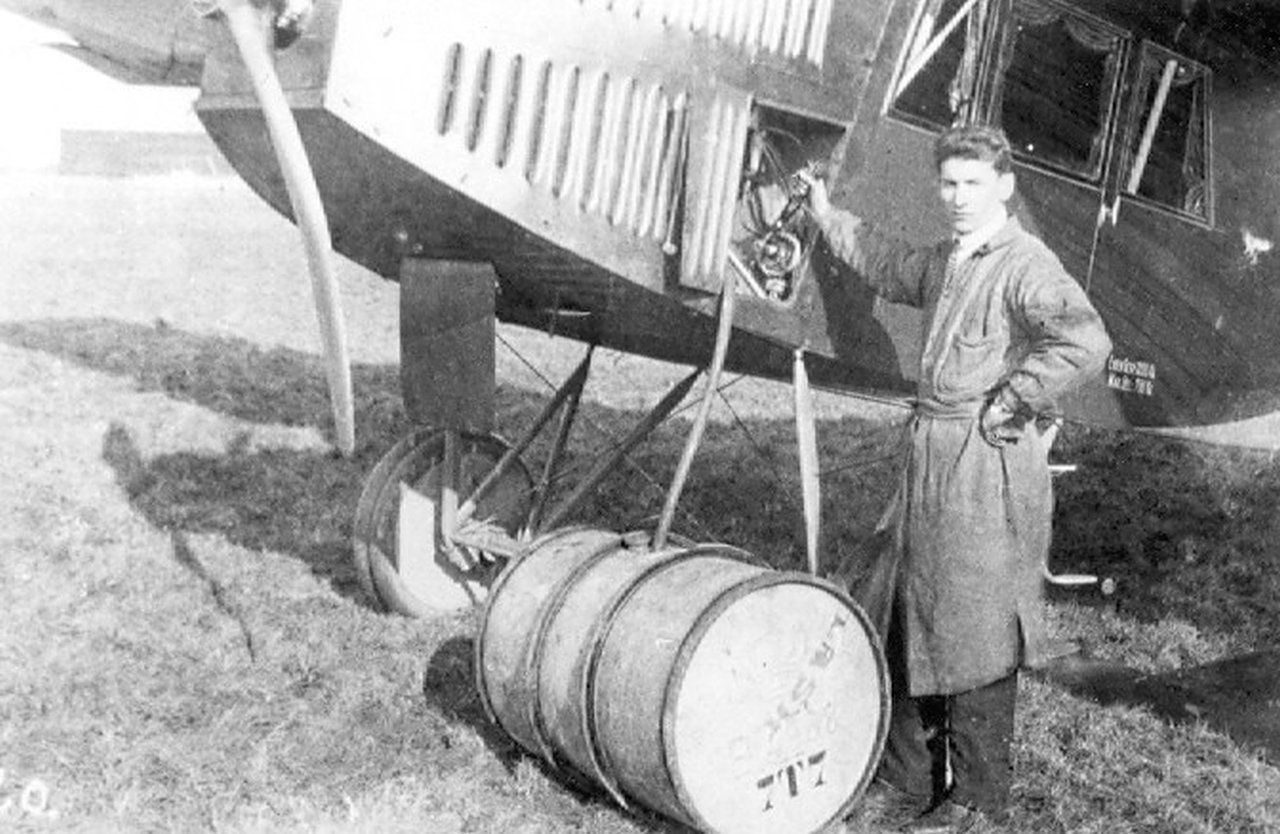

The F.III had a built-in hand pump enabling refueling.
Button
098

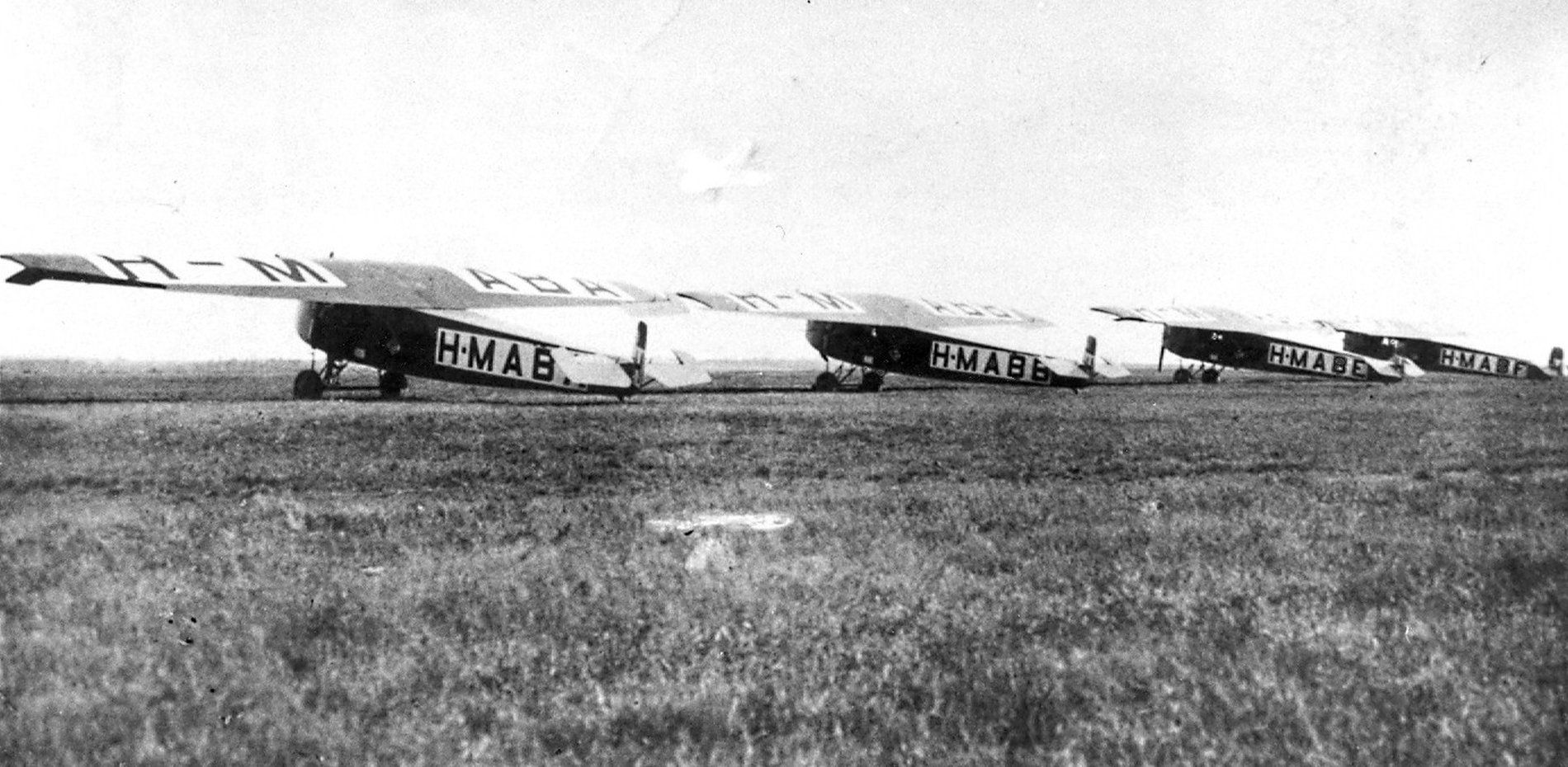

Flightline of four Hungarian Malert F.III's.
Button
099

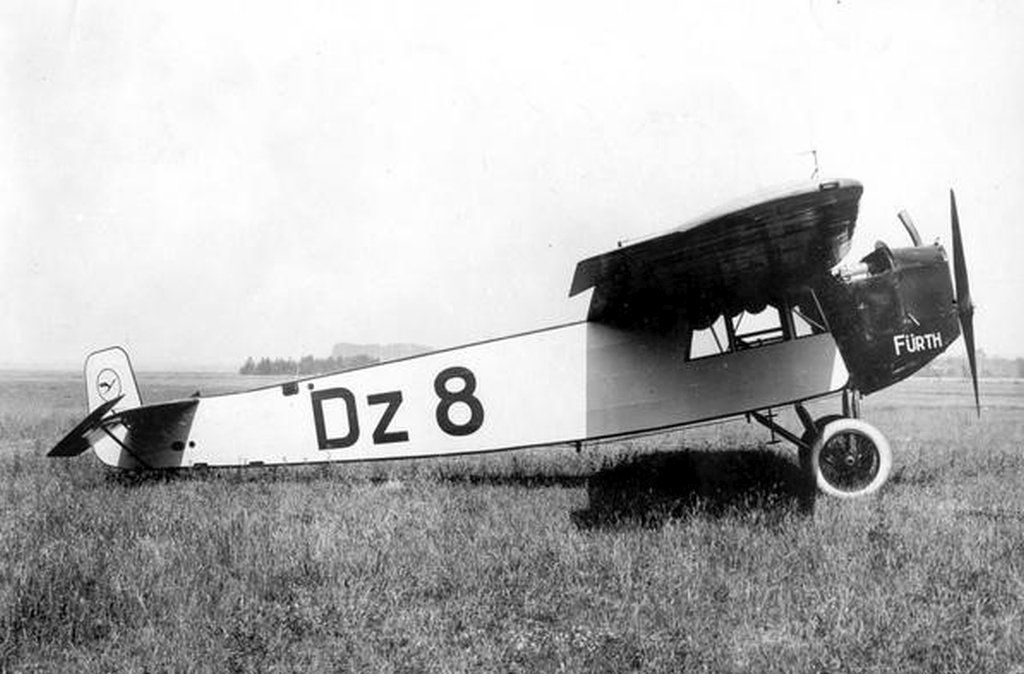

The Dz 8 cn 1531 built under license by Karl Grülich for the Danziger Luft Reederei.
Button
100

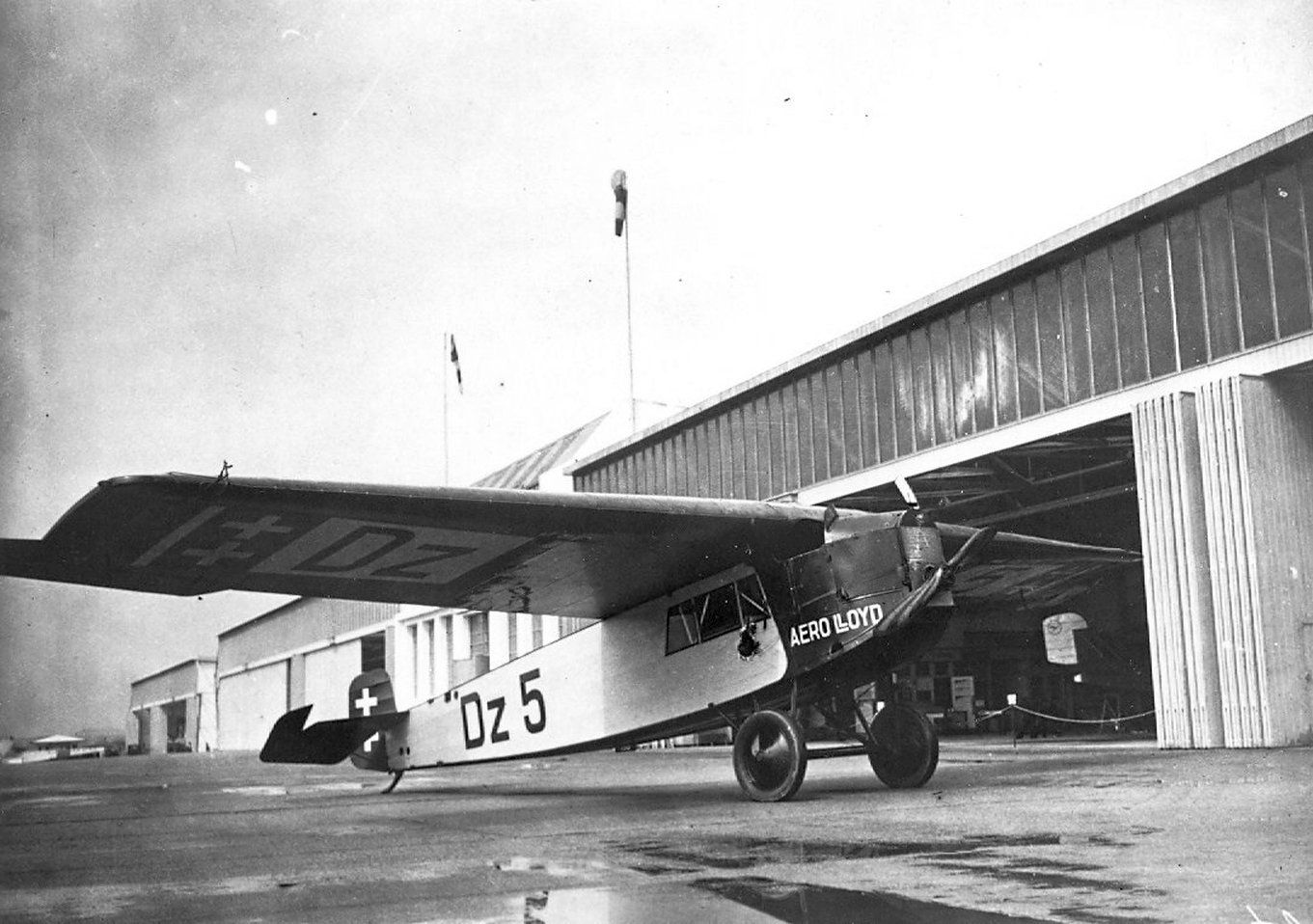

The Dz 5 cn 1539 of the Danziger Luft Reederei, Grülich license.
Button
101

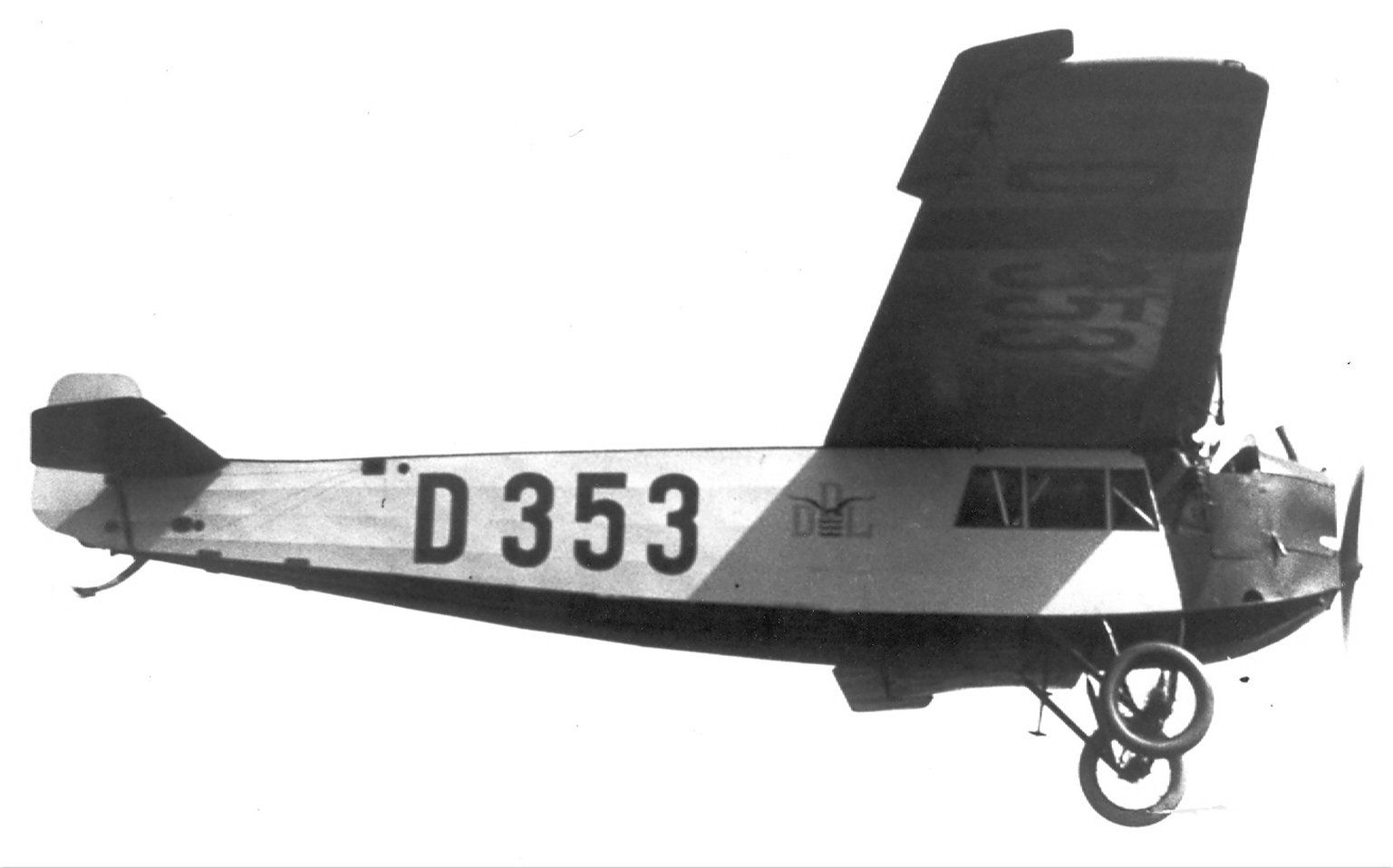

The D 353 with cn 1551.
On the fuselage the logo of Det Danske Luftfartselskab, Grülich license.
Button
102

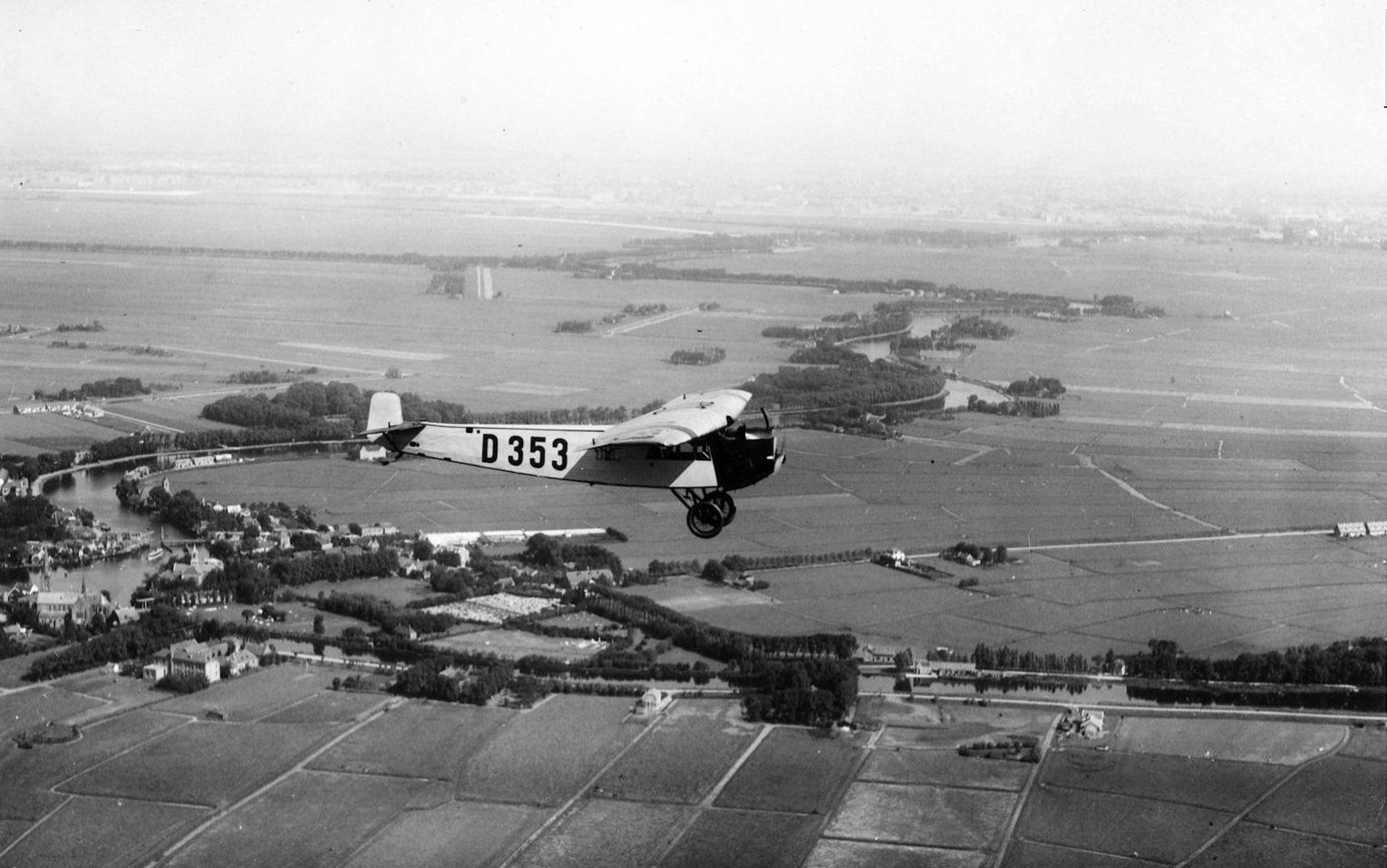

The D 353 in the Netherlands, above Ouderkerk aan de Amstel, Grülich license.
Button
103

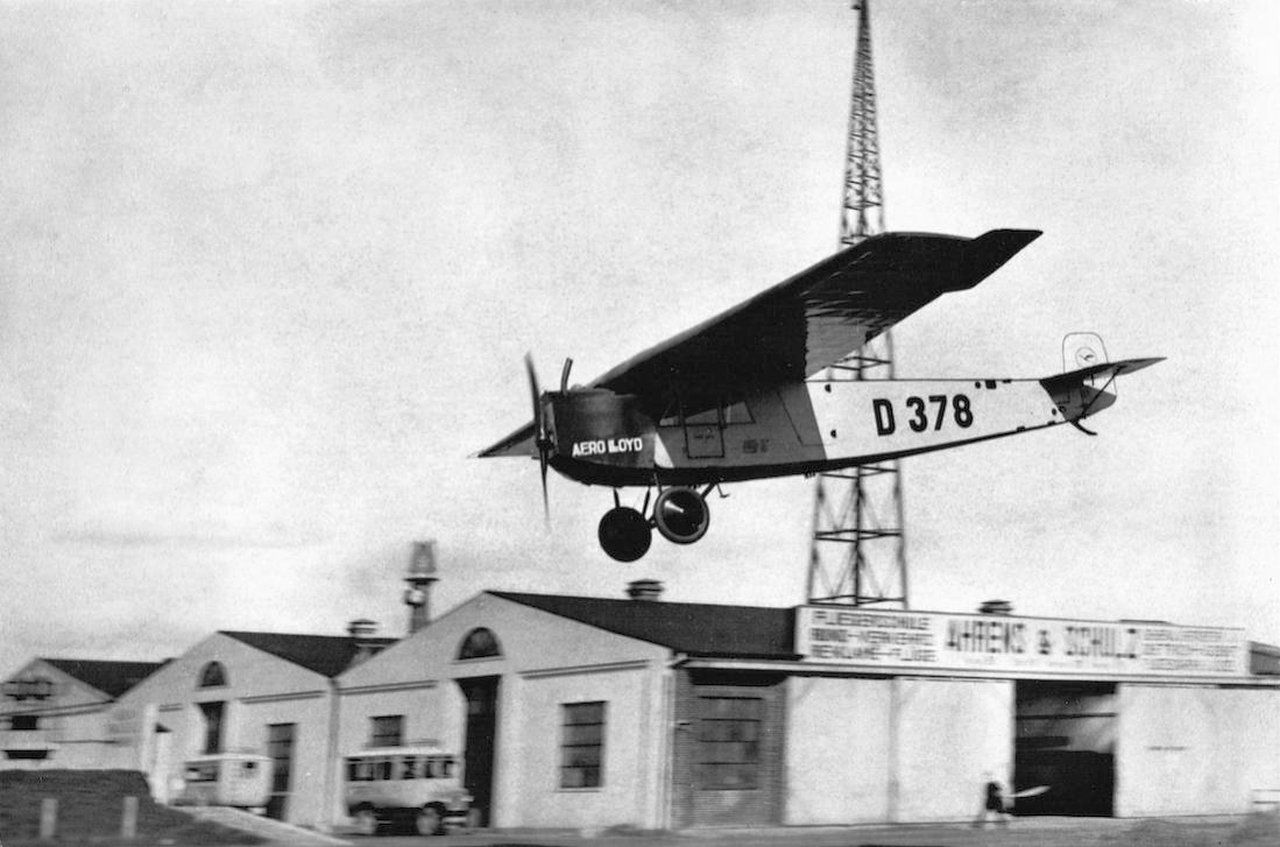

Lufthansa D 378 with cn 1552, Grülich license.
Button
104

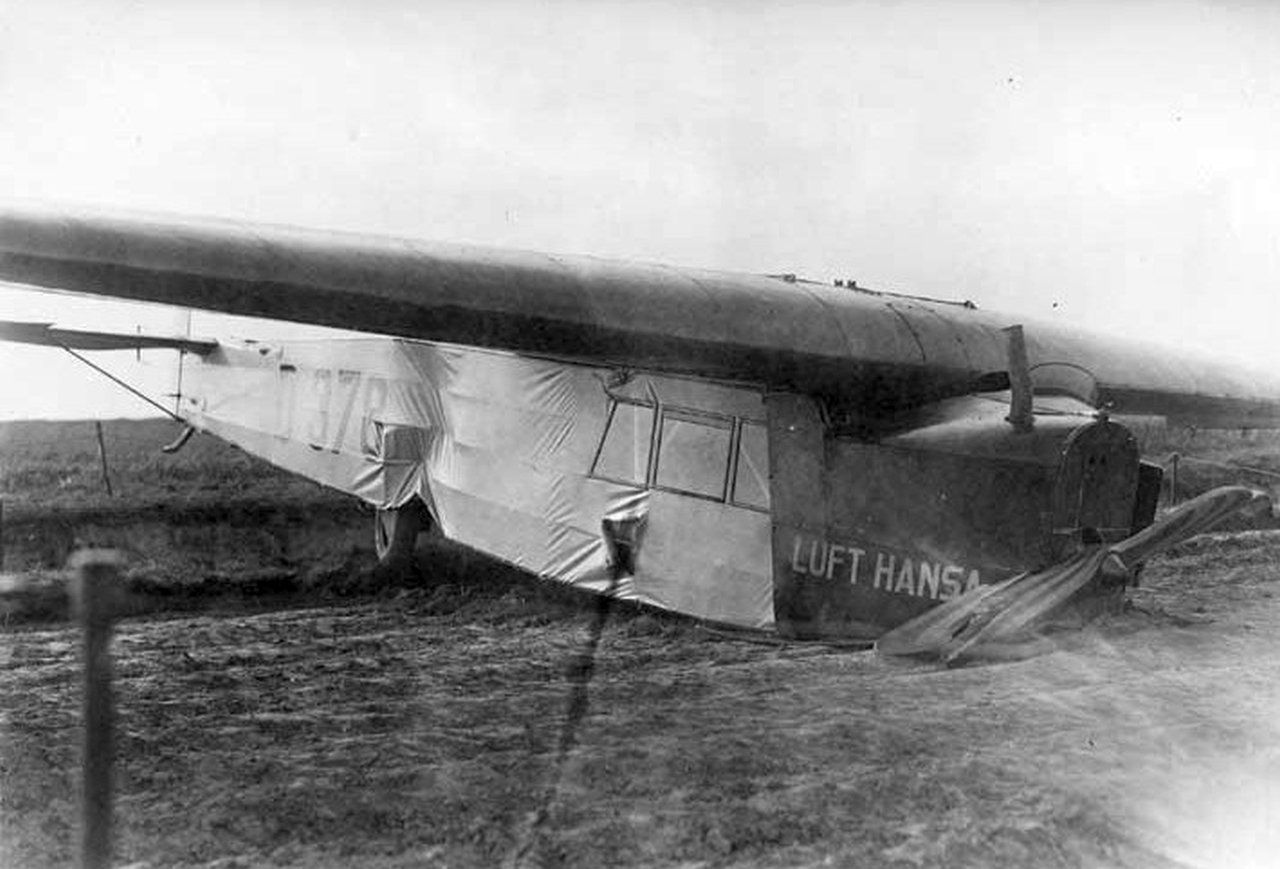

Bad landing of the D 378, Grülich license.
Button
105

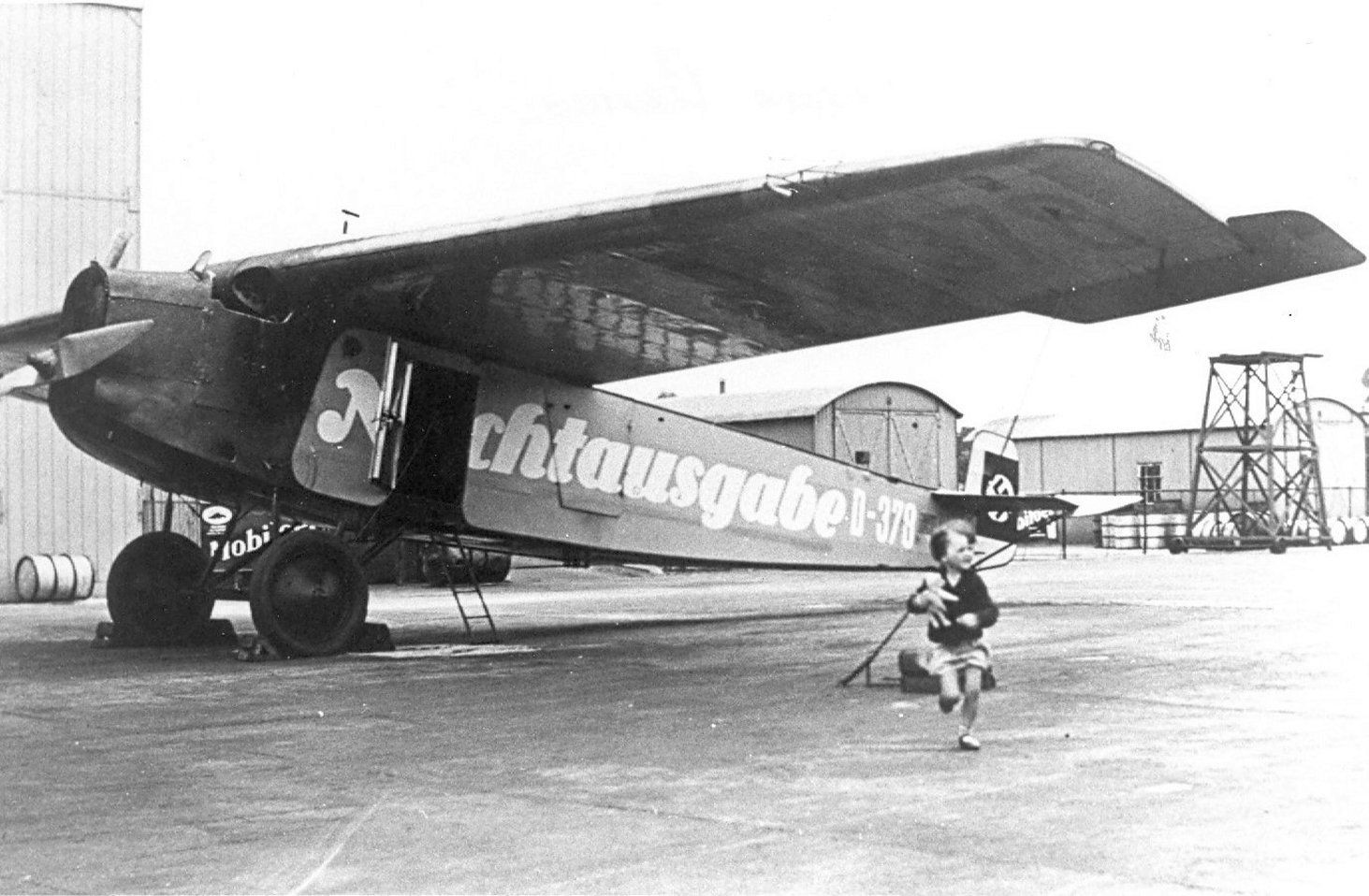

Lufthansa D 378 is used here to transport newspapers, Grülich license.
Button
106

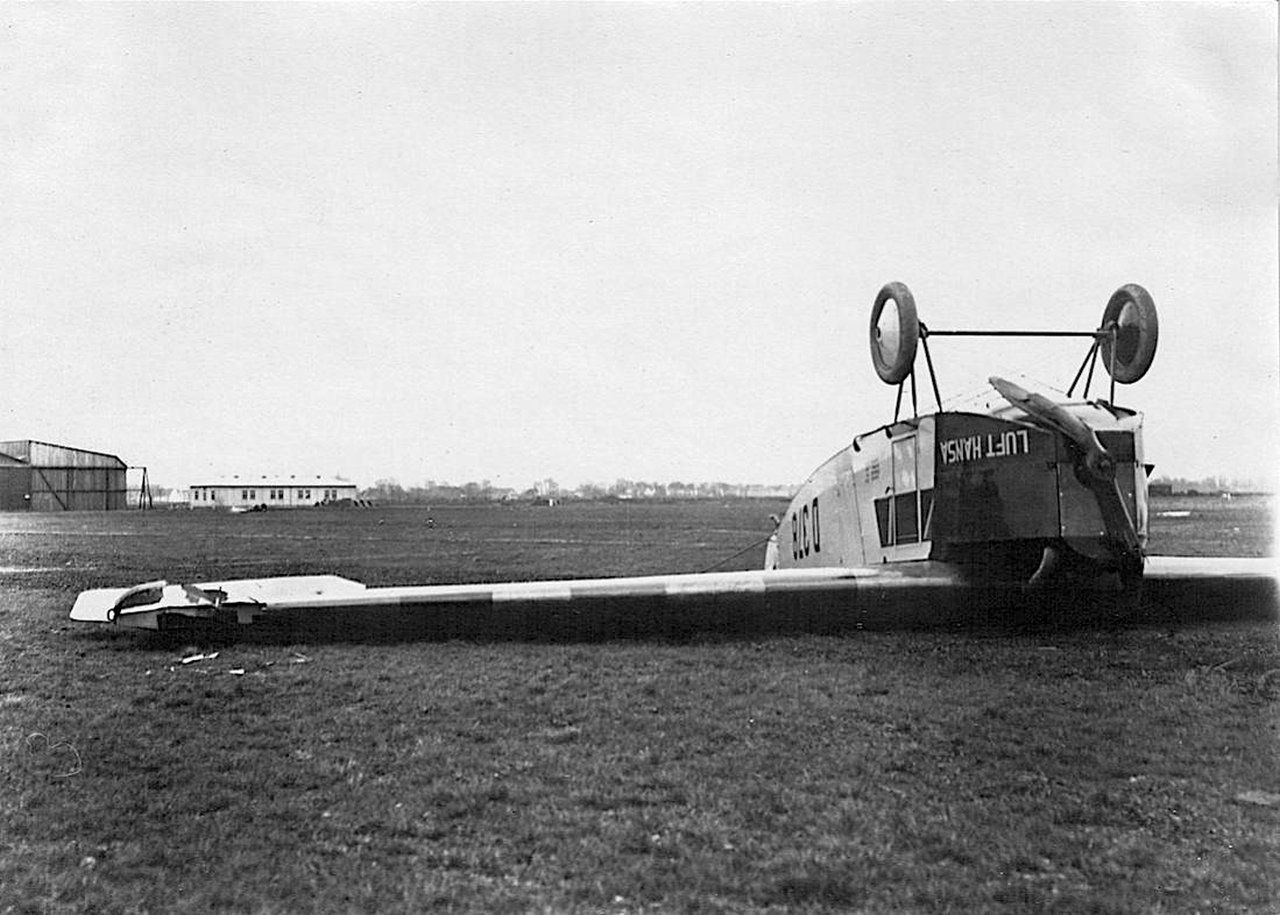

Rollover of the Lufthansa D 378, Grülich license.
Button
107

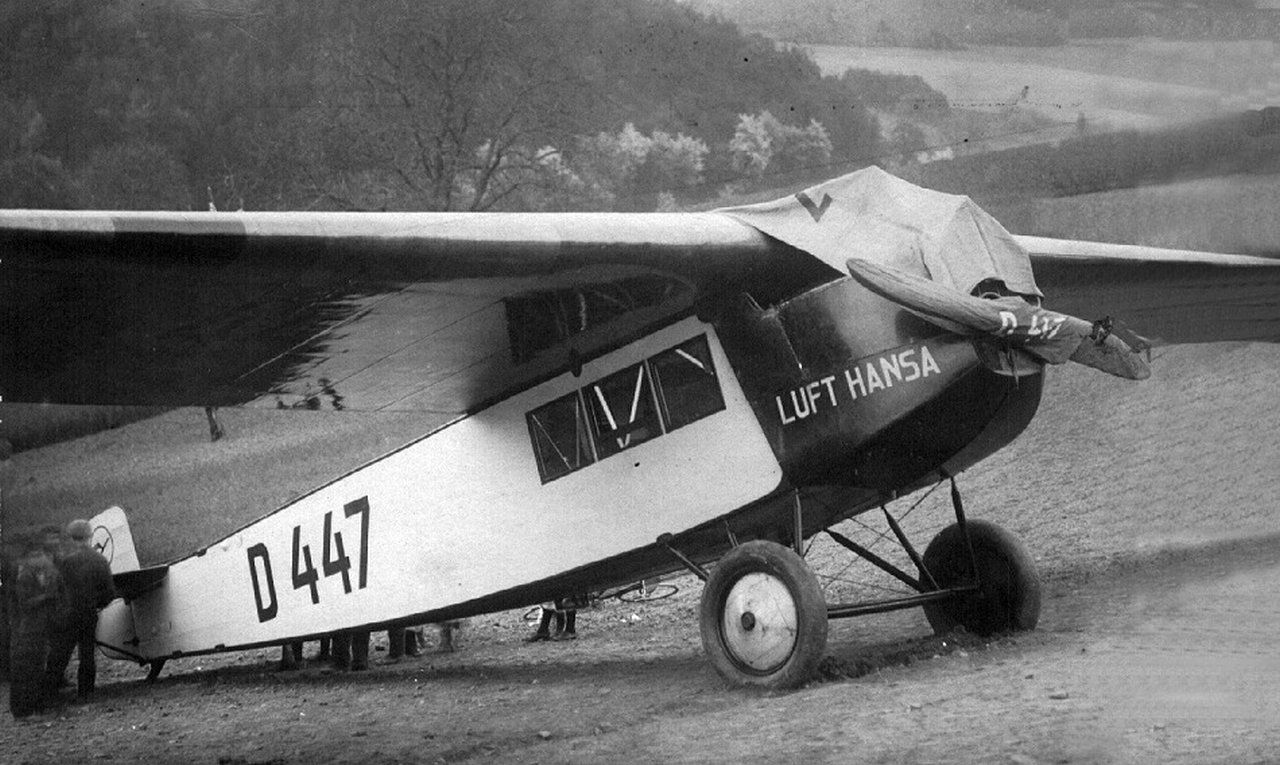

Lufthansa D 447 with cn 1553, Grülich license.
Button
108

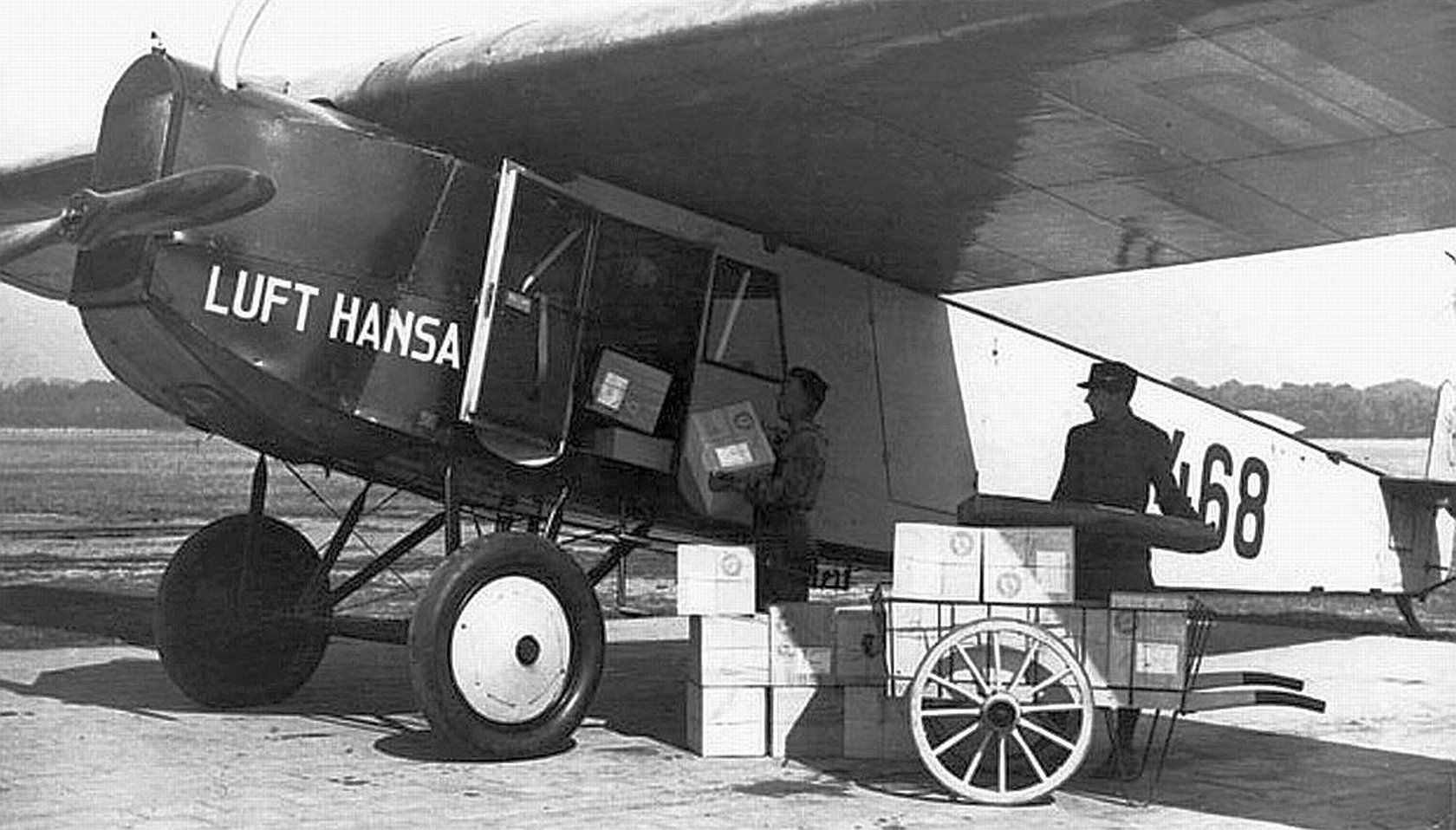

Lufthansa D 468 with cn 1554, Grülich license.
Button
109

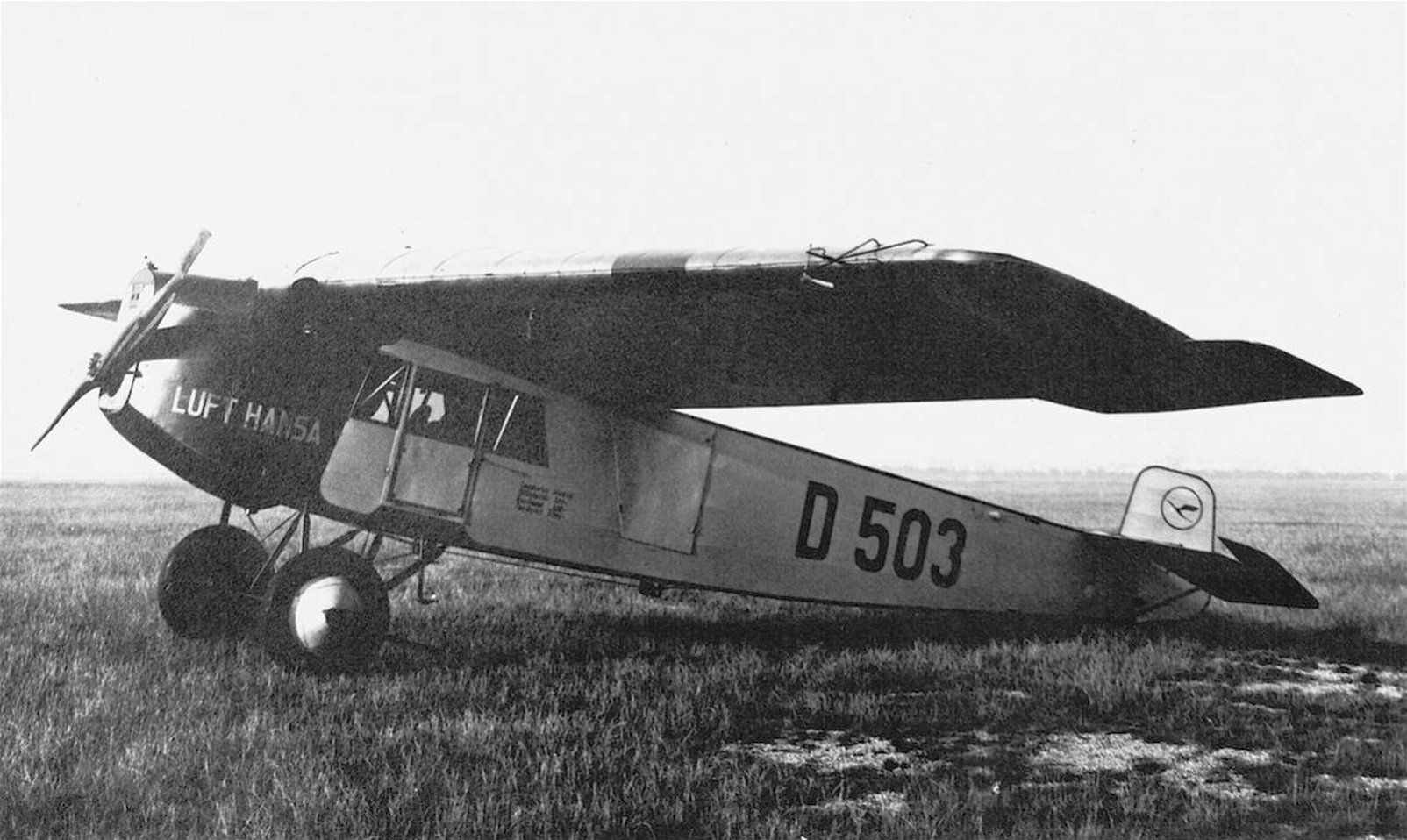

Lufthansa D 503 with cn 1556, Grülich license.
Button
110

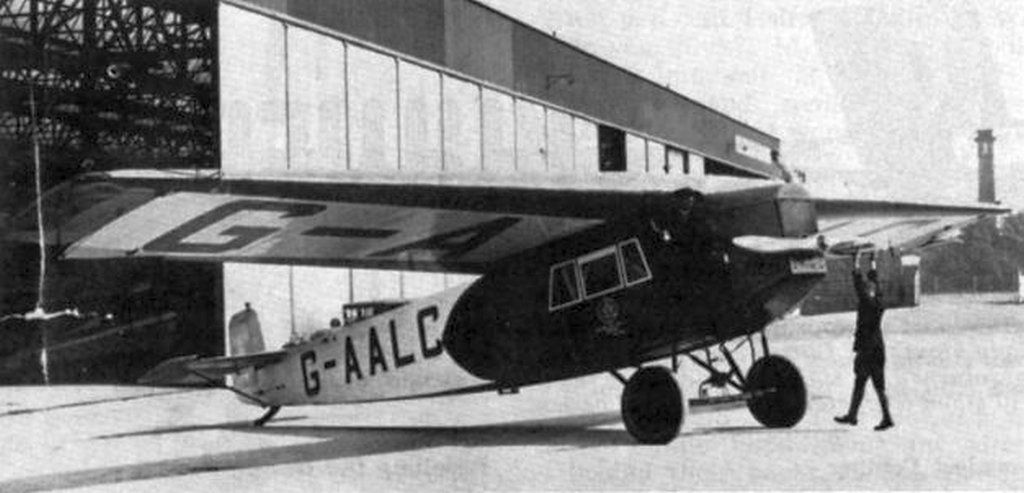

British Airlines G-AALC with cn 1558, , Grülich license.
Button
111

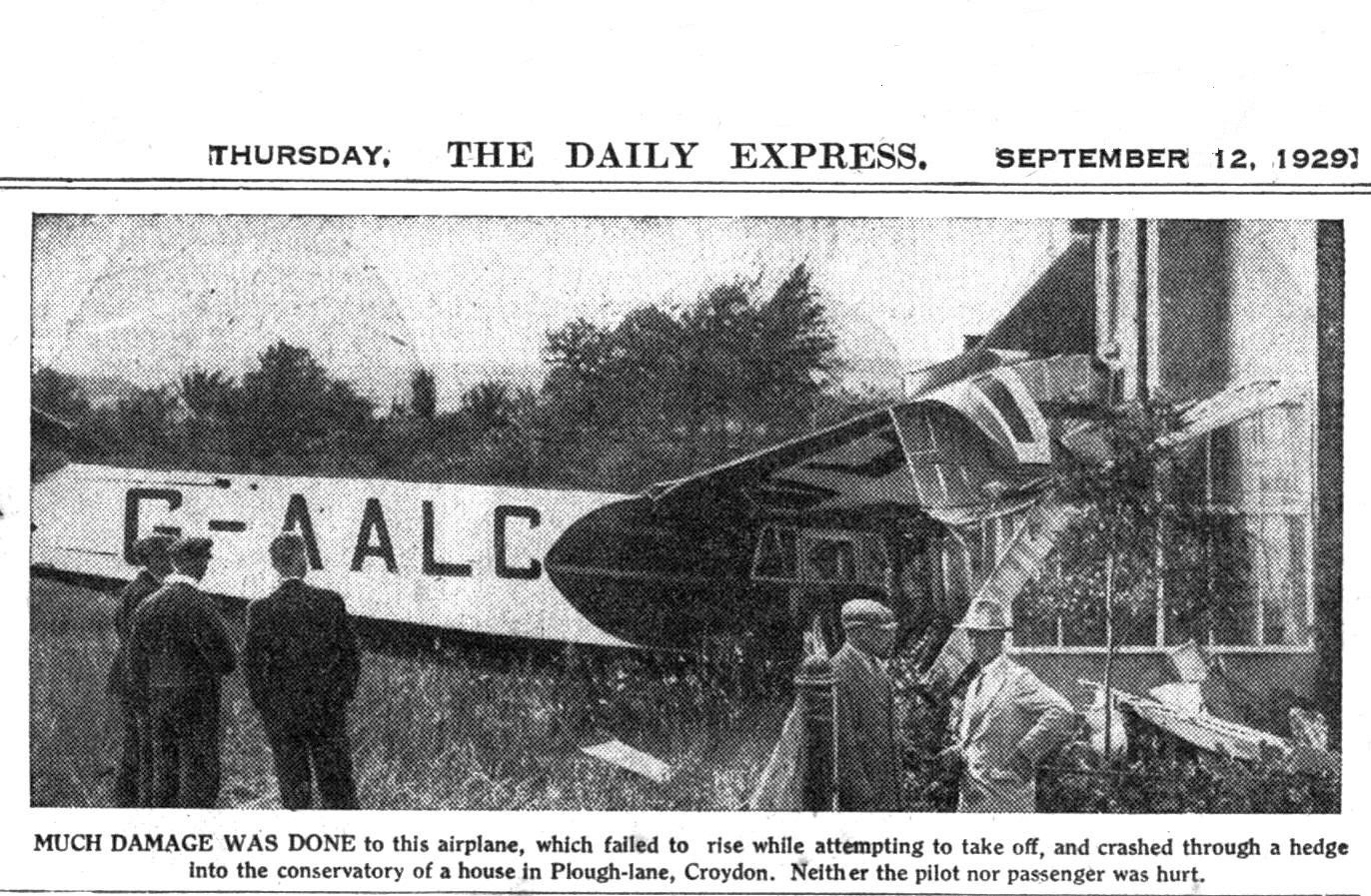

On September 10, 1929 the G-AALC crashed in Croydon near London, Grülich license.
Button
112

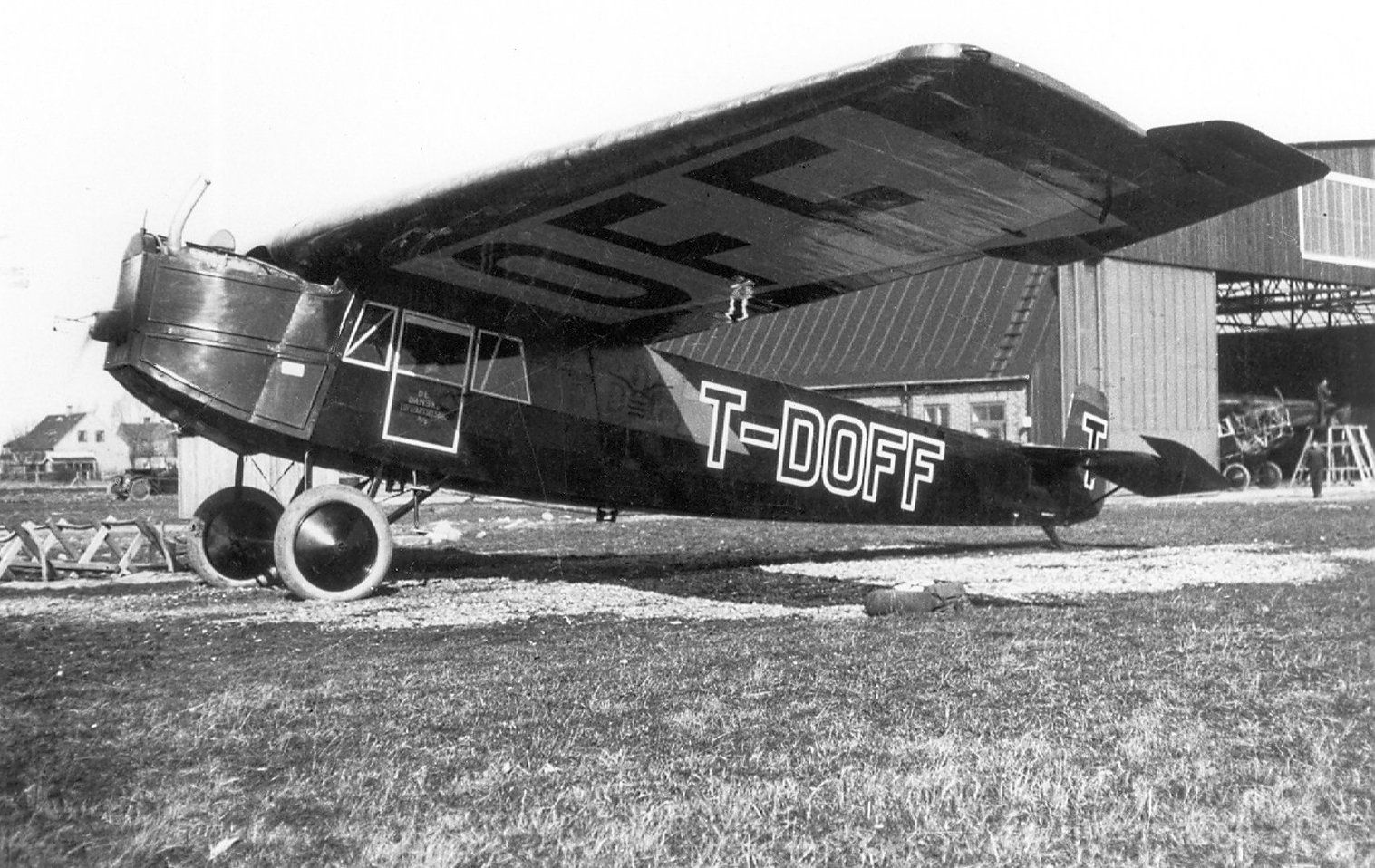

Det Danske Luftfartselskab T-DOFF with cn 1558.
Later this became the G-AALC of British Airlines, Grülich license.
Button
113

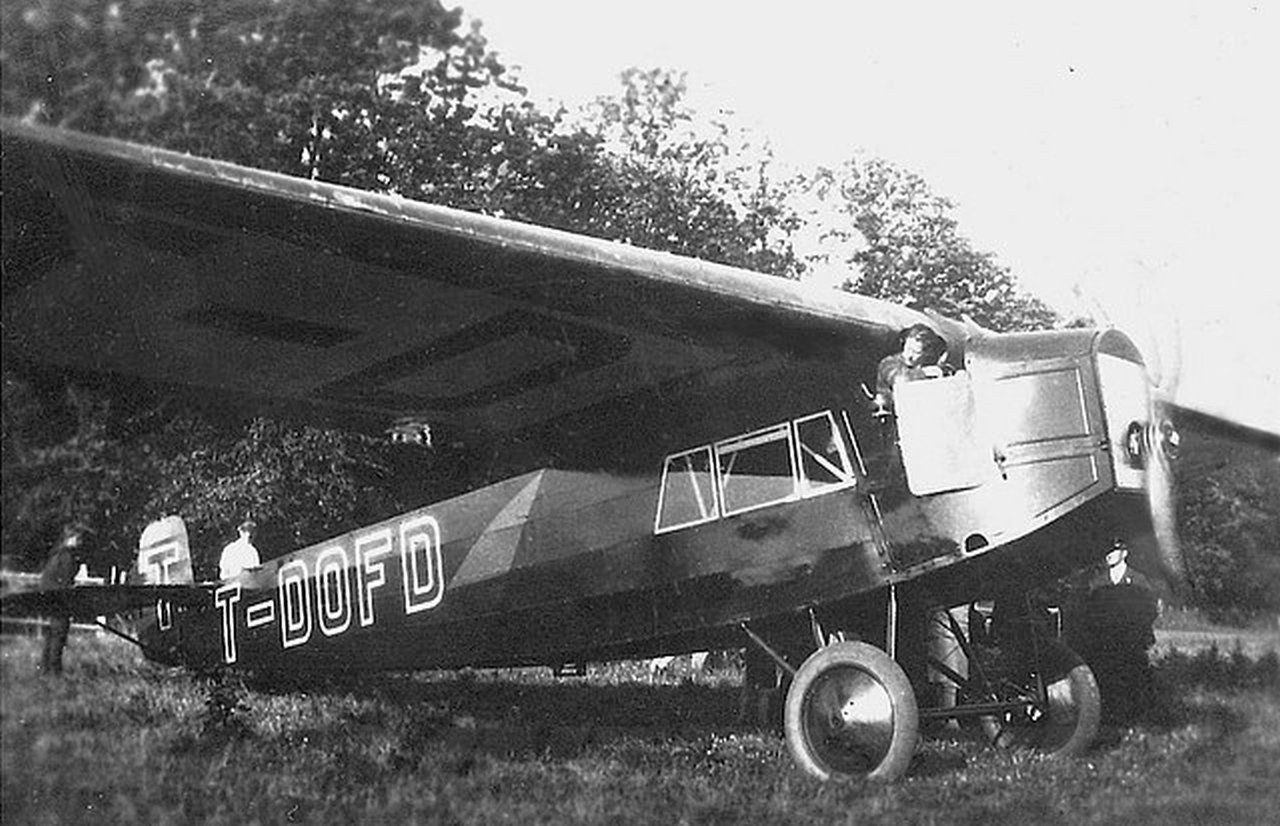

Det Danske Luftfartselskab T-DOFD with cn 1560, Grülich license.
Button
114

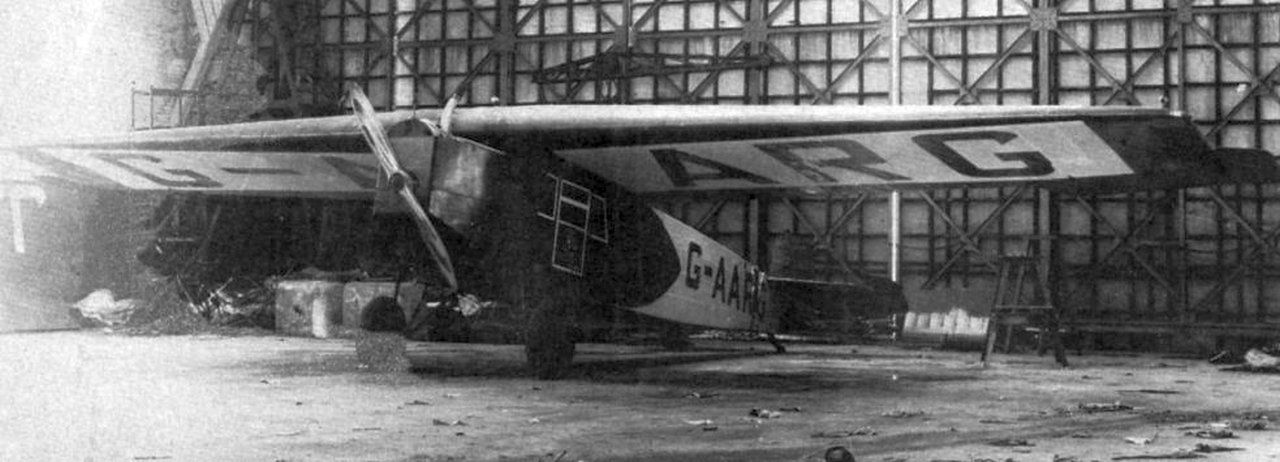

British Airlines G-AARG with cn 1561, Grülich license.
Button
115

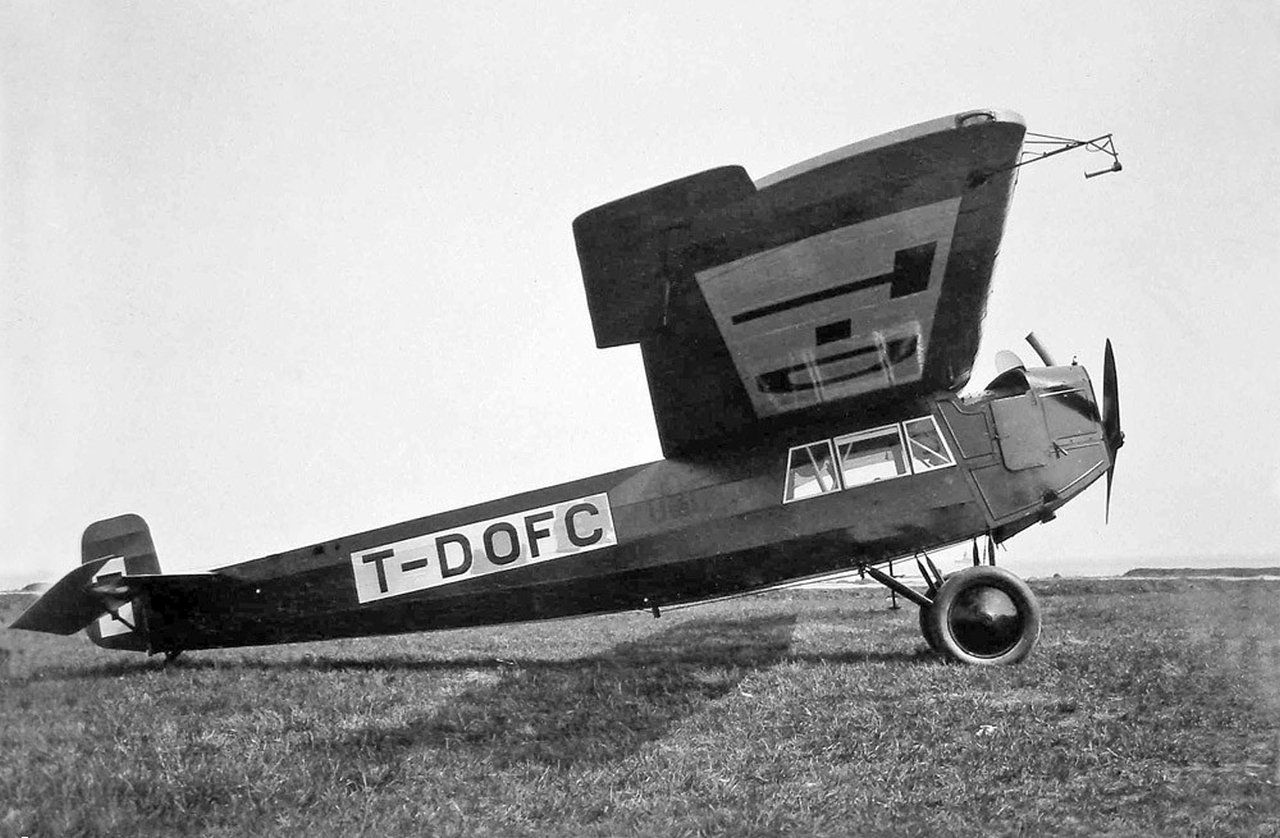

Det Danske Luftfartselskab T-DOFC with cn 156, later this became the G-AARG of British Airlines, Grülich license.
Button
116

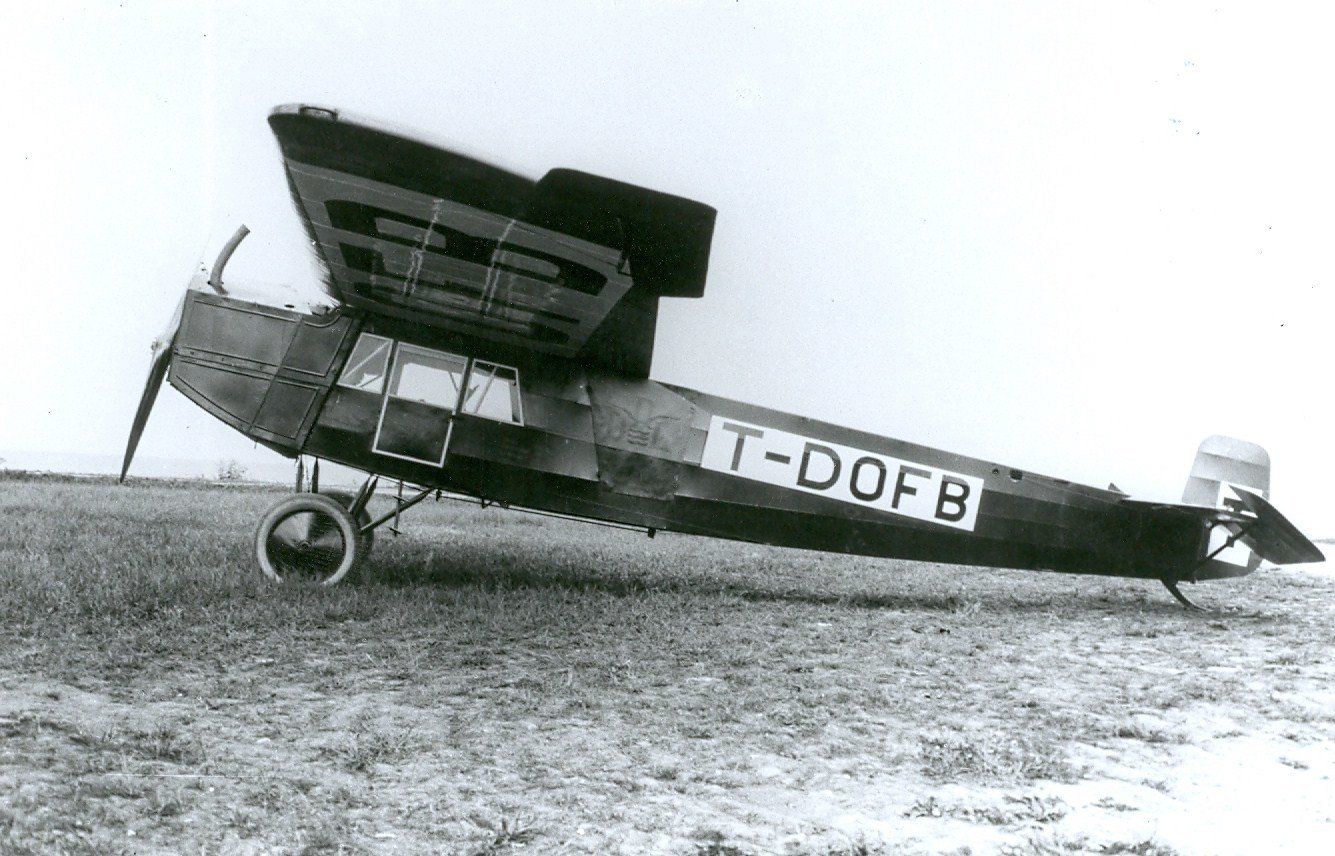

Det Danske Luftfartselskab T-DOFB with cn 1562, Grülich license.
Button
117

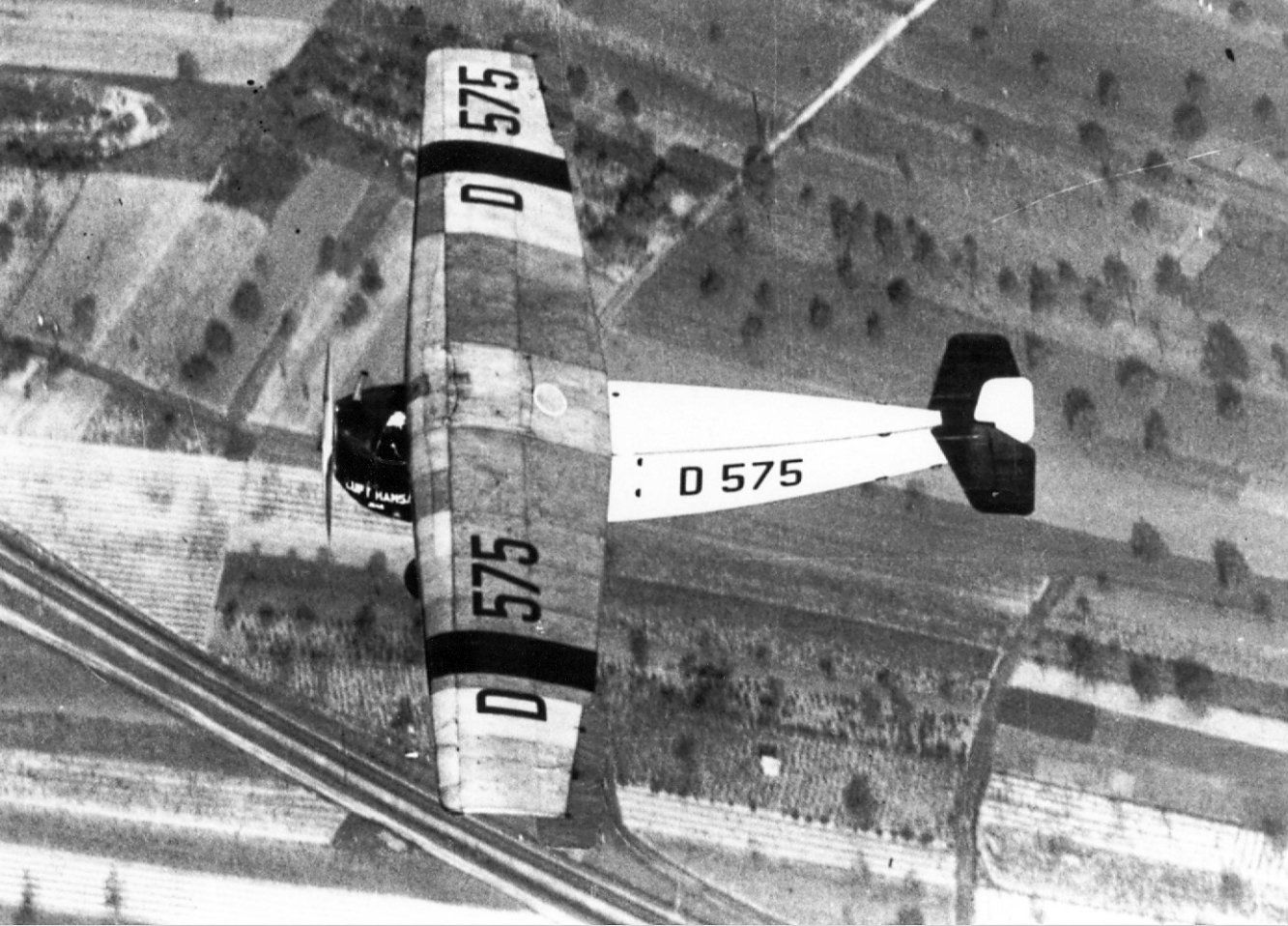

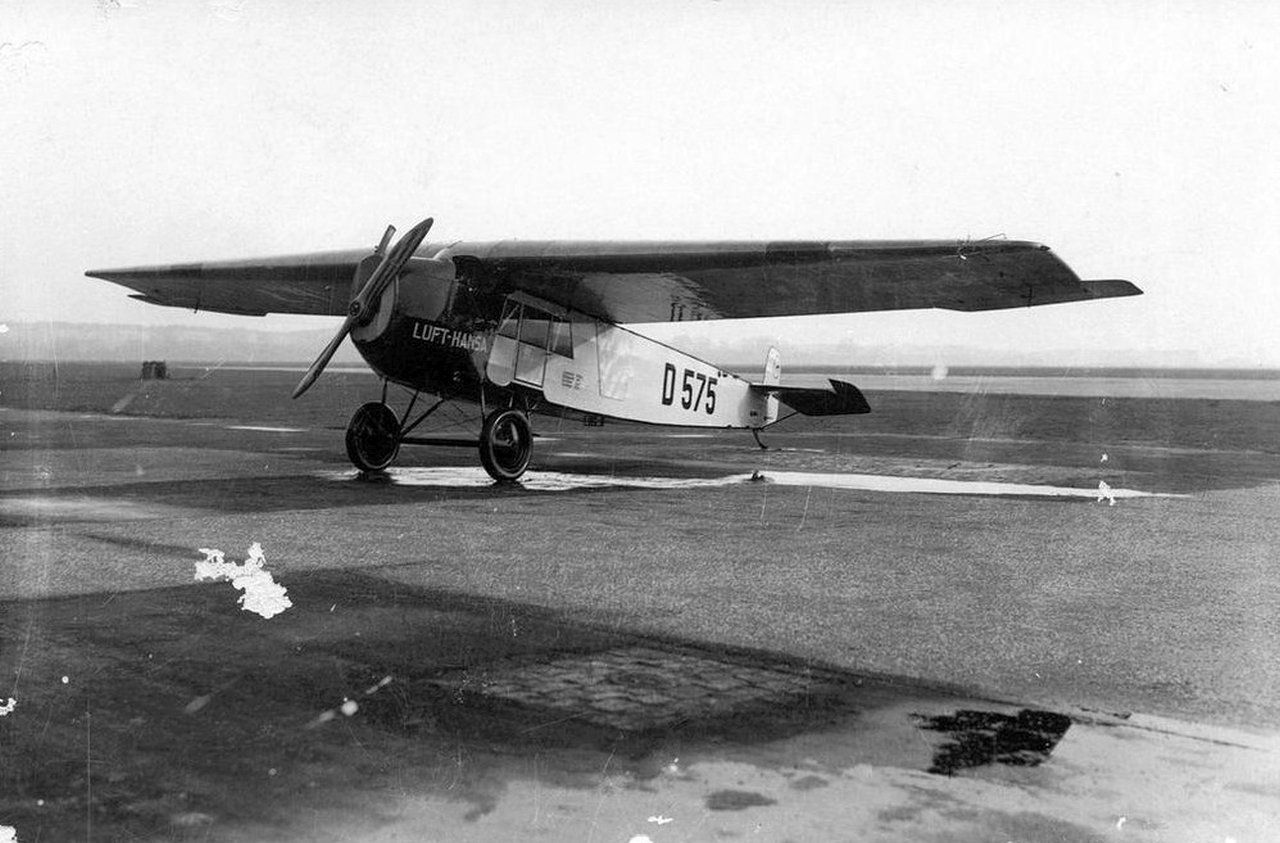

Lufthansa D 575 with cn 1563, Grülich license.
Button
118

Lufthansa D 575 with cn 1563, Grülich license.
Button
119

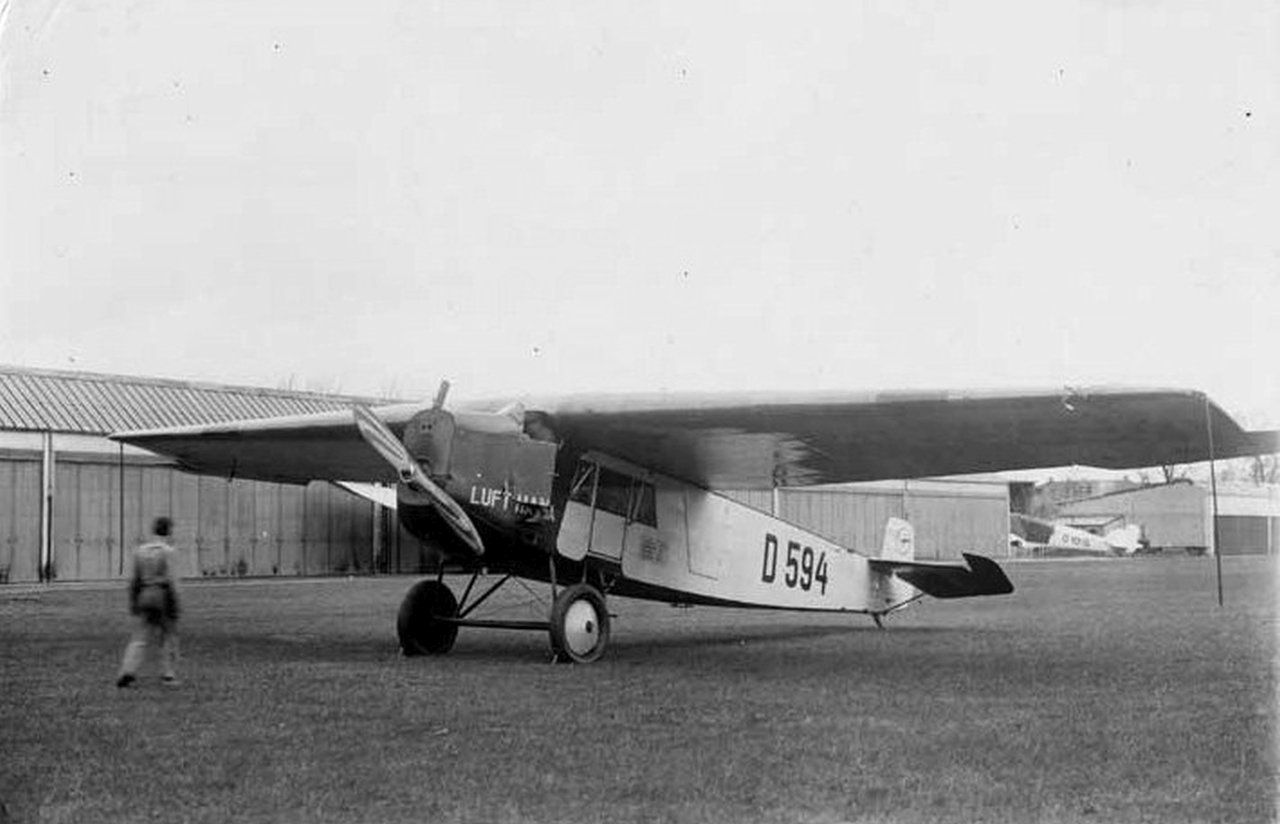

Lufthansa D 594 with cn 1564, Grülich license.
Button
120

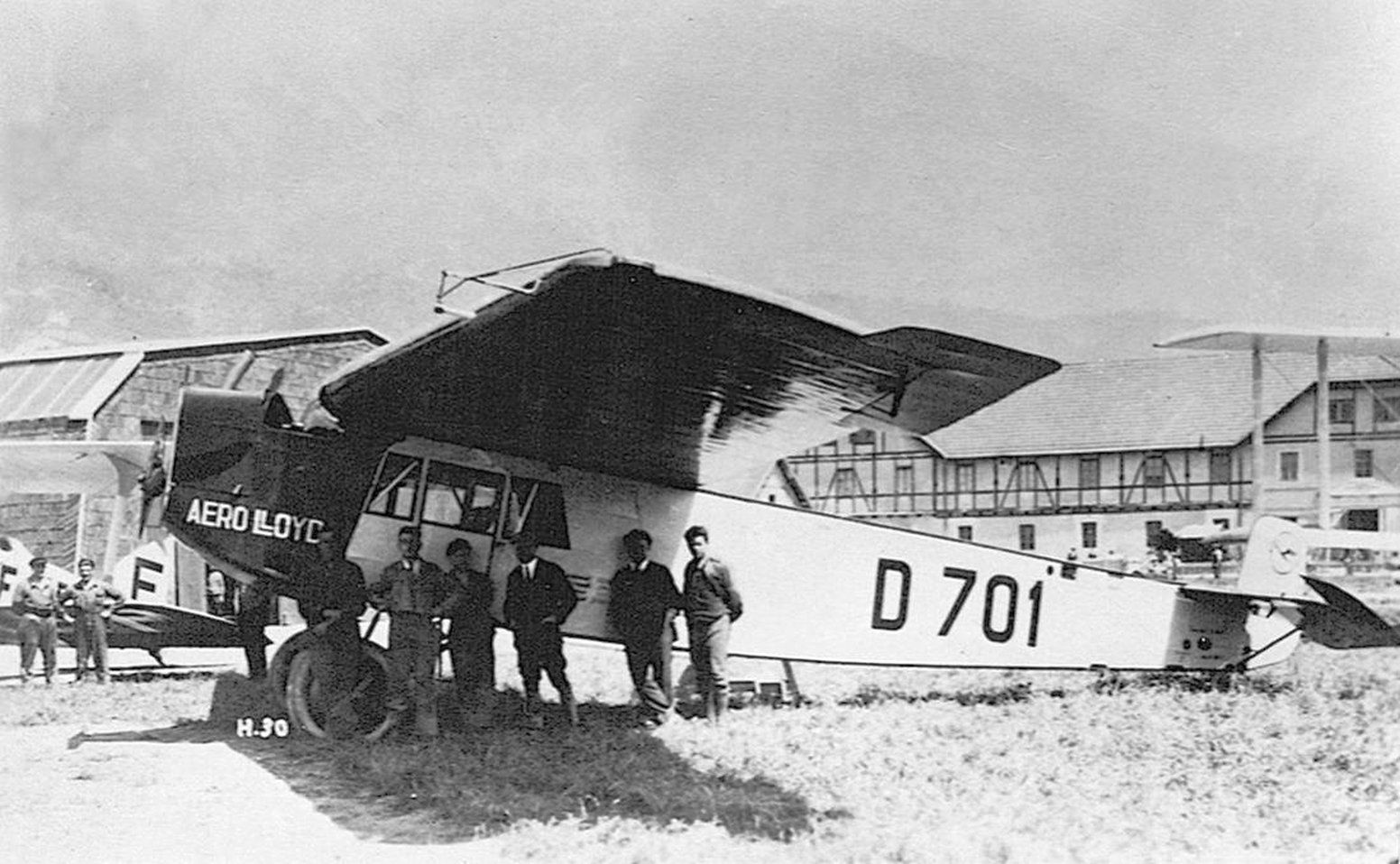

Lufthansa D 701 with cn 1565, Grülich license.
Button
121

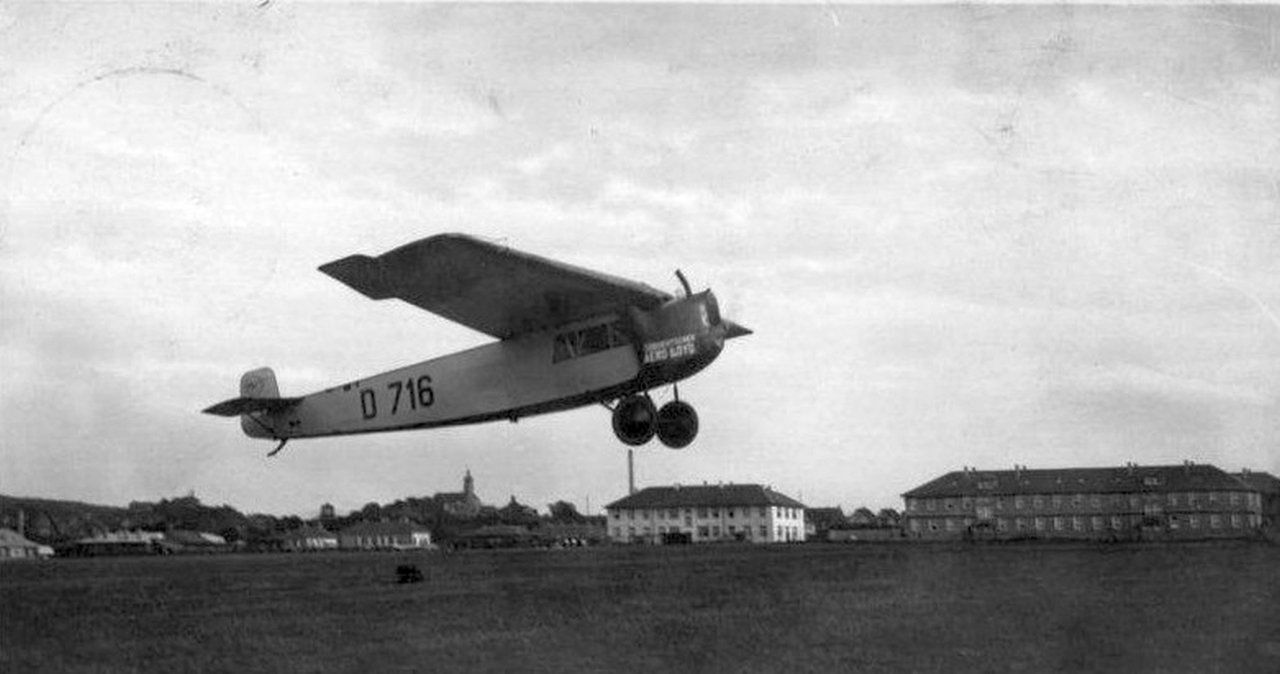

Lufthansa D 716 with cn 1566, Grülich license.
Button
122

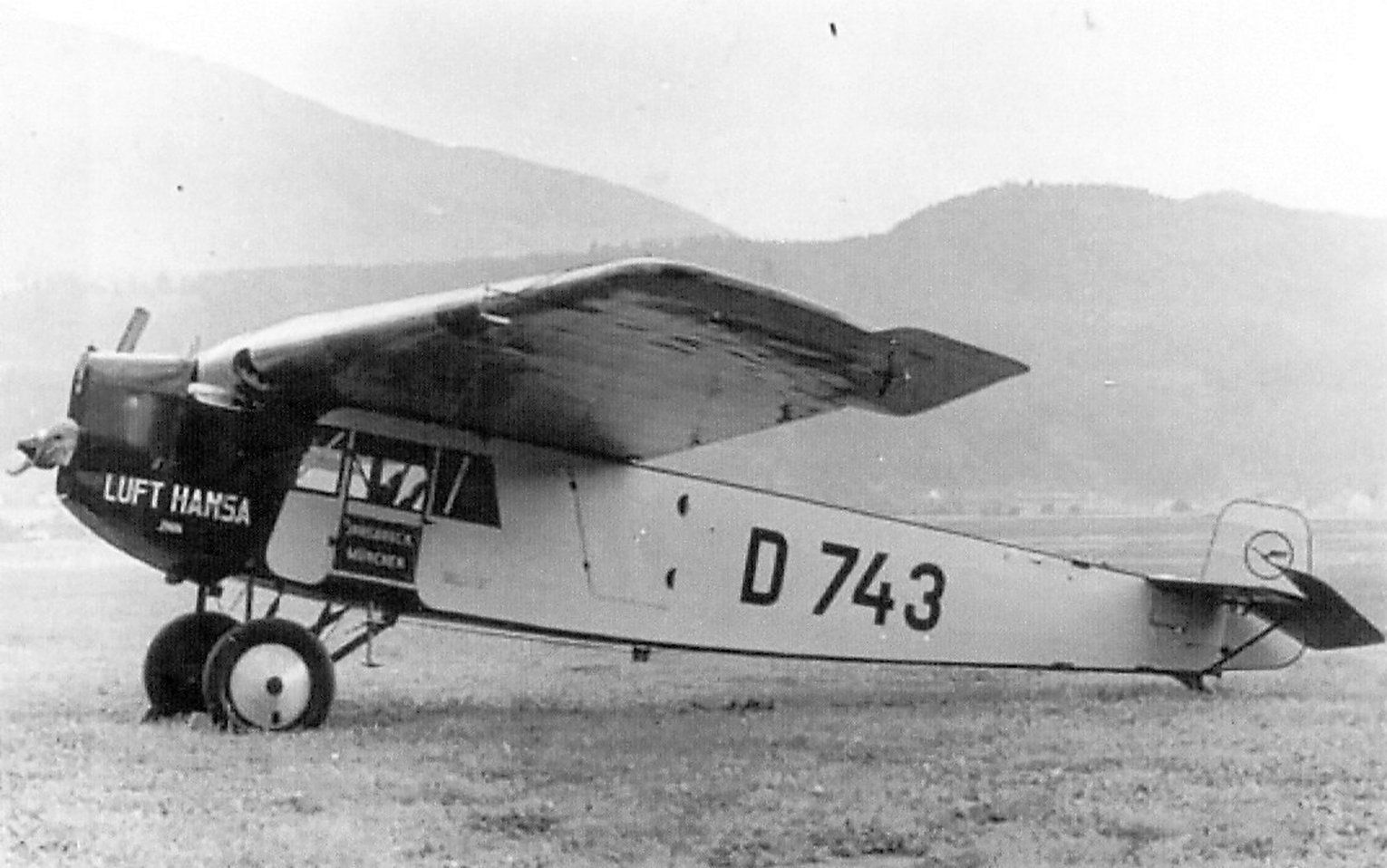

Lufthansa D 743 with cn 1568, Grülich license.
Button
123

Crash of the Lufthansa D 1028 with cn 1569, Grülich license.
